Which AM5 motherboard tier do you actually need?

Most PC builders get stuck on chipset names before they work out what the board physically does differently. On an AMD AM5 motherboard, the chipset mostly decides how many PCIe lanes and fast USB ports you get, and how many of them are PCIe 5.0 or USB4. The CPU socket and the DDR5 memory controller are the same across the range. Entry boards (A620 and B840) are the cheapest way into the platform. They usually have smaller VRM heatsinks, fewer M.2 slots and PCIe 4.0 or slower expansion. They pair nicely with a six or eight core Ryzen that isn't pushed hard, but they are a poor match for a 16 core chip running sustained all-core loads.

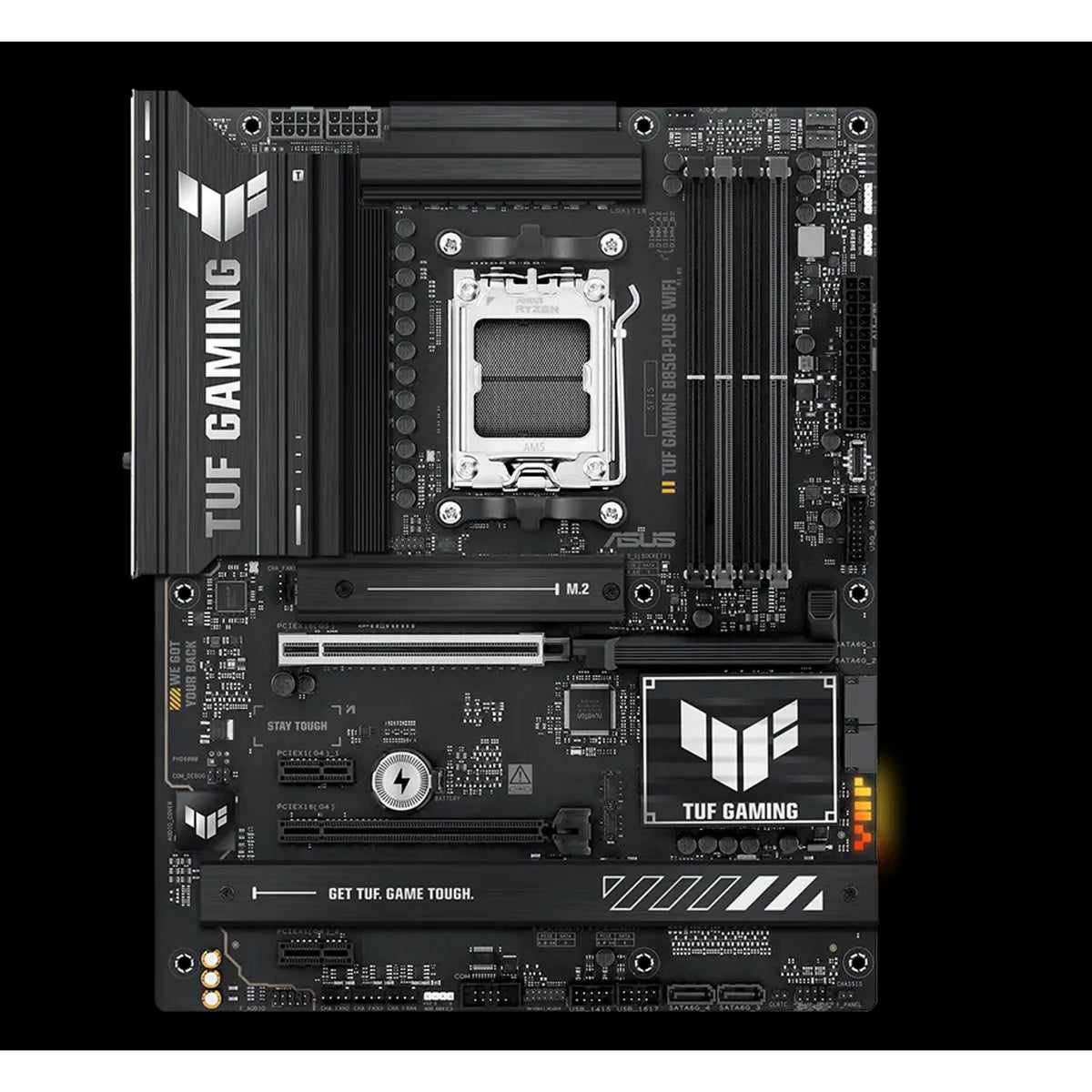

The sweet spot is B650 and B850. A B850 board typically adds PCIe 5.0 for NVMe, better Wi-Fi, more rear USB and a sturdier power stage. The VRM is where it matters most: more phases and higher-rated power stages split the current across more components. Each one runs cooler, voltage stays steadier and the heatsink isn't cooking the capacitors after an hour of rendering. Enthusiast boards (X870, X870E and the older X670E) add more lanes, USB4, extra M.2 slots and heavier VRM cooling. Past the upper-midrange, you are paying for connectivity and finish, not extra gaming frames. If you only run one GPU and one or two SSDs, the extra spend rarely shows up in performance.

Upgrading and technical nuances for AM5

AM5 is DDR5 only, so there is no mixing in old DDR4. Browse Desktop Memory with the platform's sweet spot in mind: 6000 MT/s with tight timings, ideally an EXPO kit. At that speed the memory controller and fabric clock typically run in a 1:1 relationship, which keeps latency low. Faster kits can force a lower ratio and add latency, so the higher number on the box isn't always quicker in games. Corsair Vengeance, Kingston Fury Beast and G.Skill Ripjaws or Flare X5 are the mainstream picks. G.Skill Trident Z5 Neo and similar lines mostly add tuning headroom and nicer heatspreaders.

Four DIMMs are a trap. Populating all four slots stresses the memory controller, and speeds often have to drop to stay stable. Two 16GB, 24GB or 32GB sticks usually beat four smaller ones for stability and speed.

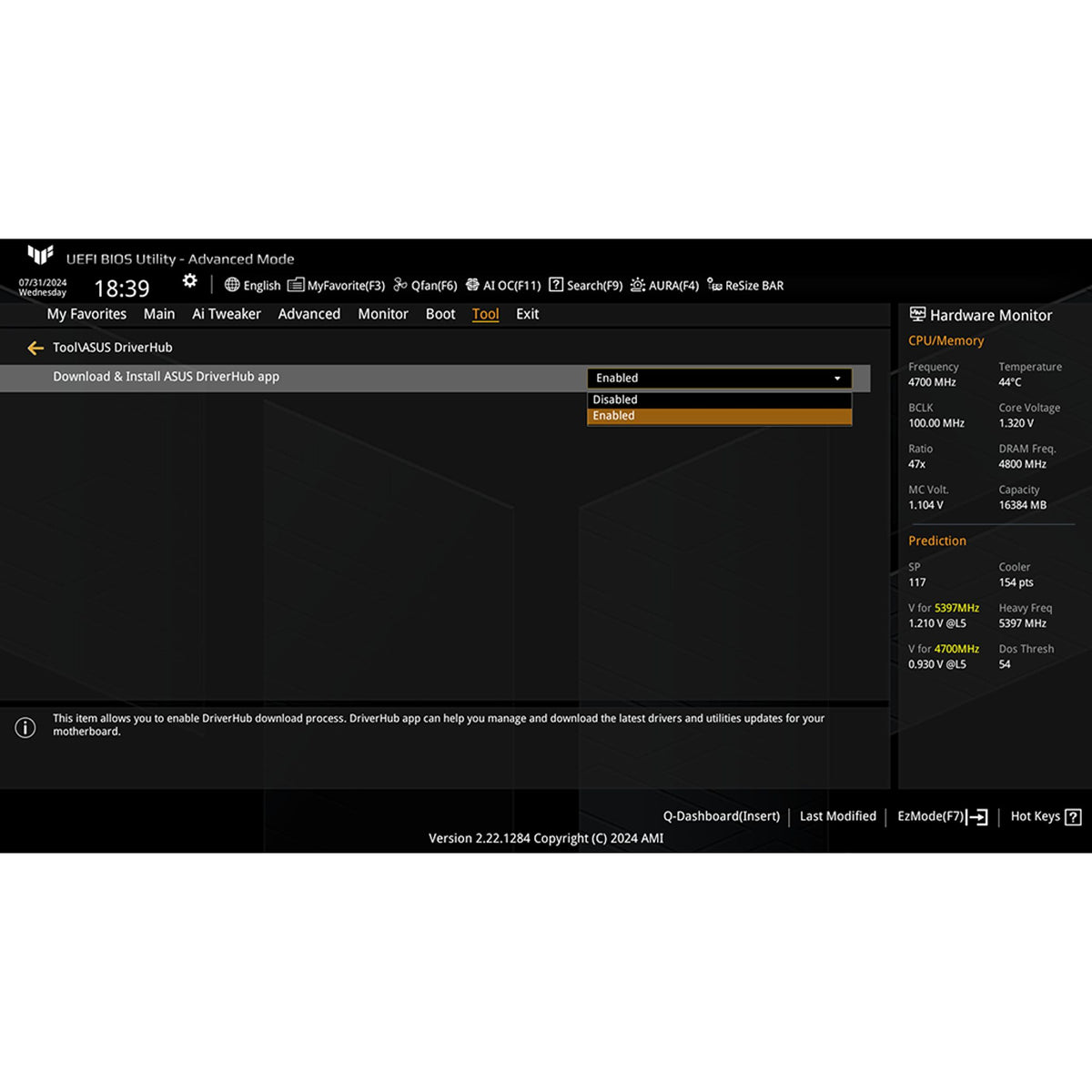

Check the BIOS version before buying. Early AM5 boards can need a BIOS update before they will boot a newer Ryzen. Look for boards with BIOS Flashback, which lets you update from a USB stick with no CPU installed. Match the board to your processor from CPUs & Processors and confirm support on the maker's CPU list.

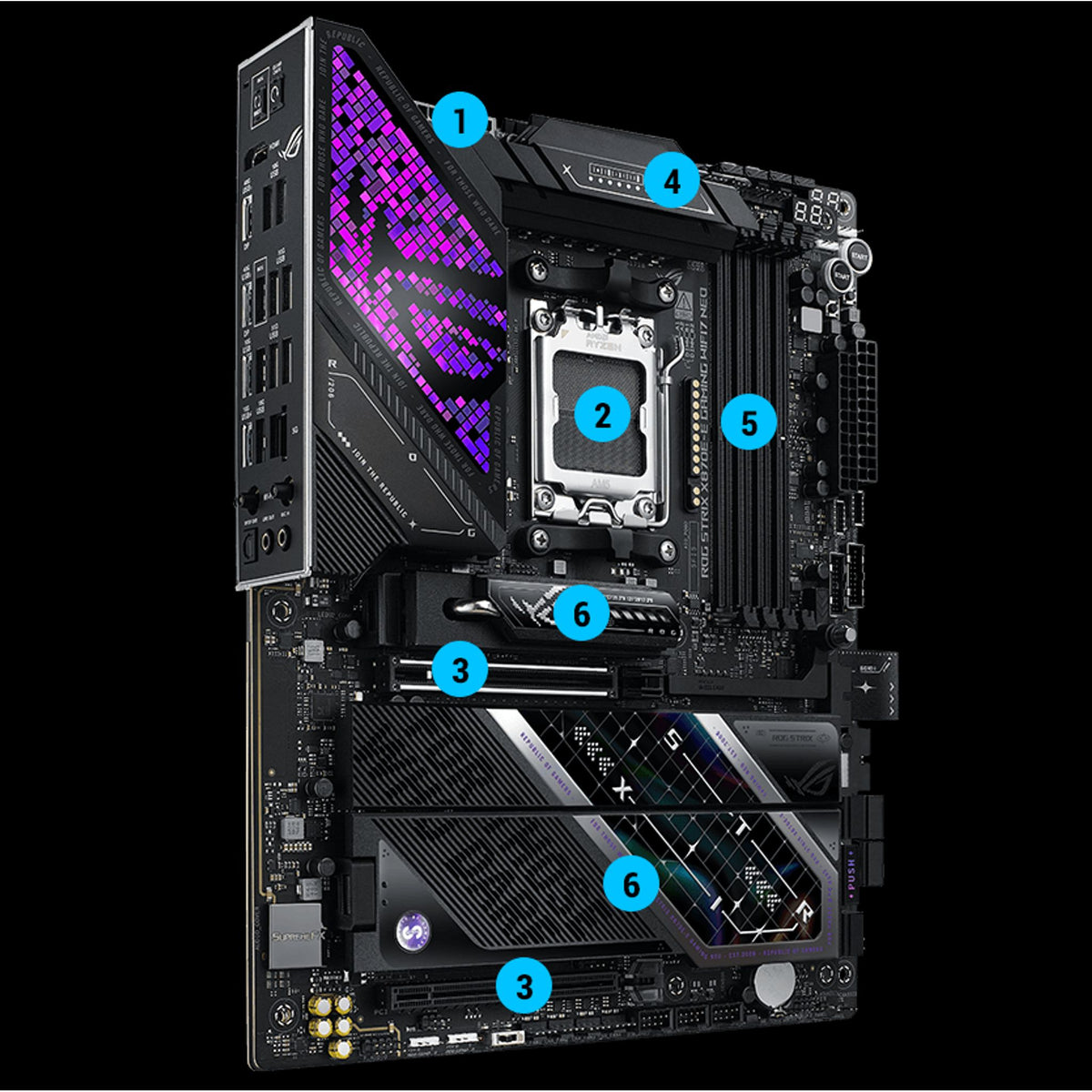

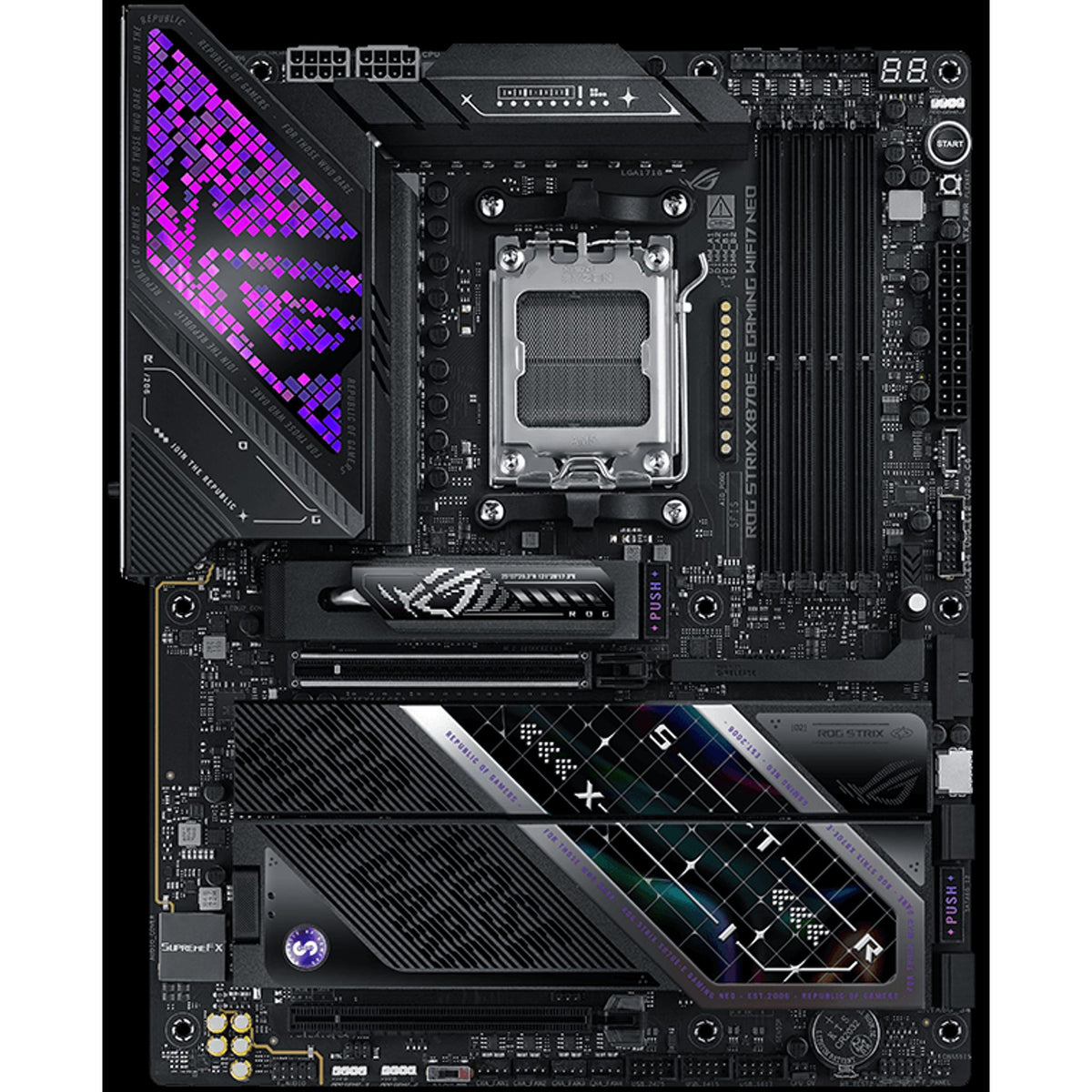

For benchmark boards, look at ASUS TUF Gaming and Prime, MSI MAG Tomahawk and Gigabyte AORUS Elite for the sweet spot. For enthusiast builds, ASUS ROG Strix and Crosshair, MSI MPG Carbon and MEG, Gigabyte AORUS Master and ASRock Taichi bring stronger VRMs, more M.2 slots and better I/O. Browse the full Motherboards range to compare.

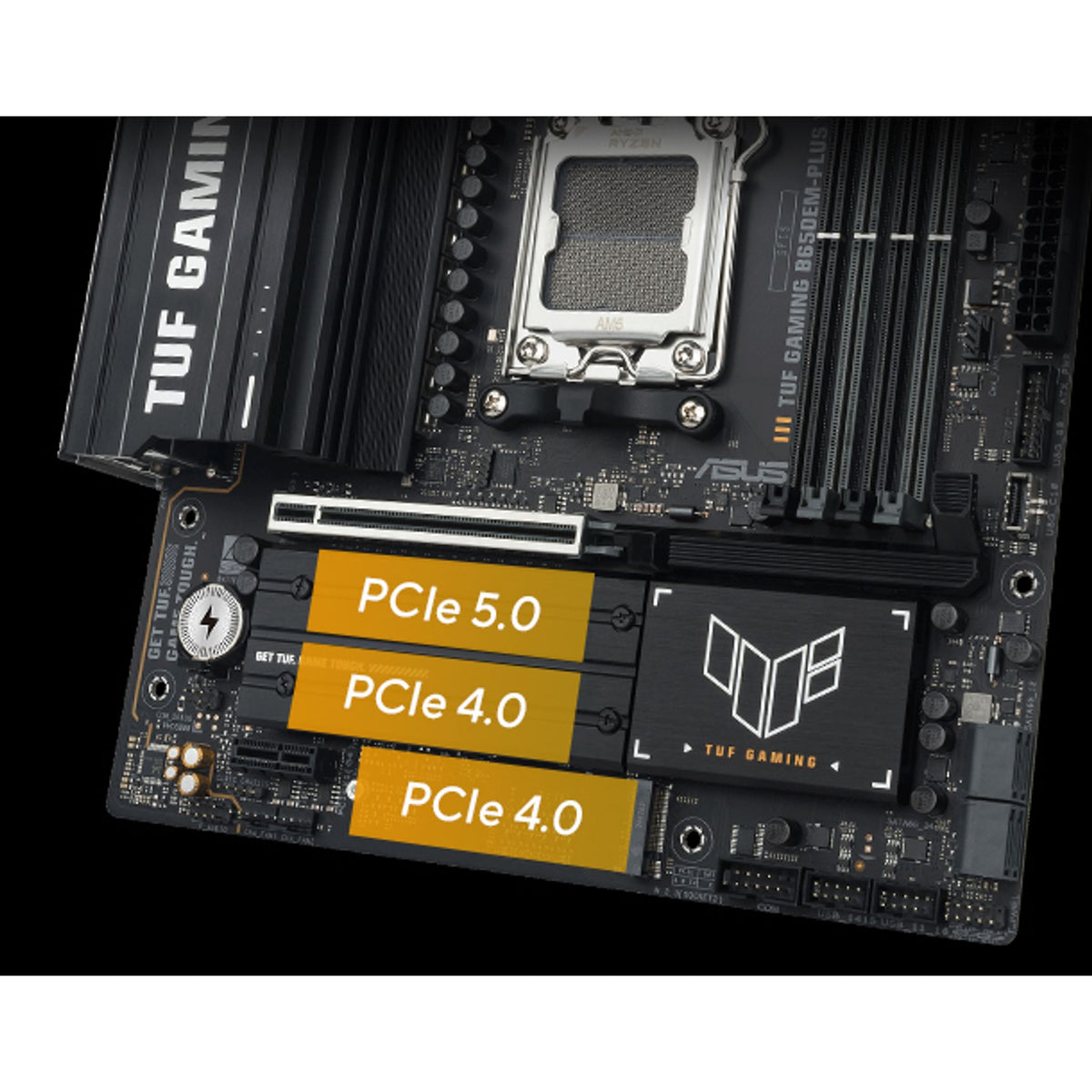

If you want PCIe 5.0 SSD speeds, check the slot layout. Some boards share lanes, so filling a second M.2 slot can drop your GPU slot to x8 or disable SATA ports. A quality PCIe 4.0 drive from the Samsung 990, Crucial T500 or WD_BLACK families is the practical choice for most people, and you can see options in Solid State Drives (SSD).

Practical things to check before you buy

Start with form factor. ATX is the usual choice, but Micro-ATX and Mini-ITX boards trade slots and VRM space for size. Confirm your Computer Cases supports the board, has room for your cooler and has decent airflow over the VRM area.

Cooler clearance is the next one. AM5 uses the same mounting hole spacing as AM4, so many AM4 coolers can fit with the right bracket, but don't assume. Check the manufacturer's AM5 compatibility list. Tower coolers like the Thermalright Peerless Assassin work well, as do AIOs like the Arctic Liquid Freezer series. Big air coolers can block the first RAM slot or the top PCIe slot, so check RAM height and cooler overhang. Browse CPU Cooling and Fans, Heatsinks & Cooling for options.

Power delivery matters too. Your PSU needs the right CPU power connectors. Many boards use an 8-pin, and higher-end boards add a second 4-pin or 8-pin. A current ATX 3.x unit with a native 12V-2x6 connector is the cleanest option for modern GPUs, and the Corsair RMx and Seasonic Focus families are solid starting points in Power Supplies and ATX Power Supply. Pair the board with the right Graphics Cards / GPU and make sure the top slot is reinforced if the card is heavy.

Finally, count your ports. If you need fast external storage, a dock or high-speed networking, check the rear I/O first. Some budget boards skimp on USB-C or ship with older Wi-Fi. If the board lacks what you need, a separate adapter from Networking or a TP-Link Wi-Fi card is an easy fix. Don't forget Cables & Connectors for fan headers, SATA and front-panel extras, and if you'd rather skip the build, there are prebuilt Computers too.

Brands and local warranty

ASUS, MSI, Gigabyte and ASRock are the main names for AM5 boards, and all four have solid track records. ASUS and MSI tend to offer the most polished BIOS and software, Gigabyte is strong on value, and ASRock often packs in more features per dollar.

Buying through an Australian retailer matters because Australian Consumer Law gives you rights regardless of where the product shipped from. Local warranty channels mean faster RMA turnaround, no international shipping on a heavy motherboard and no fights about grey imports. If a board has a bent socket pin, a dead memory slot or a BIOS problem, local support saves weeks. Keep your invoice and serial number.

Frequently asked questions

Do I need an X870 board, or is B850 enough?

For most gaming and general builds, B850 is plenty. X870 and X870E mainly add connectivity, such as more USB4 and extra PCIe lanes. Unless you need lots of M.2 drives, multiple expansion cards or very high-end I/O, the extra cost won't change your frame rates.

What RAM speed should I buy for an AM5 motherboard?

DDR5-6000 with a low CL, in an EXPO kit, is the sweet spot for most Ryzen chips. It balances bandwidth and latency while keeping the memory controller in an efficient mode. Faster kits can work but need more tuning and don't always deliver measurable gains.

Will my old AM4 cooler fit?

Often yes, but not always. The mounting hole spacing is the same, though the retention hardware differs. Check the cooler maker's AM5 compatibility list before assuming.

Can I use DDR4 on an AM5 board?

No. AM5 supports DDR5 only, and the slots are physically keyed differently, so DDR4 will not fit.

Do I need a PCIe 5.0 SSD?

Probably not. Real-world load times and everyday use barely change over a good PCIe 4.0 drive, and PCIe 5.0 drives run hotter and cost more. They make sense for heavy sustained transfers, provided your board has the right slot and a good heatsink.
