Which laptop docking station do you actually need?

Most PC builders think of a dock as a glorified USB hub, but the real difference between tiers is what happens to the data lanes behind the single cable. Entry-level USB-C docks, usually in the $80 to $150 range, rely on DisplayPort Alt Mode. The laptop gives the dock a fixed pool of high-speed lanes. When two or more are used for video, USB drops to slower speeds, and you typically get one 4K display at 60Hz, or two at lower resolutions if the dock and laptop support MST. Power delivery tends to sit at 65W to 100W, which suits ultrabooks but struggles with anything hungrier.

The sweet spot is a certified Thunderbolt 4 or USB4 dock. It tunnels PCIe and DisplayPort over a 40Gbps link, so you can run dual 4K60 Monitors while still getting full-speed USB, 2.5GbE and card readers. These docks usually deliver 90W to 100W of charging and have better controllers and thermal design. Diminishing returns hit hard beyond this unless you have a specific workload.

The enthusiast tier is Thunderbolt 5, with 80Gbps each way and up to 120Gbps in a display-heavy boost mode. That matters for dual 4K at 144Hz, a single 8K panel, or an external NVMe array that needs bandwidth. If your laptop only has Thunderbolt 4 ports, a Thunderbolt 5 dock will simply run at 40Gbps, so you are paying for headroom you can't use yet.

Upgrading and technical nuances

The biggest compatibility trap is DisplayLink versus native video. DisplayLink docks, such as the Plugable and Dell DisplayLink families, compress the picture over ordinary USB and rebuild it on the dock. They are great for adding three or four screens to a basic laptop, but they use CPU time, need drivers, and can stumble with HDCP-protected video or fast motion. Native DisplayPort or Thunderbolt docks have no such overhead, which is why they feel instant.

Apple Silicon is the other classic gotcha. Base M-series MacBooks only drive one external display natively, and MST splitting does not work on macOS. A cheap dual-HDMI dock will mirror rather than extend. You either step up to a Pro or Max chip or use a DisplayLink dock with its driver.

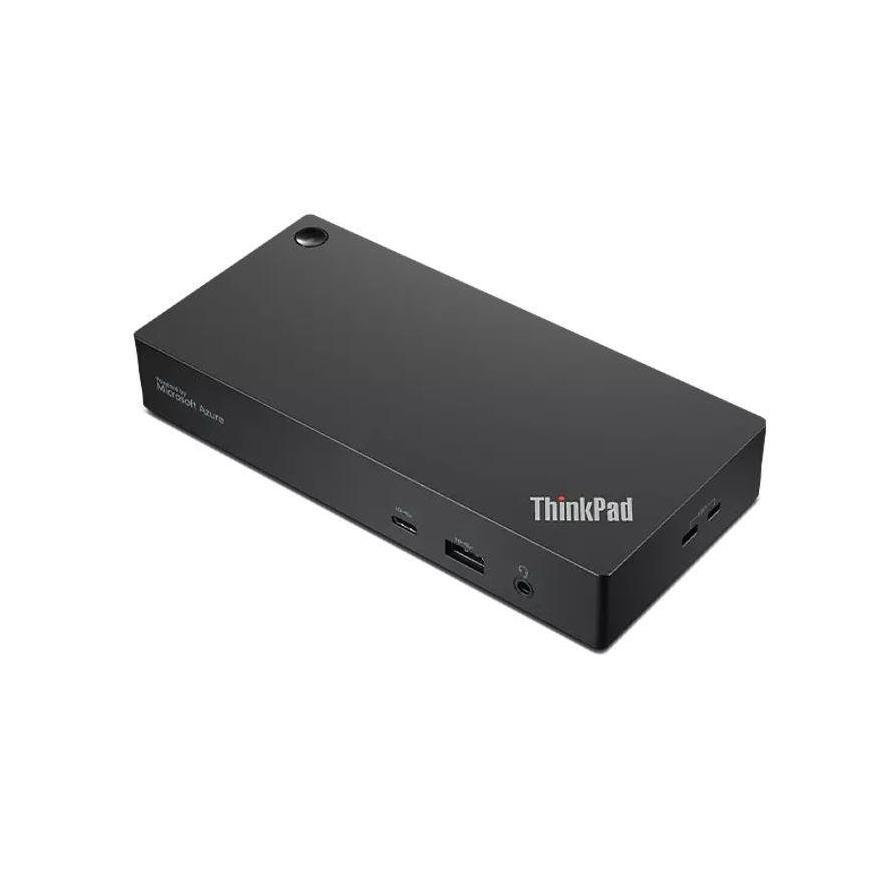

For Thunderbolt 4, look at the CalDigit TS series, Kensington SD5000 series, Belkin Connect Pro and Plugable TBT4 docks. If you want a mainstream pick with fewer frills, Anker's Prime and 500-series docks cover the middle ground well. Corporate fleets are often best served by matching the laptop maker, such as Dell's WD-series, Lenovo's ThinkPad docks or HP's Thunderbolt docks, since firmware, MAC-address passthrough and BIOS integration work better in managed environments.

Wired networking is also worth thinking about. A 2.5GbE port is cheap insurance today, especially if your home or office has a 2.5G switch from Networking or a TP-Link router. Gigabit-only docks bottleneck quickly when you're pulling large files from a NAS.

If you're moving big project files, remember that a dock only passes through what the laptop's port gives it. A fast PCIe 4.0 external enclosure loaded with a drive from Solid State Drives (SSD) can saturate a 40Gbps link, but it will crawl on a USB 3.0 dock with shared bandwidth.

Practical things to check before buying

Start with wattage. A thin-and-light laptop is fine on 65W to 96W, but a gaming laptop or mobile workstation pulling 180W or more will not charge properly over USB-C. It will run slowly or even drain under load. Those machines are better off with their own barrel-plug charger and a dock used for data only. Newer USB PD 3.1 extended-power docks can supply more, but only if the laptop supports it.

Check the port on the laptop itself. A USB-C port with no Thunderbolt or DisplayPort logo may not carry video at all. Look for the lightning bolt, the DP symbol or a USB4 mark in the spec sheet, not just the shape of the connector.

Cable quality matters more than people think. A 40Gbps cable should be certified and short, usually 0.8m or less if passive. Cheap charging cables can limit speed to 480Mbps or fail to carry video. If you need to replace one, browse Cables & Connectors for properly rated Thunderbolt or USB4 leads. Equally, check your monitor connections: a DisplayPort 1.4 or HDMI 2.1 input is needed for high refresh rates, and the dock's HDMI ports often cap at HDMI 2.0.

Thermals are another detail. Docks with metal shells that act as a heatsink stay stable under sustained loads, while sealed plastic units can throttle when transferring data and charging simultaneously. Don't bury it behind a monitor stand with no airflow. If you also use a desktop with a Power Supplies unit and Computer Cases nearby, keep the dock away from hot exhaust.

Finally, count the ports you really use. Keyboard, mouse, webcam, headset, SD card and a spare for USB drives add up fast. A dock with a dedicated upstream Thunderbolt port and two downstream ports lets you daisy-chain extra storage or displays later.

Brands and local warranty

Reputable names in this category include CalDigit, Kensington, Belkin, Anker, Plugable, StarTech, Ugreen and j5create, plus laptop makers like Dell, Lenovo and HP for their own proprietary and Thunderbolt docks. CalDigit and Kensington are generally the benchmark for build quality and firmware updates, while Anker and Ugreen usually win on value.

Local warranty matters because docks are complex devices that run hot, deal with high-power charging and often fail in subtle ways, such as flaky display output or a port that stops negotiating power. Under Australian Consumer Law you're entitled to a remedy for faulty goods regardless of what a manufacturer says, but dealing with a local reseller or authorised distributor is faster than shipping something overseas. Grey imports can also ship with the wrong plug or lack firmware support, so check the seller before checking out.

Frequently asked questions

Will any USB-C dock work with my laptop?

Not necessarily. USB-C is just the connector shape. For video and full-speed data you need a port that supports DisplayPort Alt Mode, USB4 or Thunderbolt, and the laptop's charging profile has to match what the dock delivers.

Is Thunderbolt 4 worth the extra over a standard USB-C dock?

If you run two monitors, use fast external storage or want reliable behaviour across different laptops, yes. The guaranteed 40Gbps and stricter certification prevent the odd bandwidth sharing quirks that cheaper docks can show.

Can I use a dock with a gaming laptop?

Yes, for peripherals, networking and displays. Charging is the sticking point: most gaming laptops draw more than a USB-C dock can supply, so keep the original charger plugged in for sustained load.

Do I need DisplayLink?

Only if you want more screens than your laptop's native outputs allow, particularly on a base Apple Silicon Mac. It works well for office use, but native Thunderbolt or DisplayPort docks are better for video and gaming.

Will a Thunderbolt 5 dock work with an older laptop?

Usually yes, since it's backwards compatible. It will fall back to the laptop's speed, such as 40Gbps, so you only get the full benefit once your laptop also supports Thunderbolt 5.
