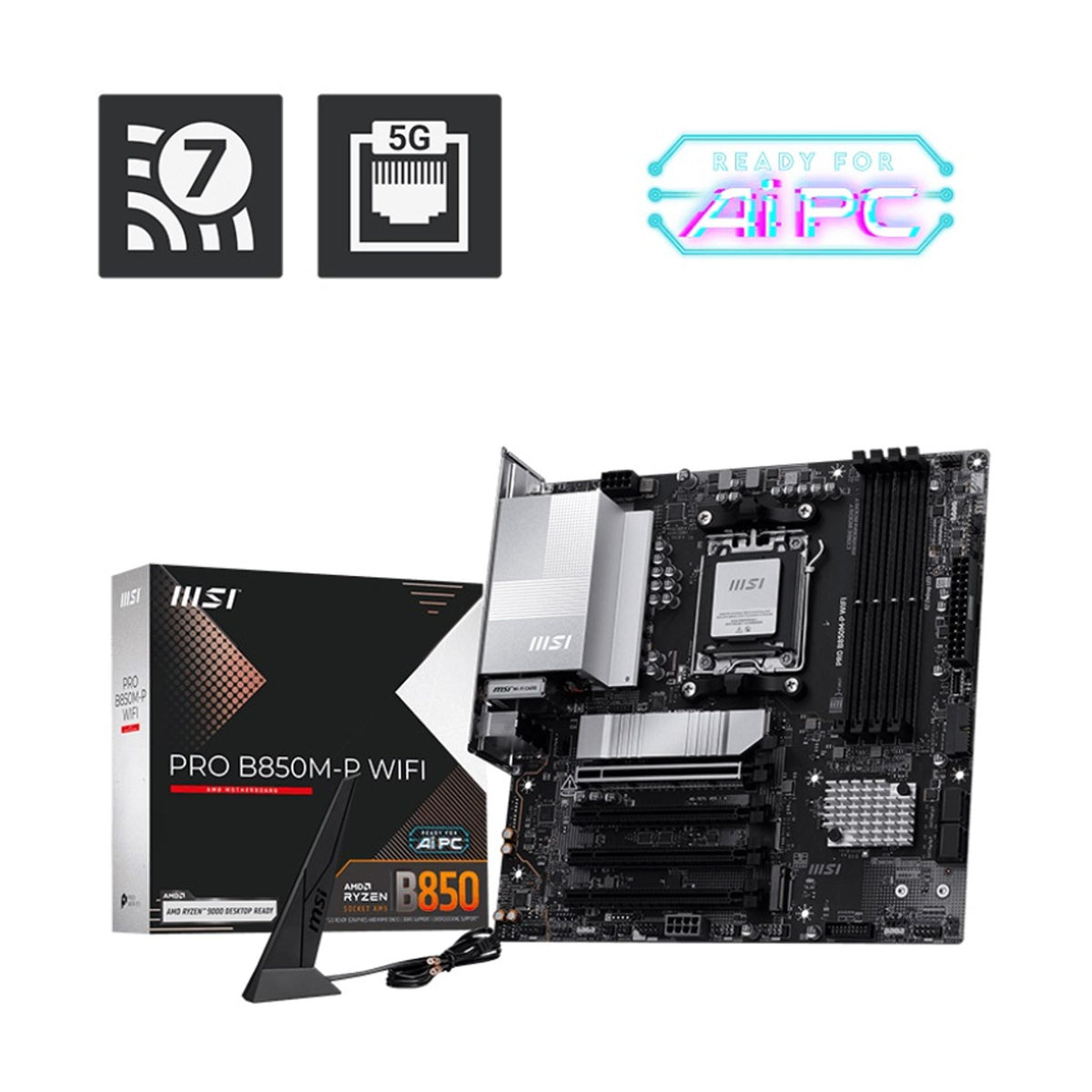

MSI PRO B850M-P WIFI AM5 4x DDR5 3x M.2 1x HDMI Motherboard WiFi 7

The MSI PRO B850M-P WIFI is a compact motherboard designed for AMD Ryzen processors with support for the latest DDR5 memory and PCIe 5.0 technology. It features a robust set of connectivity options including Wi-Fi 7, providing superior wireless performance.

Display Interface Support

• HDMI™ 2.1 (4K@60Hz)
• DisplayPort 1.4 (requires processor graphics memory support)

Memory Support

• 4 DIMMs, Dual Channel DDR5
• Up to 8200+ MT/s (OC)

Storage

• 1 x M.2 Gen5 x4 128Gbps slot
• 1 x M.2 Gen4 x4 64Gbps slot
• 1 x M.2 Gen4 x2 32Gbps slot
• 4 x SATA 6Gbps ports

Expansion Slots

• 1 x PCIe 5.0 x16 slot
• 3 x PCIe 3.0 x1 slots

Connectivity

• 8 x USB ports (3 x USB 10Gbps, 6 x USB 5Gbps)
• 4 x USB 2.0 ports
• Realtek® 8126 5G LAN
• Wi-Fi 7 Solution with Bluetooth 5.4

Features

• EZ M.2 Shield Frozr II: Tool-less design for easy installation and removal of M.2 SSDs.
• Triple M.2 Connectors: 3x M.2 connectors with PCIe 4.0 solution, strengthened by M.2 Shield Frozr.
• Frozr AI Cooling: Detects CPU and GPU temperatures to automatically adjust system fan duty for optimal cooling.

Additional Features

• Latest DDR5 Memory with MSI Memory Boost technology
• Lightning Gen 5: Up to 128GB/s bandwidth for maximum transfer speed
• Extended Heatsink Design for improved cooling performance
• Pre-installed I/O Shielding for better EMI protection and installation convenience
