ASUS
ASUS PRIME B850-PLUS WIFI-CSM AM5 ATX Motherboard DDR5 256GB 1x PCIe 5.0 3x M.2
Available in stock (13)
Couldn't load pickup availability
Specifications
Specifications
Processor
| Processor Socket | Socket AM5 |
|---|
Memory
| Memory Technology | DDR5 |
|---|
Motherboard
| Motherboard Form Factor | ATX |
|---|---|
| Motherboard Chipset Family | AMD |
Expansion & Slots
| Expansion Slot Types | M.2, SATA, PCIe |
|---|
Ports & Connectivity
| Wi-Fi Standard | 802.11ax |
|---|---|
| USB Standard | USB 2.0 |
| USB Connector Type | USB Type-A, USB Type-C |
Dimensions
| Length | 280 mm |
|---|---|
| Width | 280 mm |
| Height | 80 mm |
Product Details
Product Details

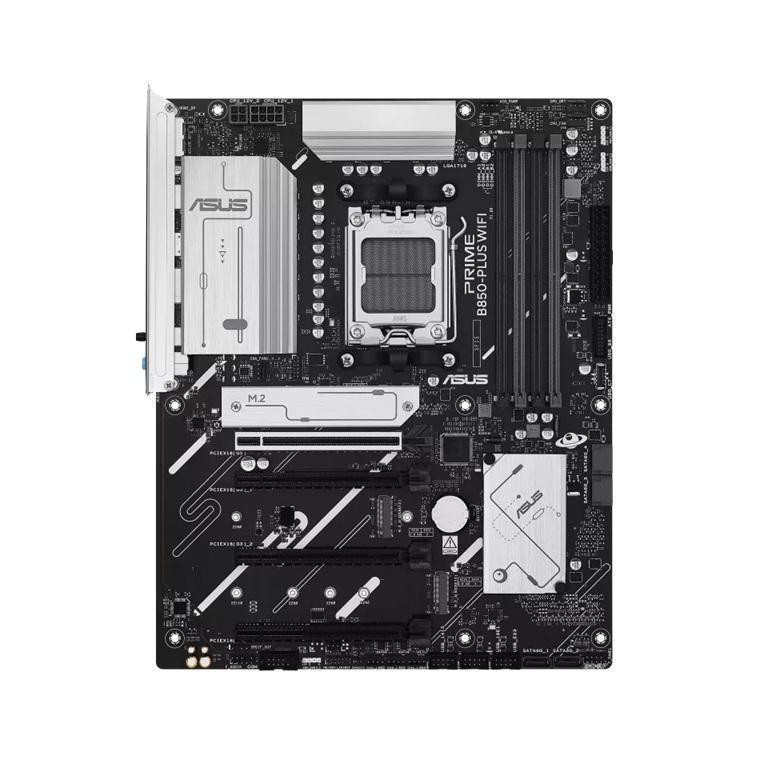

The ASUS PRIME B850-PLUS WIFI-CSM is an ATX motherboard designed for AMD Ryzen™ 9000 series processors and offers advanced features for demanding AI applications. It supports up to 256GB of DDR5 memory with speeds up to 8000+MT/s (OC) and includes PCIe 5.0 connectivity.
Display
- 1 x DisplayPort
- 1 x HDMI™ port
Performance
- Chipset: AMD B850
- CPU Socket: AM5 for AMD Ryzen™ 9000, 8000, and 7000 series processors
- M.2 slots:
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
Storage
- 4 x SATA 6Gb/s ports
Connectivity
- Ethernet: 1 x Realtek 2.5Gb Ethernet
- Wireless: Wi-Fi 6E (802.11ax) with Bluetooth® v5.3
- USB:
- Rear USB (Total 8 ports):
- 4 x USB 10Gbps port(s)
- 2 x USB 5Gbps ports
- 2 x USB 2.0 ports
- Front USB (Total 9 ports):
- 1 x USB 5Gbps connector
- 3 x USB 2.0 headers support additional ports
- Rear USB (Total 8 ports):
- Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC with jack-detection and multi-streaming capabilities
Form Factor
- ATX Form Factor (12 inch x 9.6 inch)
The PRIME B850-PLUS WIFI-CSM is compatible with Windows® 11 and Windows® 10 64-bit operating systems.
Warranty
Warranty
Manufacturer warranty 36 Months
