MSI

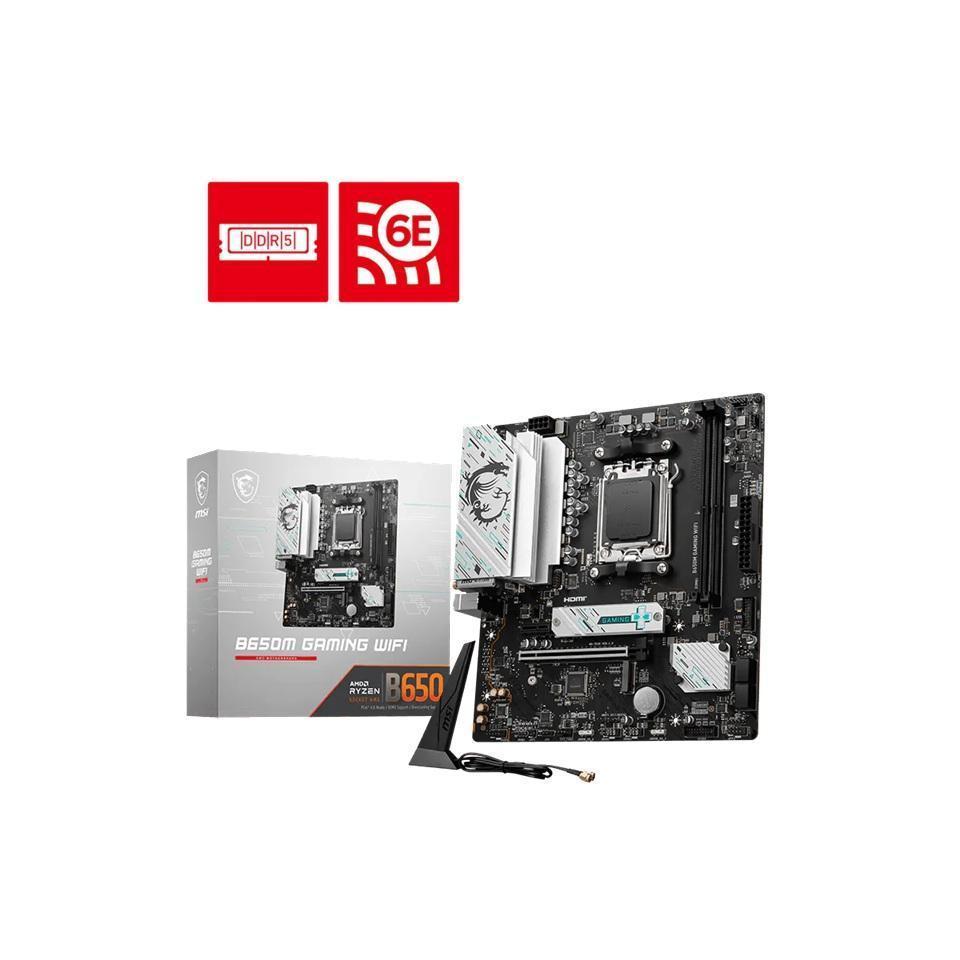

MSI B650M GAMING WIFI AM5 MATX Motherboard 2x DDR5 2x M.2 4x SATA WiFi
Hurry up, only 1 item left in stock.
Couldn't load pickup availability
Downloads
Downloads
- Product Brochure · Datasheet, PDF
- B650M GAMING PLUS WIFI · Datasheet, PDF
- B650M GAMING WIFI · Datasheet, PDF
- User manual · PDF
Specifications
Specifications
Processor
| Processor Socket | Socket AM5 |
|---|
Memory
| Memory Technology | DDR5 |
|---|
Motherboard
| Motherboard Form Factor | Micro-ATX |
|---|---|
| Motherboard Chipset Family | AMD |
Expansion & Slots
| Expansion Slot Types | SATA, DIMM, M.2, PCIe |
|---|
Ports & Connectivity
| Wi-Fi Standard | 802.11ax |
|---|---|
| USB Standard | USB 3.1 gen 1, USB 2.0 |
| USB Connector Type | USB Type-C, USB Type-A |
Dimensions
| Length | 286 mm |
|---|---|
| Width | 276 mm |
| Height | 72 mm |
Other
| Series | Gaming Plus |
|---|---|
| Colour | White |
Product Details
Product Details
The MSI B650M GAMING WIFI is an AM5 motherboard designed for compact builds with its mATX form factor. It supports the latest AMD Ryzen™ 7000 Series Desktop Processors and offers robust memory capabilities, accommodating up to 128GB of DDR5 RAM at speeds up to 6400+ MHz.
Display
- HDMI™ port supporting resolutions up to 4K 60Hz (HDMITM 2.1)
- DisplayPort supporting resolutions up to 4K 60Hz (DP1.4)
Performance
- Supports AMD Ryzen™ 7000 Series Desktop Processors
- Up to 128GB DDR5 memory capacity
- PCI-E x16 slot for high-speed graphics cards
Storage
- 2x M.2 slots supporting PCIe 4.0 x4, up to 2280/2260 devices
- 4x SATA 6G ports
Connectivity
- 4x USB 2.0 (Front)
- 4x USB 3.2 Gen1 Type A (Rear)
- 2x USB 3.2 Gen1 Type A (Front)
- 4x USB 3.2 Gen2 Type A (Rear)
- 1x USB 3.2 Gen2 Type C (Front)
Expansion Slots
- PCI-E x16 slot supporting PCIe 4.0 up to x16 (From CPU)
- PCI-E x1 slot supporting PCIe 3.0 up to x1 (From Chipset)
- 2x M.2 slots, both supporting PCIe 4.0 x4
The MSI B650M GAMING WIFI is ideal for gamers and enthusiasts seeking a compact yet powerful platform with integrated WiFi connectivity.
Warranty
Warranty
Manufacturer warranty 36 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
