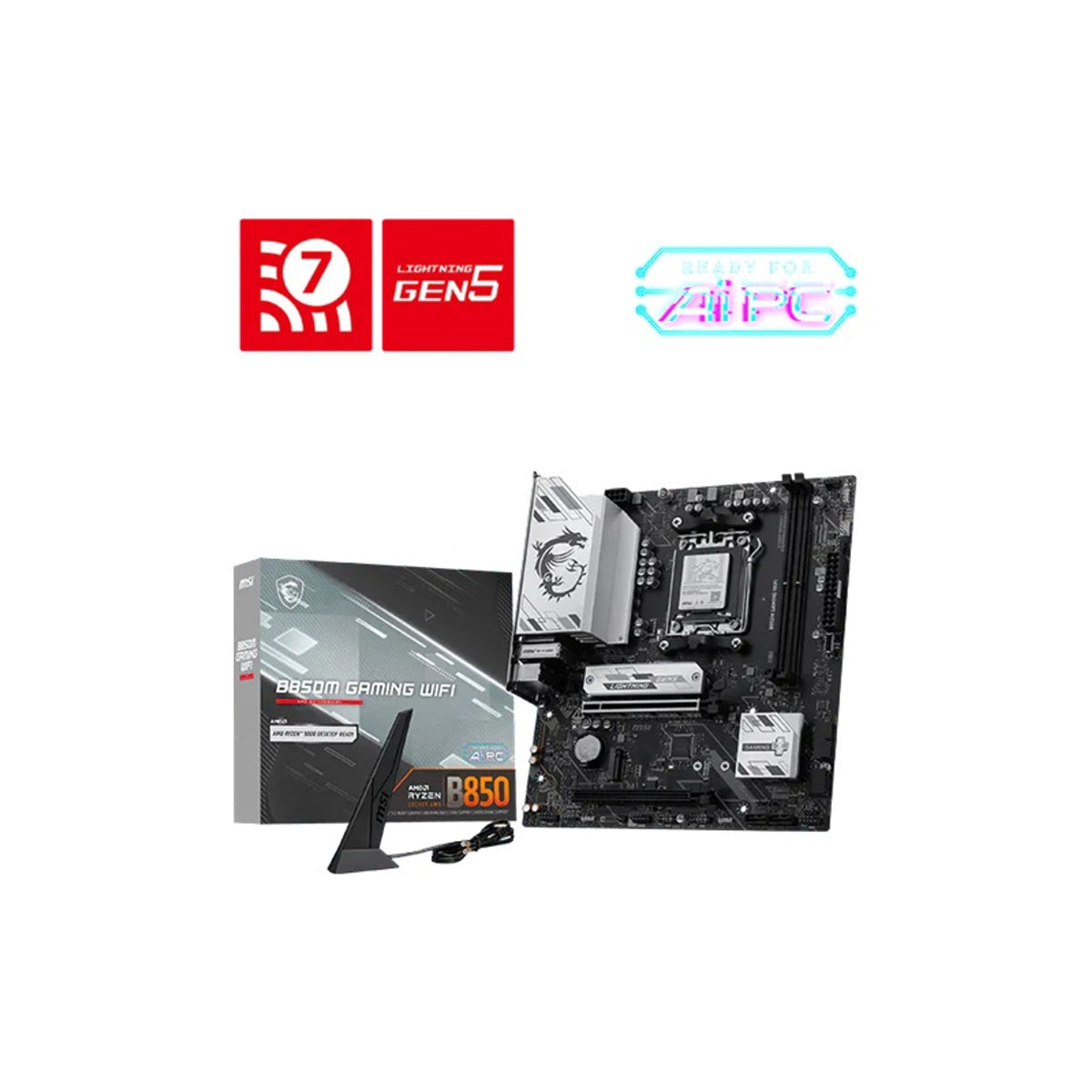

MSI B850M GAMING WIFI AMD AM5 DDR5 PCIe 5.0 M.2 Gen5 Wi-Fi 7 Motherboard

The MSI B850M GAMING WIFI is a high-performance motherboard designed for AMD Ryzen™ 9000 series processors, offering advanced features such as PCIe 5.0 M.2 slots and Wi-Fi 7 connectivity.

CPU Support

• Processors: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Sockets: AMD Socket AM5

Memory Support

• Type: Dual Channel DDR5 Memory
• Speed: Up to 8200+ MT/s (OC)
• DIMMs: 2 DIMMs supported

Storage

• M.2 Slots:
  • 1 x M.2 Gen5 x4 128Gbps slot
  • 1 x M.2 Gen4 x4 64Gbps slot
• SATA Ports: 4 x SATA 6Gbps ports

Connectivity

• Lan: Realtek® 8126-VB 5G LAN
• USB Ports:
  • 1 x USB 10Gbps (Type-C)
  • 6 x USB 5Gbps (5 Type-A + 1 Type-C)
  • 6 x USB 2.0
• Wireless: Wi-Fi 7 module, Bluetooth 5.4

Expansion Slots

• Pcie Slots:
  • 1 x PCIe 5.0 x16 slot
  • 1 x PCIe 4.0 x4 slot

Display Interface Support

• HDMI: 4K@60Hz (HDMITM 2.1)
• DisplayPort: DisplayPort 1.4

Audio

• Channels: 8-Channel (7.1) HD Audio with Audio Boost
