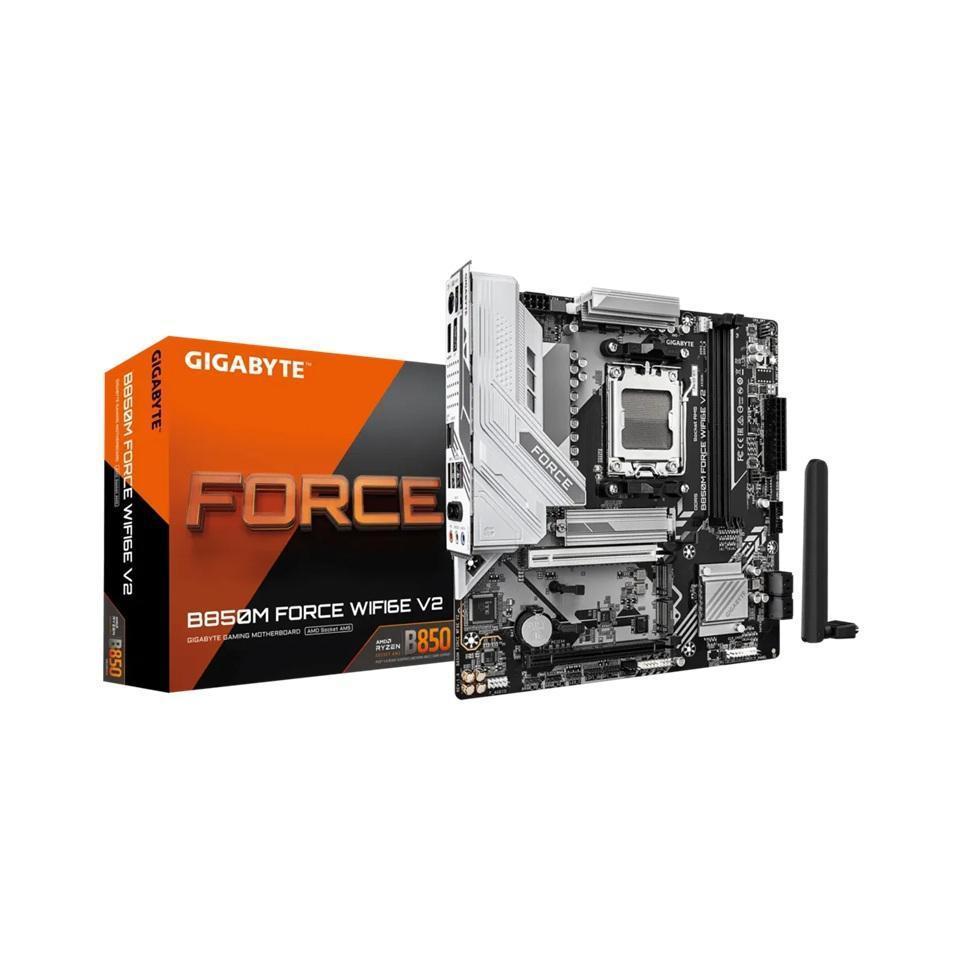

Gigabyte B850M FORCE WIFI6E V2 AMD AM5 2 x DDR5 1 HDMI 3 x M.2 Motherboard

The Gigabyte B850M FORCE WIFI6E V2 is a compact motherboard designed for AMD AM5 sockets, offering support for DDR5 memory and advanced connectivity options.

Display

• 1 x HDMI port (supporting 4096x2160@60 Hz)
• 1 x DisplayPort (supporting 3840x2160@144 Hz)

Performance

• CPU Socket: AMD Socket AM5
• Supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors
• 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity)
• Dual channel memory architecture with support for non-ECC Un-buffered DIMMs
• Supports AMD EXPO™ and XMP memory modules

Connectivity

• 5GbE LAN (Realtek® 2.5GbE)
• Integrated Wi-Fi 6E module

Expansion Slots

• 1 x PCI Express x16 slot supporting PCIe 4.0/x16, x8, or x4 depending on the CPU series
• 1 x PCI Express x1 slot

Storage

• 2 x M.2 connectors (Socket 3, M key, type 2280)
• 1 x SATA 6Gb/s connector for NVMe SSDs and RAID support

USB Ports

• CPU: 1 x USB Type-C® port with USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-A (red), 1 x USB 2.0/1.1
• Chipset: 1 x USB Type-C® port with USB 3.2 Gen 1, 4 x USB 3.2 Gen 1 ports, 5 x USB 2.0/1.1 ports
