Gigabyte X870E AORUS XTREME WOOD AM5 DDR5 256GB USB4 Wi-Fi 7 PCIe 5.0 M.2 HDMI ATX Motherboard

The Gigabyte X870E AORUS XTREME WOOD AM5 DDR5 256GB USB4 Wi-Fi 7 PCIe 5.0 M.2 HDMI ATX Motherboard is designed for high-performance computing with support for the latest AMD Ryzen processors and advanced connectivity options.

Display

• HDMI output

Performance

• Chipset: AMD X870E
• CPU Socket: AM5
• Memory Support: 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)
• Expansion Slots:
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
  • 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
• M.2 Connectors:
  • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs
  • 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs
  • 2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
• SATA Connectors: 4 x SATA 6Gb/s connectors

Connectivity

• LAN: 2 x Realtek® 5GbE LAN chips (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

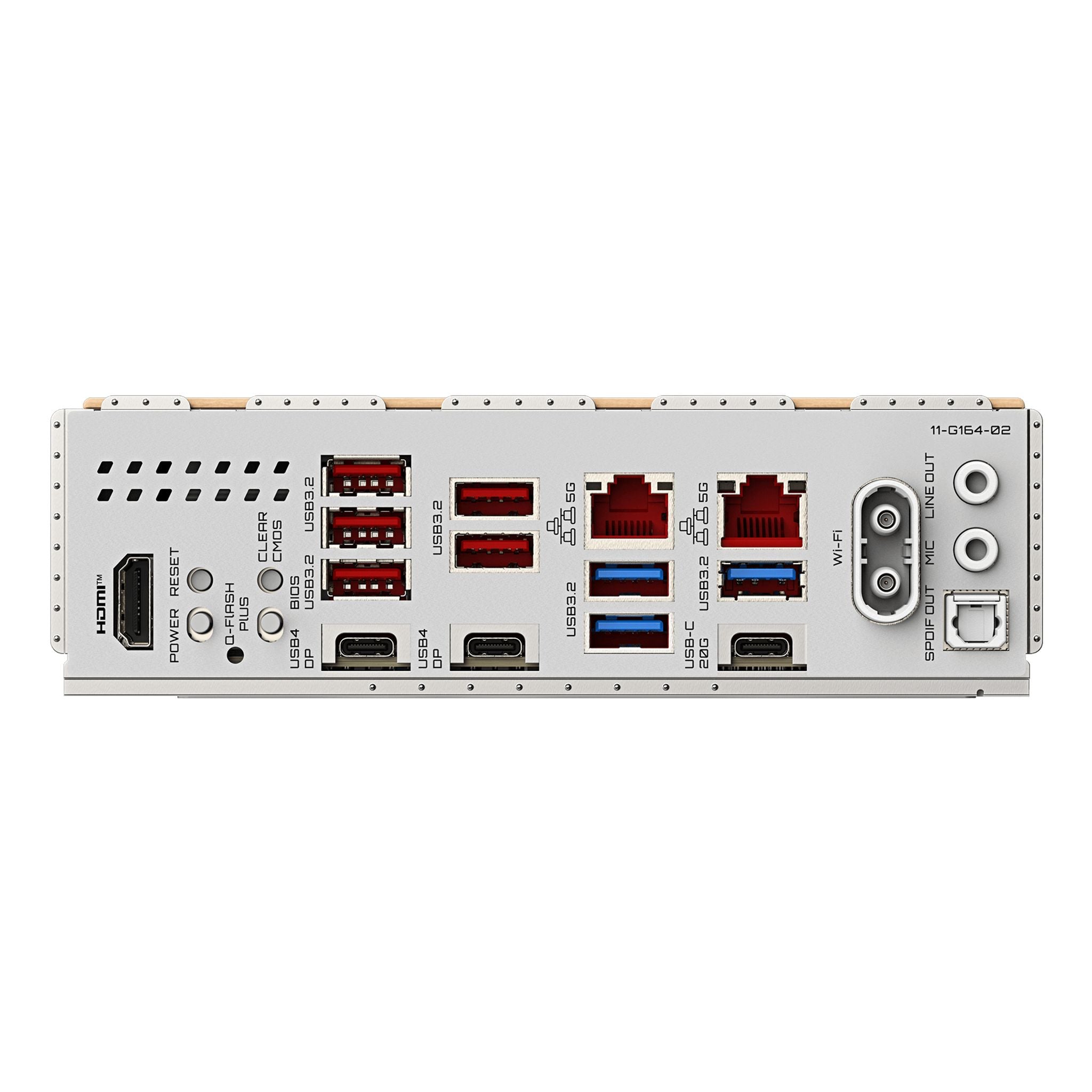

• USB Ports:
  • CPU+ASMedia USB4® controller:
    • 2 x USB4® USB Type-C® ports on the back panel
  • Chipset+USB 3.2 Gen 1 Hub:
    • 4 x USB 3.2 Gen 1 ports available through the internal USB headers
  • Chipset:
    • 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)
    • 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    • 3 x USB 3.2 Gen 1 ports on the back panel
    • 4 x USB 2.0/1.1 ports available through the internal USB headers
• Audio: Realtek® ALC1220 CODEC
• Wi-Fi: Wi-Fi 7 MT7927 RZ738

Compatibility

• Operating System Support: Windows 11 64-bit
• Form Factor: ATX Form Factor; 30.5cm x 24.4cm
