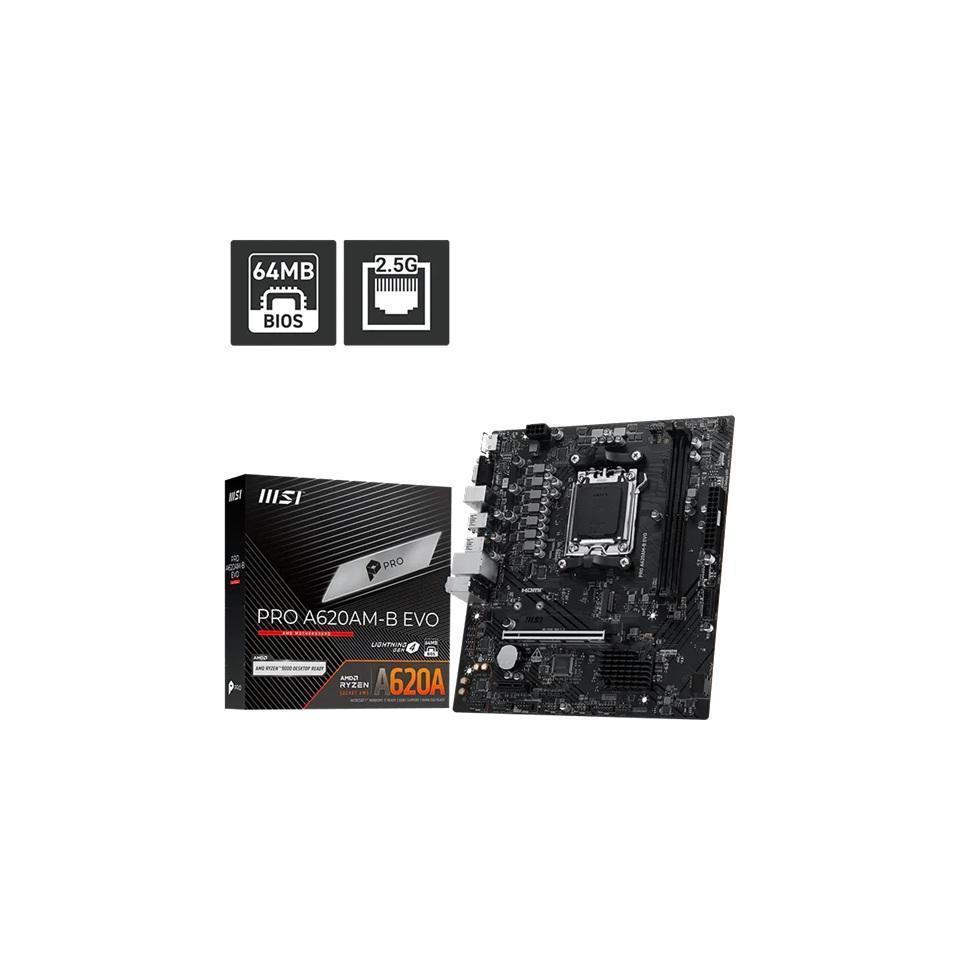

MSI PRO A620 AM-B EVO ATX Motherboard AM5 2x DDR5 128GB PCIe4 x16 1x M.2 2x SATA

The MSI PRO A620 AM-B EVO ATX Motherboard is designed for AMD Ryzen™ processors and offers robust performance with advanced features tailored for modern computing needs.

Chipset

• AMD A620A

CPU Support

• AMD Ryzen™ 9000/8000/7000 Series Desktop Processors

Memory

• 2x DDR5, Maximum Memory Capacity: 128GB
• Supports AMD POR Speed and JEDEC Speed
• Maximum Overclocking Frequency:
  • 1DPC 1R Max speed up to 6800+ MT/s
  • 1DPC 2R Max speed up to 6000+ MT/s
• Supports Memory Overclocking and AMD EXPO™
• Dual-Channel mode, non-ECC, un-buffered memory
• CUDIMM, Clock Driver bypass mode only*

Graphics

• HDMI Support: HDMITM 2.1, maximum resolution of 4K 60Hz*
• VGA Support: VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Slots

• PCI-E x16 slot: Supports x16 (For Ryzen™ 9000 and 7000 Series processors), x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), x4 (For Ryzen™ 8500/ 8300 Series processors)
• PCI-E x1 slot: PCIe 3.0 supports up to x1

Storage

• M.2: Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors), supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)
• 2x SATA 6G
• RAID: Supports RAID 0 and RAID 1 for SATA storage devices

Lan

• Realtek® RTL8125 2.5G LAN

Internal IO

• Power Connectors: ATX_PWR, CPU_PWR
• Fan Connectors: CPU Fan, System Fan
• Front Panel (JFP), Chassis Intrusion (JCI), Front Audio (JAUD)
• Com Port (JCOM), Addressable V2 RGB LED connector (JARGB_V2), RGB LED connector(JRGB)
• TPM pin header(Support TPM 2.0)

LED Features

• EZ Debug LED, EZ Memory Detection LED
