Which Gigabyte product do you actually need?

Most PC builders land on Gigabyte through its Motherboards or Graphics Cards / GPU, so those are the best place to see what each tier really changes. On boards, the entry tier (Gaming X and Eagle) uses a leaner VRM with fewer power stages, smaller heatsinks and fewer M.2 slots. That is fine for a Ryzen 5 or Core Ultra 5 at stock. The sweet spot is the AORUS Elite line. It adds a beefier VRM with higher-rated power stages, thicker heatsinks and heatpipes, more tool-less M.2 slots, and usually faster onboard networking. Sustained all-core loads such as rendering or compiling are where a better VRM pays off, because lower temperatures at the same current mean steadier clocks and longer component life. The AORUS Master and Xtreme tier adds more phases, 10GbE or Thunderbolt/USB4 on some models, and extra PCIe lanes. Beyond a 16-core chip with a real workload, the gains flatten quickly.

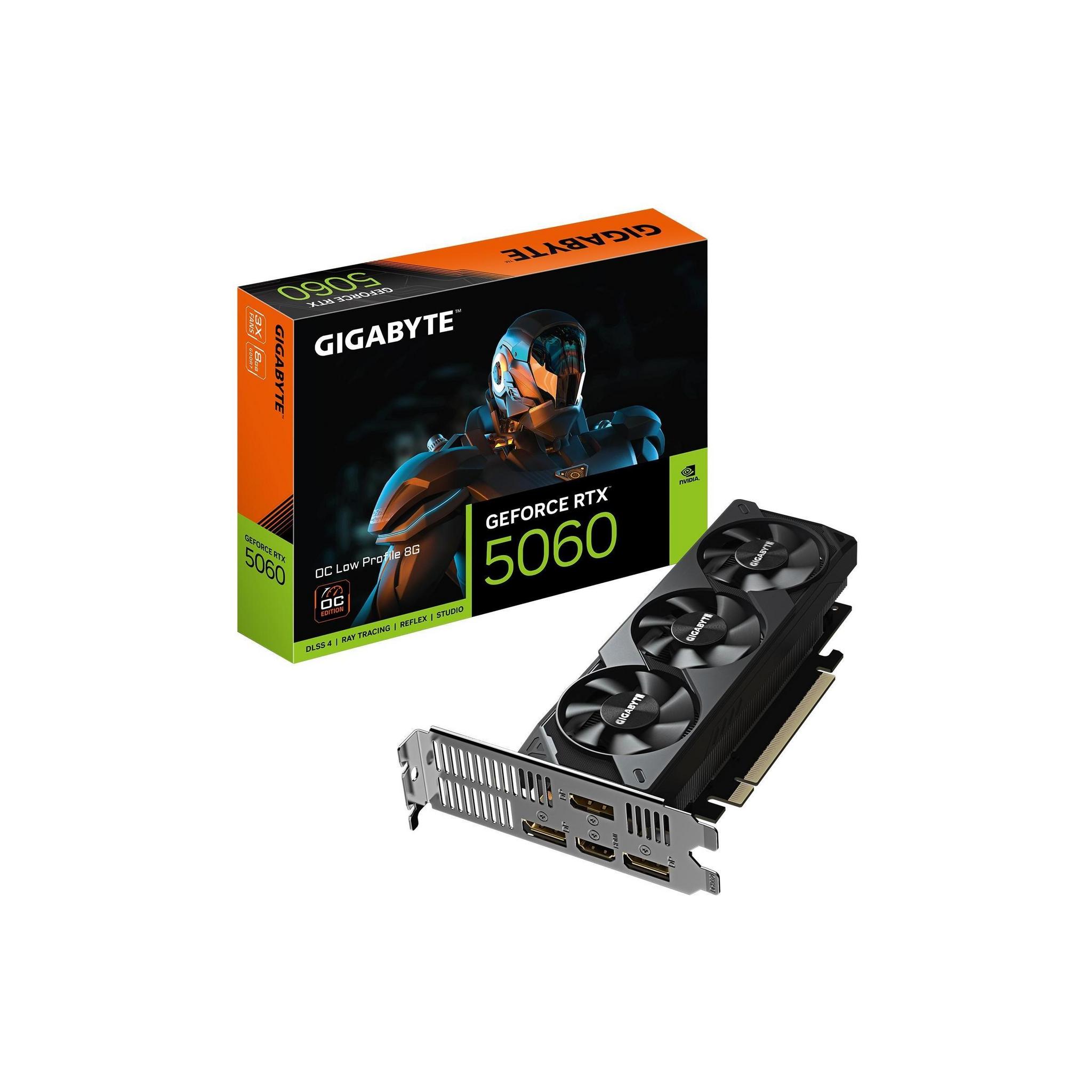

GPUs follow a similar pattern. Eagle and Windforce cards use modest coolers and stock clocks. Gaming OC adds a larger heatsink and a power limit with more headroom. AORUS Master cards go to the thickest cooler, dual BIOS and higher boost targets. The extra performance is usually a few percent, but the real difference is noise at a given temperature. A bigger cooler spins its fans slower for the same heat.

Upgrading and technical nuances

On AM5, B650 and B850 boards both run DDR5 only. B850 generally brings PCIe 5.0 to the GPU slot and M.2, plus newer USB and Wi-Fi 7 options. X870E adds more lanes and USB4 on top. If you're pairing a Ryzen 7 with a mid-range GPU, a B850 AORUS Elite is the sensible spot. X870E AORUS Master only makes sense if you need the extra M.2 and USB connectivity.

On Intel's LGA1851, Z890 supports CPU overclocking, while B860 locks that but still allows memory tuning. Most people running a Core Ultra chip at stock should look at B860 and put the savings into a better CPUs & Processors tier or a faster GPU.

Memory matters more than people think. On modern platforms the usual sweet spot is a dual-channel kit of two sticks. Four sticks load the memory controller harder and often force lower speeds. Look at Corsair Vengeance, Kingston Fury or G.Skill Ripjaws in the Desktop Memory range. Timings matter too. On AM5, DDR5-6000 CL30 is the commonly recommended balance, because the memory controller and fabric clocks run happiest around there. Going faster usually adds bandwidth but not real-world frame rates, since latency often gets worse.

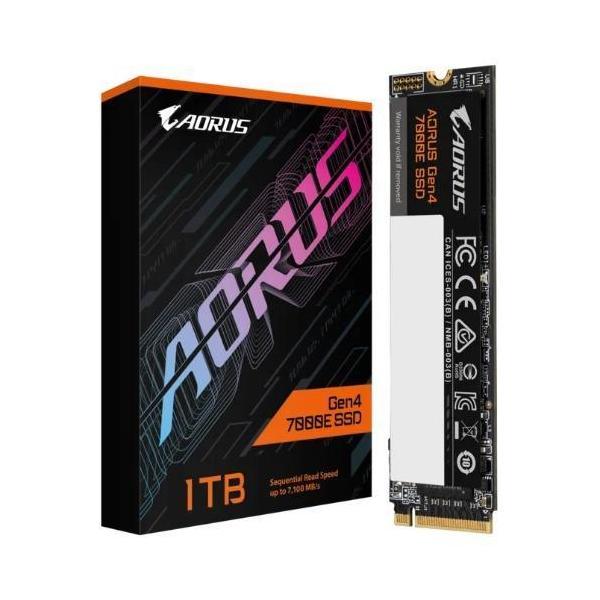

For storage, Gen4 drives like the Samsung 990 series, Crucial T500 or WD_BLACK SN850X handle almost everything. Gen5 drives such as Gigabyte's own AORUS Gen5 line roughly double sequential speeds, but they run hot and need the board heatsink. Game loading and everyday use barely change. Browse the Solid State Drives (SSD) range with that in mind.

Gigabyte monitors split between IPS and OLED panels. IPS gives a sturdy, bright image with contrast around 1000:1, while OLED offers near-instant pixel response and true blacks but with brightness limits and burn-in considerations. For competitive play, response time and refresh rate matter more than resolution. Check the Monitors collection for the balance that suits your GPU.

Practical things to check before buying

Start with physical fit. Many Gigabyte GPUs, especially Gaming OC and AORUS Master models, are three slots thick and well over 300 mm long. Check your case's GPU clearance and front radiator or fan position in the specs of any Computer Cases you're considering. A thick card can also block lower PCIe and M.2 slots on the motherboard.

Then check power. Modern high-end cards use the 12V-2x6 connector, and it must be pushed in fully with no tight bend right at the plug. A native ATX 3.1 unit from the Power Supplies or ATX Power Supply range, such as a Seasonic Focus, Corsair RMx or Gigabyte UD series, avoids adapter problems. Size it with headroom for transient spikes, not only average draw. If you need a replacement lead, look in Cables & Connectors for a quality native cable rather than a cheap adapter.

On the cooling side, check socket support and RAM clearance. Tall heatsinks like a Thermalright Peerless Assassin can overhang the first DIMM slot, so check height on both the cooler and your memory. AIOs such as the Arctic Liquid Freezer series suit hotter chips. Both are in CPU Cooling and the broader Fans, Heatsinks & Cooling range. Fan bearing type matters over time. Fluid dynamic and similar bearings stay quieter for longer than cheap sleeve designs.

Before installing a new CPU, check the board's BIOS version. A board that needs an update may not boot a newer chip, so look for Q-Flash Plus support, which lets you update without a CPU. If you're building a networked setup, check onboard LAN and Wi-Fi against your router, for example gear from TP-Link in the Networking range. If you'd prefer to skip the compatibility homework, a prebuilt from Computers is worth a look.

Brands and local warranty

Gigabyte competes directly with ASUS (TUF, ROG), MSI (Tomahawk, MAG) and ASRock on motherboards, and with those same brands plus others on GPUs. For other parts, I'd look at Corsair, Seasonic and Kingston on the power and memory side. Each brand has a different sweet spot, so compare actual VRM, cooler and port specs rather than names alone.

Australian warranty matters because Consumer Law gives you rights, and a local retailer or distributor can handle returns and RMAs without you shipping a board overseas. Grey imports often void local support, and a dead board or GPU can mean weeks of waiting. Keep your invoice, buy from an authorised reseller, and register the product if the brand offers it.

Frequently asked questions

Is a Gigabyte AORUS board worth it over a cheaper Eagle or Gaming X model?

It depends on your CPU. For a mid-range chip at stock, a cheaper board is often fine. If you run a high-core-count CPU under sustained load, the AORUS VRM and heatsinks keep temperatures lower, and you'll usually get extra M.2 slots and better networking.

How much RAM do I need on a modern Gigabyte board?

32GB is the comfortable standard for gaming and general work. 16GB works for lighter use, and 64GB suits video editing, virtual machines and heavy multitasking. Use two sticks in dual channel for the best stability.

Do I need a PCIe 5.0 motherboard or SSD?

For most people, no. Current GPUs rarely saturate a Gen4 x16 slot, and Gen4 SSDs are fast enough for gaming. Gen5 helps with huge sequential transfers, but it costs more and runs hotter.

Will a Gigabyte GPU fit in my case?

Check the card's length, thickness and height against your case's GPU clearance, and allow room for the power cable. Many higher-tier cards are three slots wide, so confirm that the case and motherboard layout can handle that.

Can I use my old DDR4 memory?

No. Current AM5 and LGA1851 platforms are DDR5 only, and the modules are physically keyed differently. You'll need a DDR5 kit.
