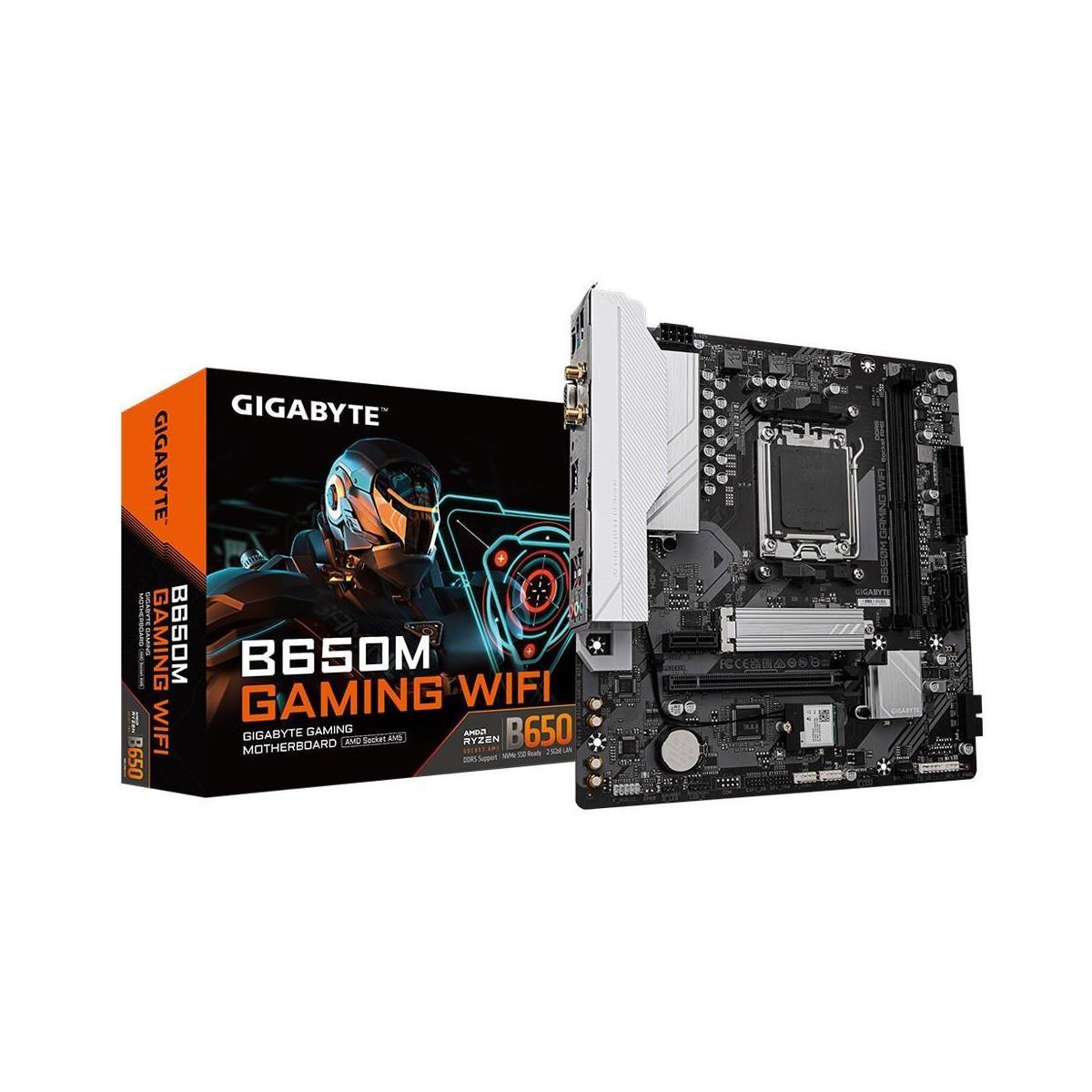

Gigabyte B650M GAMING WIFI AMD AM5 2x DDR5 1x HDMI 1x PCI-E x16 4x SATA Motherboard

The Gigabyte B650M GAMING WIFI is a versatile motherboard designed for AMD AM5 sockets, supporting the latest Ryzen™ processors including the 7000 and 8000 series. It features:

Display

• 1 x HDMI port (4K@60Hz)
• 1 x D-Sub port (1920x1200@60Hz)

Performance

• Supports up to 128GB DDR5 memory (64GB single DIMM capacity)
• Dual channel memory architecture for non-ECC Un-buffered DIMMs
• Onboard AMD Radeon™ Graphics with support for AMD EXPO™ and XMP profiles

Connectivity

• AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) - 802.11 a/b/g/n/ac, Bluetooth 4.2

Expansion Slots

• 1 x PCI Express x16 slot for PCIe 4.0 graphics cards (x16/x8/x4 mode depending on CPU)
• 1 x PCI Express x1 slot supporting PCIe 3.0

Storage

• 1 x M.2 connector for PCIe 4.0 SSDs (type 2580, x4/x2 mode depending on CPU)
• 4 x SATA 6Gb/s connectors

USB Ports

• CPU: 2 x USB 3.2 Gen 1 ports and 1 x USB 2.0/1.1 port (rear panel)
• Chipset: Additional 2 x USB 3.2 Gen 1 and 5 x USB 2.0/1.1 ports available through internal headers
