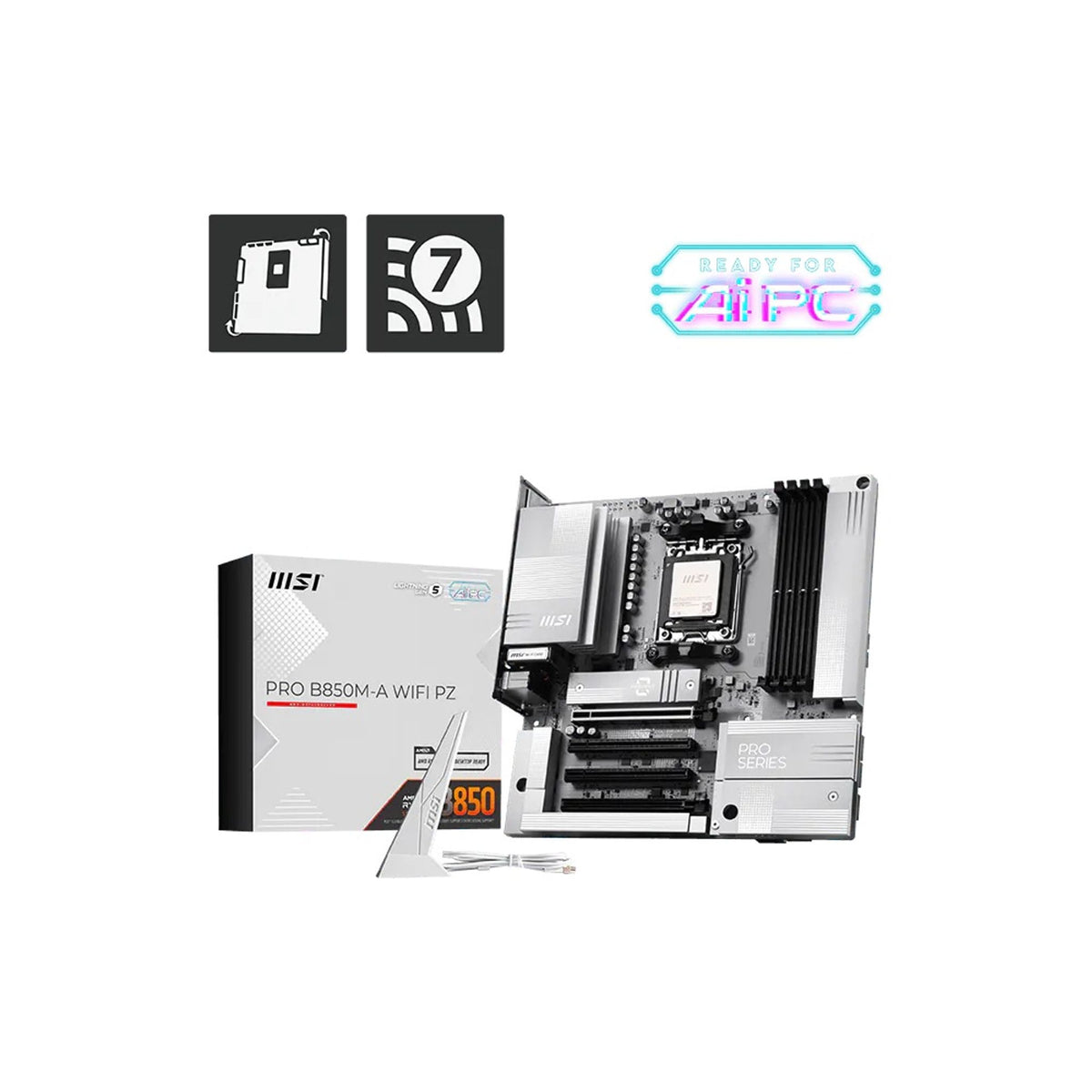

MSI PRO B850M-A WIFI AM5 DDR5 256GB 2x M.2 Wi-Fi 7 Motherboard
Available in stock (69)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 286 mm |
|---|---|
| Width | 290 mm |
| Height | 76 mm |
Product Details
Product Details
The MSI PRO B850M-A WIFI is a sleek and stylish motherboard designed for AMD Ryzen™ processors with its harmonious silver-white colour scheme. It features an innovative back-connect design to simplify cable management and improve aesthetics.
Chipset & CPU Support
- Chipset: AMD B850
- CPU: Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
- Sockets: AM5
Memory Support
- Type: 4x DDR5 UDIMM
- Capacity: Up to 256GB
-
Speeds:
- 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s for Ryzen™ 9000 Series Processors
- Up to 6400+ MT/s with 1DPC 1R, 2DPC 1R configurations and up to 6000+ MT/s with 2DPC 2R configuration
Onboard Graphics
- HDMI: Supports HDMITM 2.1, maximum resolution of 4K 60Hz
- DisplayPort: Supports DisplayPort 1.4, maximum resolution of 4K 60Hz
SLOTS
-
PCI-E x16 Slots:
- PCI_E1: PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 & PCI_E3: PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E4: PCIe 4.0 supports up to x4 (From Chipset)
Storage
-
M.2 Slots:
- M.2_1: Supports up to PCIe 5.0 x4 for Ryzen™ 9000/7000 Series processors, supports 2280/2260 devices
- M.2_2: Supports up to PCIe 4.0 x4 or x2 (For Ryzen™ 8500/8300 Series processors), supports 2280/2260 devices
- SATA: 4x SATA 6G
- RAID: Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe and SATA storage devices
Connectivity
- LAN: Realtek® 8126 5G LAN
- Wi-Fi & Bluetooth: Wi-Fi 7 with EZ Antenna, supports MU-MIMO TX/RX, up to 2.9Gbps, and Bluetooth® 5.4
-
USB Ports:
- 4x USB 2.0 (Front)
- 3x USB 5Gbps Type A (Rear), 2x USB 5Gbps Type A (Front)
- 3x USB 10Gbps Type A (Rear), 1x USB 10Gbps Type C (Rear), 1x USB 10Gbps Type C (Front)
Audio & LED Features
- Audio: Realtek® ALC897 7.1-Channel High Definition Audio
- LEDs: 4x EZ Debug LED, 1x EZ Memory Detection LED
Operating System Support
- OS: Windows® 11 64-bit
The MSI PRO B850M-A WIFI is designed to provide a high-performance and reliable platform for AMD Ryzen™ processors, with advanced features such as PCIe 5.0 M.2 slots and Wi-Fi 7 connectivity.
