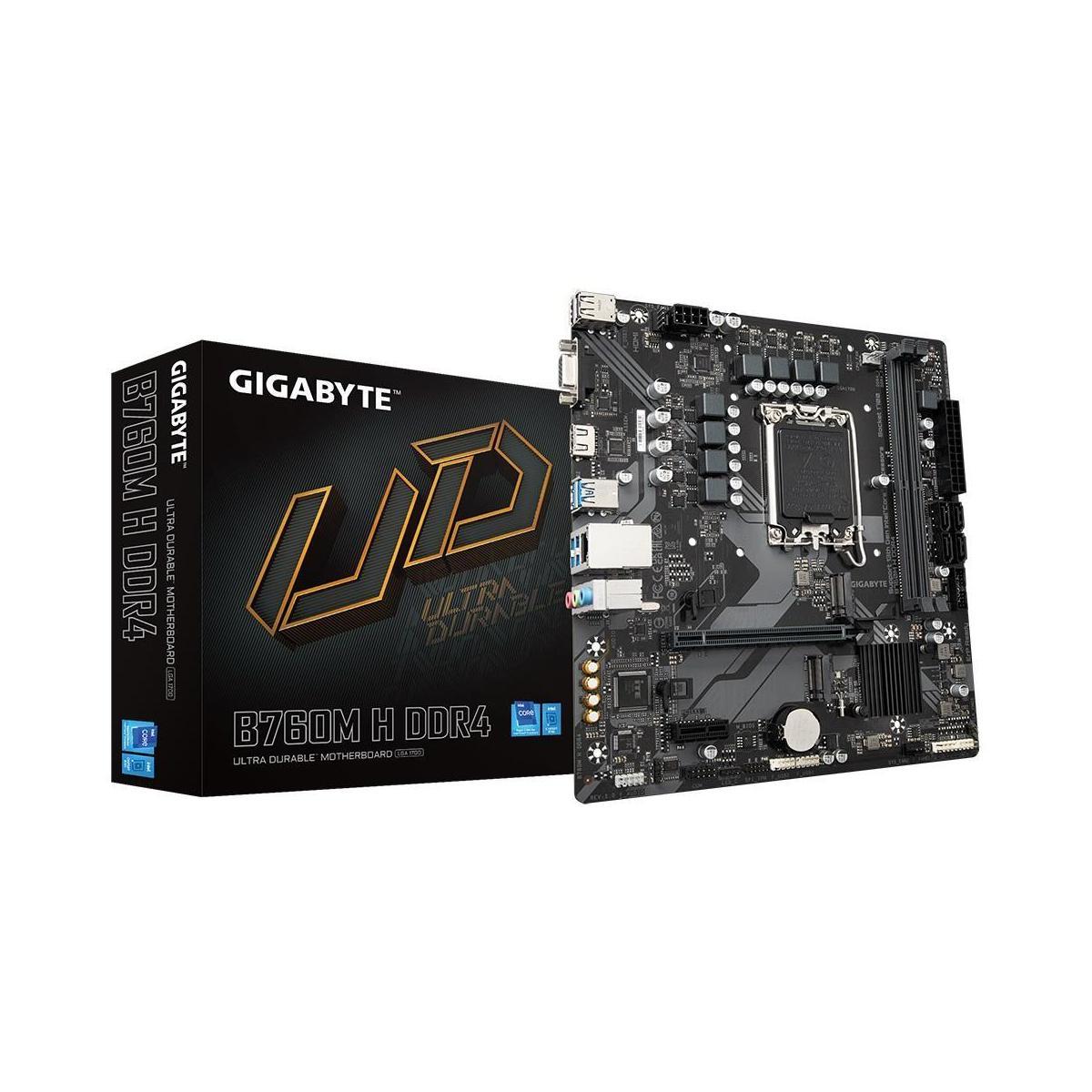

Gigabyte B760M H DDR4 LGA 1700 mATX Motherboard

The Gigabyte B760M H DDR4 LGA 1700 mATX Motherboard is designed for compatibility with the latest Intel processors and offers robust performance and expandability in a compact form factor.

Display

• 1 x D-Sub port, supporting up to 1920x1200@60 Hz resolution
• 1 x HDMI port, supporting up to 4096x2160@60 Hz resolution (HDCP 2.3 supported)

Performance

• LGA1700 socket: Supports the 13th and 12th Generation Intel Core, Pentium Gold, and Celeron processors
• Intel B760 Express Chipset
• Onboard graphics with support for Intel HD Graphics
• Expansion slots: 1 x PCI-E x16 (PCIe 4.0), 1 x PCI-E x1 (PCIe 3.0)

Storage

• 2 x M.2 sockets
• 4 x SATA 6Gb/s connectors

Connectivity

• Back panel: 2 x USB 2.0/1.1 ports, 1 x D-Sub port, 1 x HDMI port, 4 x USB 3.2 Gen 1 ports, 1 x RJ-45 port, 3 x audio jacks
• Motherboard headers: 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 2 x USB 3.2 Gen 1 headers, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header
• Power connectors: 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector

Memory

• Supports up to 64GB (32 GB single DIMM capacity) of DDR4 memory with dual channel architecture
• Supported speeds: DDR4 3200/3000/2933/2666/2400/2133 MT/s
• ECC and non-ECC Un-buffered DIMM support (1Rx8, 2Rx8, 1Rx16)
• Support for Extreme Memory Profile (XMP) memory modules

Compatibility

• Form factor: Micro ATX; dimensions: 23.0cm x 21.5cm
• Operating system support: Windows 11 and Windows 10 64-bit
