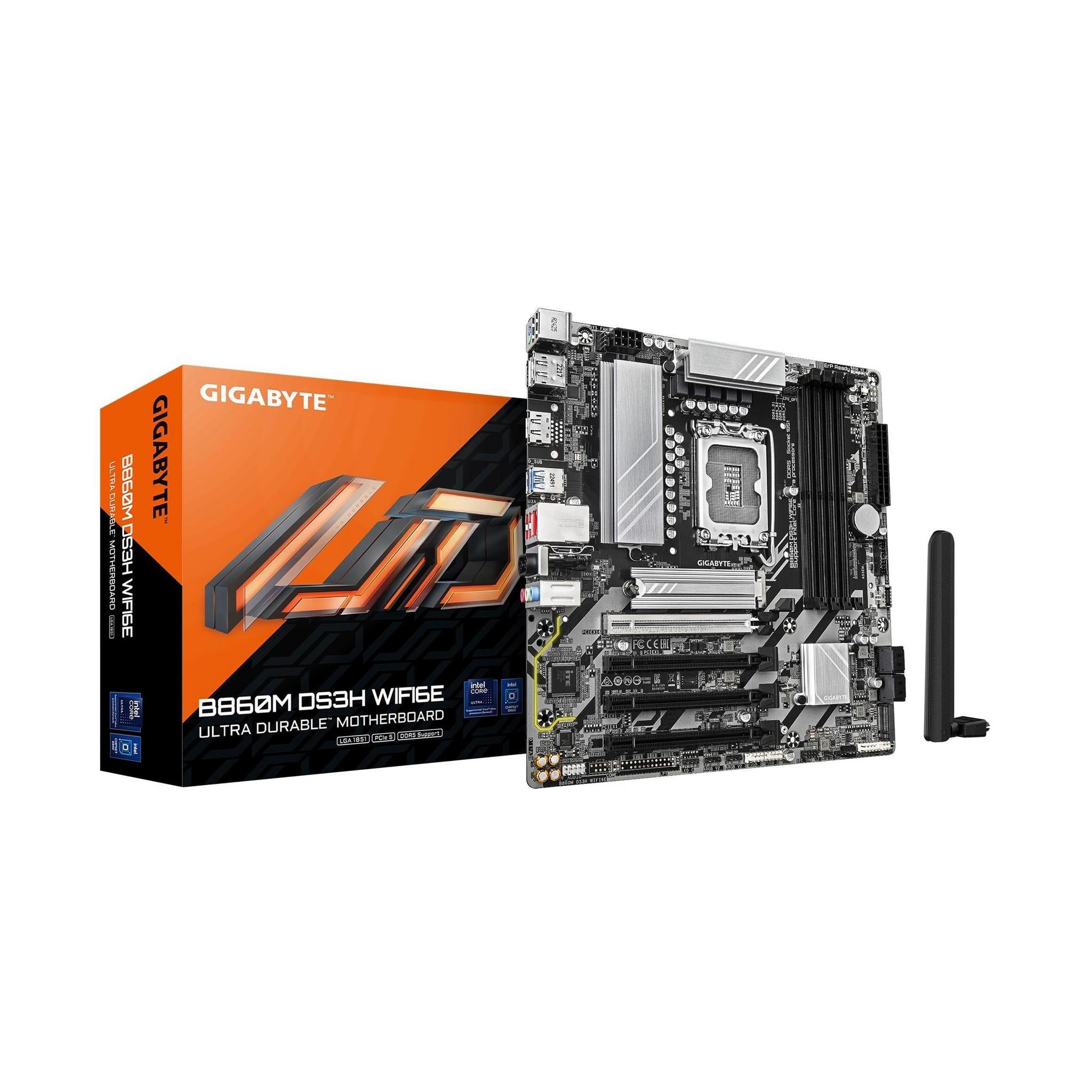

Gigabyte B860M DS3H WIFI6E 4x DDR5 2x M.2 Motherboard

The Gigabyte B860M DS3H WIFI6E is a compact motherboard designed for Intel® Core™ Ultra processors with LGA1851 socket support. It features:

Display

• 1 x HDMI port supporting up to 4096x2160@60 Hz (HDCP 2.3)
• 2 x DisplayPort ports supporting up to 3840x2160@144 Hz
• Support for triple display output simultaneously

Performance

• Intel® B860 Express Chipset
• Up to 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)
• Dual channel memory architecture with support for ECC and non-ECC Un-buffered DIMMs
• Support for Extreme Memory Profile (XMP) memory modules

Connectivity

• Realtek® 2.5GbE LAN chip supporting up to 2.5 Gbps/1 Gbps/100 Mbps
• Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)

Expansion Slots and Storage Interfaces

• 1 x PCI Express x16 slot supporting PCIe 5.0 running at x16
• 3 x PCI Express x1 slots supporting PCIe 4.0 running at x1
• 2 x M.2 connectors: one for CPU (PCIe 5.0) and one for chipset (PCIe 4.0)
• 4 x SATA 6Gb/s connectors with RAID support for up to RAID 10 configurations

USB Ports

• 1 x USB Type-C® port with USB 3.2 Gen 1 support (internal header)
• 1 x USB 3.2 Gen 2 Type-A port on the back panel
• 4 x USB 3.2 Gen 1 ports (2 on the back panel, 2 internal headers)
• 3 x USB 2.0/1.1 ports on the back panel
• Additional 4 x USB 2.0/1.1 ports available through internal headers
