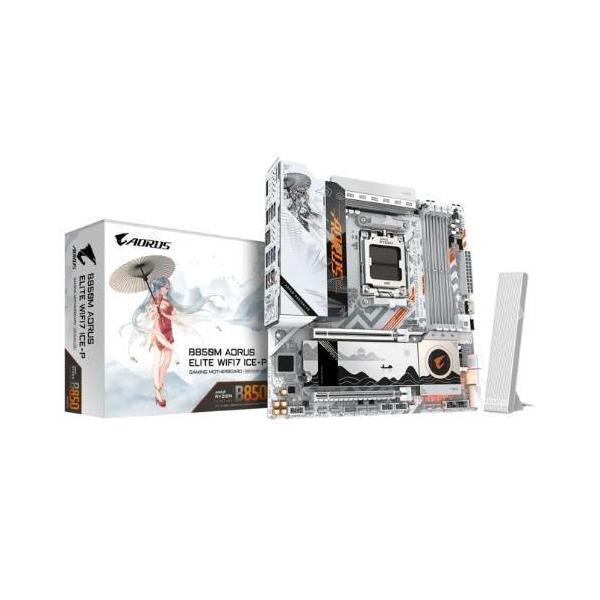

Gigabyte B850M A ELITE WF7 ICE-P Motherboard

The Gigabyte B850M A ELITE WF7 ICE-P is a Micro ATX motherboard designed for AMD Socket AM5 processors. It features an integrated AMD Radeon™ Graphics processor and supports up to 256 GB of DDR5 memory in dual-channel mode.

Display

• No dedicated display outputs; relies on integrated graphics

Performance

• CPU: AMD Socket AM5 support
• Chipset: AMD B850
• Memory: 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)

Storage

• 1 x M.2 connector (Socket 3, M key) integrated in the CPU

Connectivity

• Audio: Realtek® ALC1220 CODEC
• LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• USB:
  • CPU: 1 x USB Type-C® port (3.2 Gen 2), 2 x USB 3.2 Gen 2 Type-A ports
  • CPU+USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel
  • Chipset+USB 3.2 Gen 1 Hub: 4 x USB 2.0/1.1 ports available through internal headers, 1 x USB 3.2 Gen 1 port on the back panel, 3 x USB 3.2 Gen 1 ports (internal header)
  • Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2x2 support (internal header), 4 x USB 2.0/1.1 ports available through internal headers

Bios and Support

• BIOS: AMI UEFI BIOS with PnP 1.0a, DMI 7.0, WfM 2.0, SM BIOS 2.7, ACPI 5.0 support
• Operating System: Windows 11 64-bit supported

Form Factor

• Micro ATX Form Factor; dimensions: 24.4cm x 24.4cm
