GIGABYTE

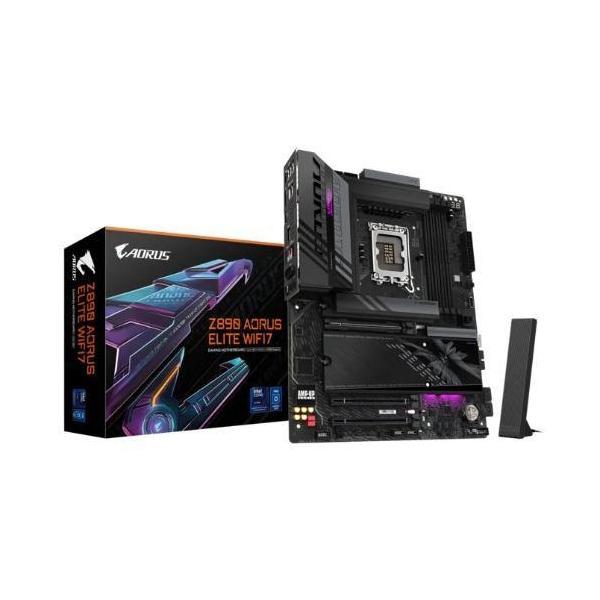

Gigabyte Z890 AORUSELITE WF7 P DDR5 ATX Motherboard 4x M.2 3x PCI-E x16
Available in stock (20)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 300 mm |
|---|---|
| Width | 250 mm |
| Height | 100 mm |
Product Details
Product Details
The Gigabyte Z890 AORUSELITE WF7 is an ATX motherboard designed for Intel® Core™ Ultra processors with LGA 1851 socket support. It features a robust set of specifications tailored for high-performance computing and connectivity.
Display
- 1 x DisplayPort (Note)
Performance
- CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
- Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4
Memory
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Storage
- 4 x M.2 slots
- 4 x SATA ports
Connectivity
- Intel® Thunderbolt™ 4 connectors (USB Type-C® ports)
- 5 x USB 3.2 Gen 1/Gen 2 ports
- 1 x USB-C port
- 4 x USB 2.0/1.1 ports
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Optical S/PDIF Out connector
- 2 x audio jacks
Unique Features
- GIGABYTE Control Center (GCC)
- Q-Flash/Q-Flash Plus for BIOS updates without CPU, RAM or graphics card
- Smart Backup for easy data protection and recovery
The Gigabyte Z890 AORUSELITE WF7 measures 30.5cm x 24.4cm, making it suitable for a wide range of ATX form factor cases.
