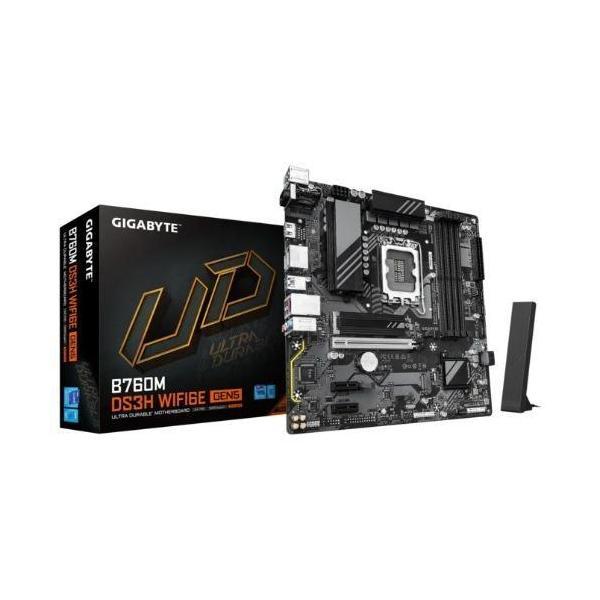

Gigabyte B760M DS3H WIFI6E DDR5 LGA 1700 mATX Motherboard

The Gigabyte B760M DS3H WIFI6E is a high-performance micro ATX motherboard designed for the latest Intel processors. It supports up to 256GB of DDR5 memory and features PCIe Gen5 performance, making it ideal for demanding applications.

Display

• 1 x HDMI port (4096x2160@60 Hz)
• 2 x DisplayPorts (4096x2304@60 Hz)

Performance

• CPU Support: LGA 1700 socket for Intel Core 14th, 13th, and 12th generation processors
• Memory: Up to 256GB DDR5 (64GB single DIMM capacity)
• Graphics: Integrated Intel HD Graphics with HDMI 2.1 and DisplayPort 1.2 support
• Expansion Slots: 1 x PCIe Gen5 x16 slot, 2 x PCIe x1 slots (PCIe 3.0)

Storage

• M.2 Connectors: 2 x M.2 sockets for PCIe 4.0 x4/x2 SSDs
• SATA Ports: 4 x SATA 6Gb/s connectors

Connectivity

• Ethernet: 1 x 2.5 GbE LAN port
• Wi-Fi: Wi-Fi 802.11ax (WIFI6E)
• USB Ports: 3 x USB 3.2 Gen 1, 1 x USB Type-C® with USB 3.2 Gen 2
• Audio Jacks: 3 audio jacks
• Other Connectors: 2 x USB 2.0/1.1 ports, PS/2 keyboard/mouse port, antenna connectors (2T2R)

Features

• Precision 6+2+1 phase VRM solution for stable power delivery
• EZ-Plug design for easy Wi-Fi antenna installation
• WIFI Compass to optimise antenna position
• PCIe UD Slot with SMD Armour and EZ-Latch quick release mechanism
• Smart Fan 6 with multiple temperature sensors and hybrid fan headers
• Q-Flash Plus for BIOS updates without CPU, memory or graphics card installation

The Gigabyte B760M DS3H WIFI6E motherboard supports Windows 11 and 10 operating systems.
