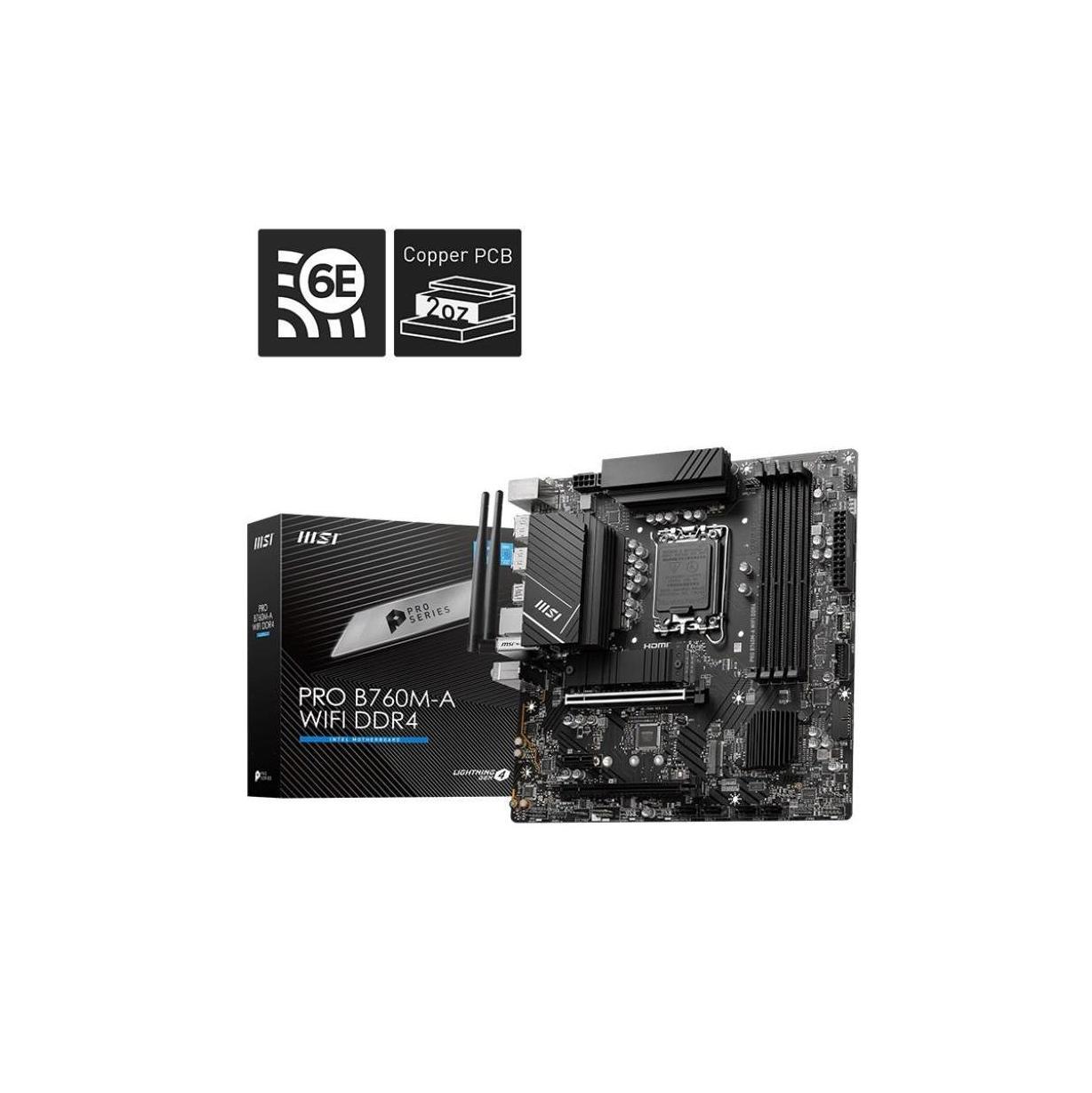

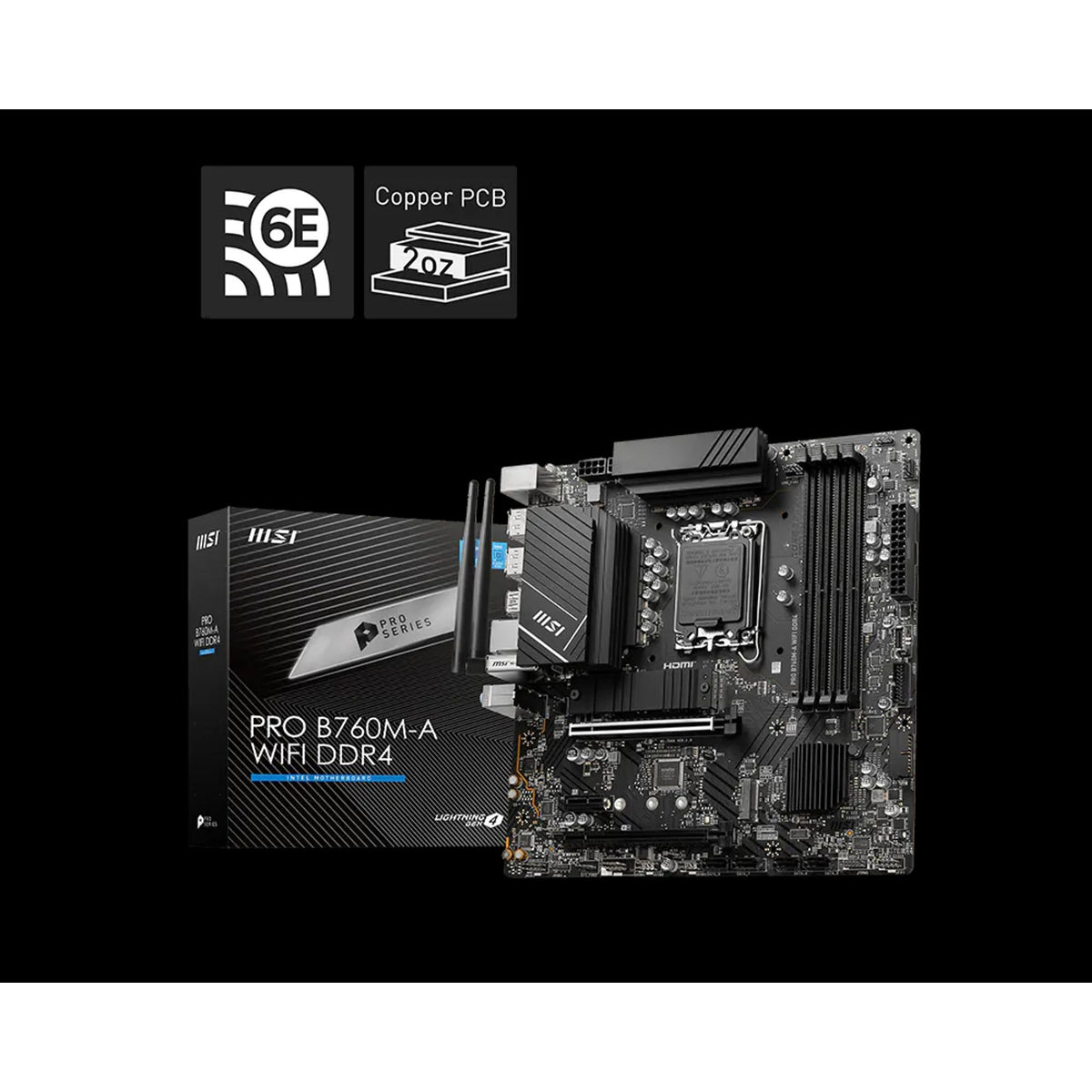

MSI PRO B760M-A WIFI DDR4 mATX Motherboard 4x DDR4 2x PCI-E x16 2x M.2

The MSI PRO B760M-A WIFI is a versatile mATX motherboard designed for modern computing needs with support for both 12th and 13th generation Intel Core processors. It features:

Display

• 2x HDMI ports
• 2x DisplayPort ports (Supports up to 4K 60Hz resolution)

Performance

• Chipset: Intel B760
• CPU Support: 12th/13th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket
• Memory: 4x DDR4 slots with a maximum capacity of 128GB (Dual Channel DDR4 5333+MHz OC)
• Expansion Slots:
  • 2x PCI-E x16 slots
  • 1x PCI-E x1 slot
• PCIe Support:
  • PCI_E1: PCIe 4.0 up to x16 (From CPU)
  • PCI_E2: PCIe 3.0 up to x1 (From chipset)
  • PCI_E3: PCIe 4.0 up to x4 (From chipset)

Storage

• M.2 Slots:
  • M.2_1 supports up to PCIe 4.0 x4, supporting devices of size 2280/2260/2242
  • M.2_2 supports up to PCIe 4.0 x4 / SATA mode, supporting devices of size 2280/2260/2242
• SATA Ports: 4x SATA 6G ports

Connectivity

• USB Ports:
  • Rear: 2x USB 2.0, 2x USB 3.2 Gen1 Type A, 2x USB 3.2 Gen2 Type A
  • Front: 4x USB 2.0, 4x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C
• Internal I/O:
  • Power Connectors: ATX_PWR (1x), CPU_PWR (2x)
  • Fan Connectors: CPU Fan, Pump Fan, System Fans (2x each)
  • Front Panel: JFP
  • Chassis Intrusion: JCI
  • Audio: JAUD
  • Com Port: JCOM
  • Addressable V2 RGB LED connector: 2x JARGB_V2, 1x JRGB
  • TPM pin header (Supports TPM 2.0)
  • USB Connectors: 4x USB 2.0, 4x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C

Operating System Support:

• Windows® 11 64-bit
• Windows® 10 64-bit

The MSI PRO B760M-A WIFI is an ideal choice for building a compact, high-performance PC.
