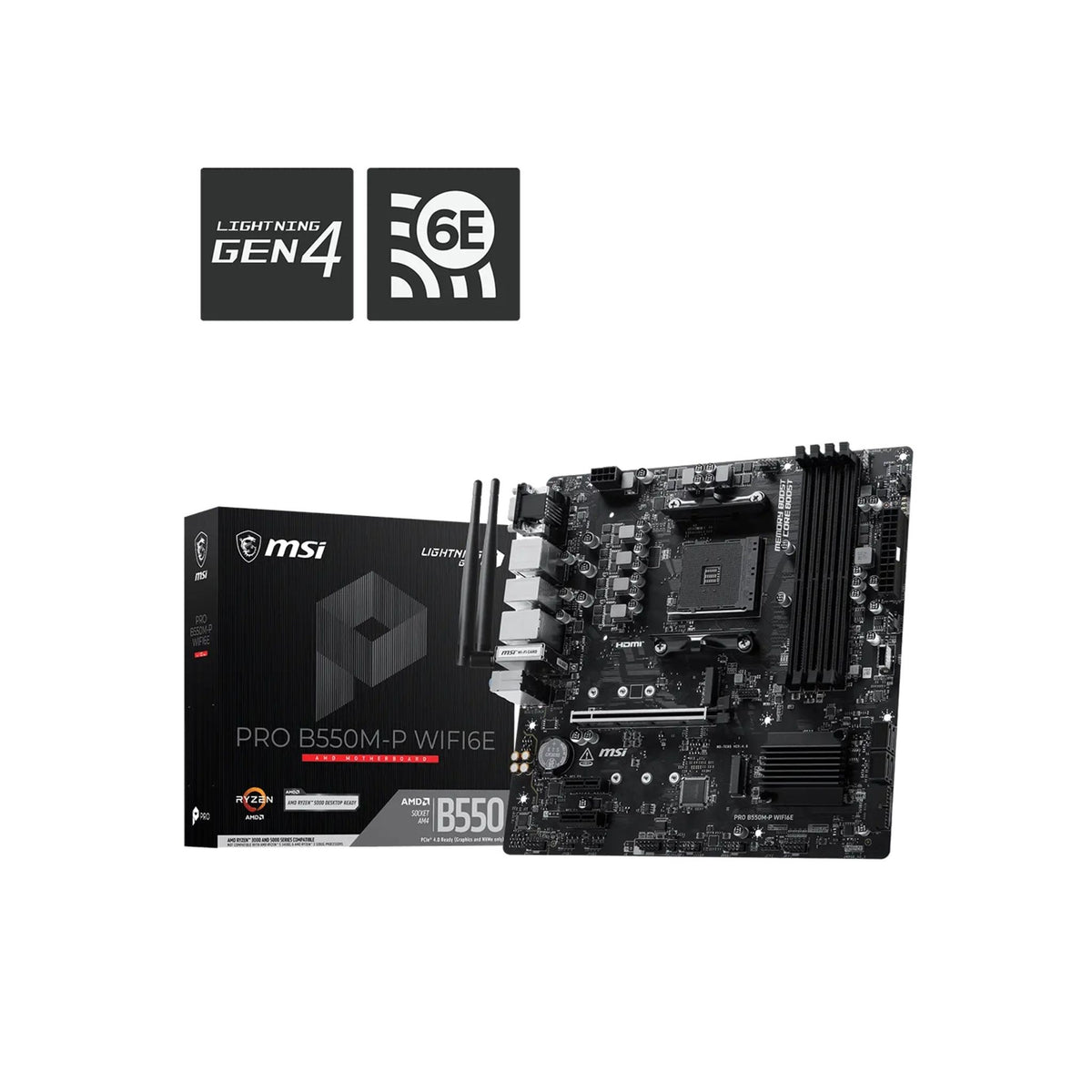

MSI PRO B550M-P WIFI6E AMD B550 AM4 DDR4 128GB PCIe 4.0 2x M.2 Wi-Fi 6E USB-C

The MSI PRO B550M-P WIFI6E is a robust motherboard designed for AMD Ryzen™ processors. It features PCIe 4.0 M.2 slots and Wi-Fi 6E connectivity, making it ideal for high-performance computing needs.

Chipset

• AMD B550

CPU Support

• AMD Ryzen™ 5000 series processors (not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G)
• AMD Ryzen™ 4000 G-Series desktop processors

Sockets & Memory

• Socket AM4
• Memory: 4x DDR4 slots, Maximum Capacity: 128GB
• Supported Speeds: DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz
• Overclocking: A-XMP OC mode, Max overclocking frequency varies by configuration (up to 4400+ MT/s)

Graphics Support

• HDMI™: HDMITM 2.1, maximum resolution of 4K 60Hz*
• DisplayPort: DP 1.4, maximum resolution of 4K 60Hz*
• VGA: Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz

SLOTS

• PCI-E x16 slot: PCIe 4.0 supports up to x16 (From CPU)
• PCI-E x1 slots: 2x PCIe 3.0 supports up to x1 each (From Chipset)

AUDIO

• Realtek® ALC897 Codec, 7.1-Channel High Definition Audio

Storage

• M.2:
  • M.2_1 (From CPU) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
  • M.2_2 (From Chipset) supports up to PCIe 3.0 x4 , supports 2280/2260/2242 devices
• SATA: 4x SATA 6G ports
• RAID: Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices; RAID 0 and RAID 1 for M.2 NVMe storage devices

Connectivity

• USB:
  • 2x USB 2.0 (Rear)
  • 4x USB 2.0 (Front)
  • 4x USB 5Gbps Type A (Rear)
  • 2x USB 5Gbps Type A (Front)
  • 1x USB 5Gbps Type C (Front)
• Lan: Realtek® RTL8111H, 1Gbps LAN
• Wireless: Wi-Fi 6E with Dual-band 1T1R mode and Bluetooth® 5.3

OS Support

• Windows® 11 64-bit, Windows® 10 64-bit
