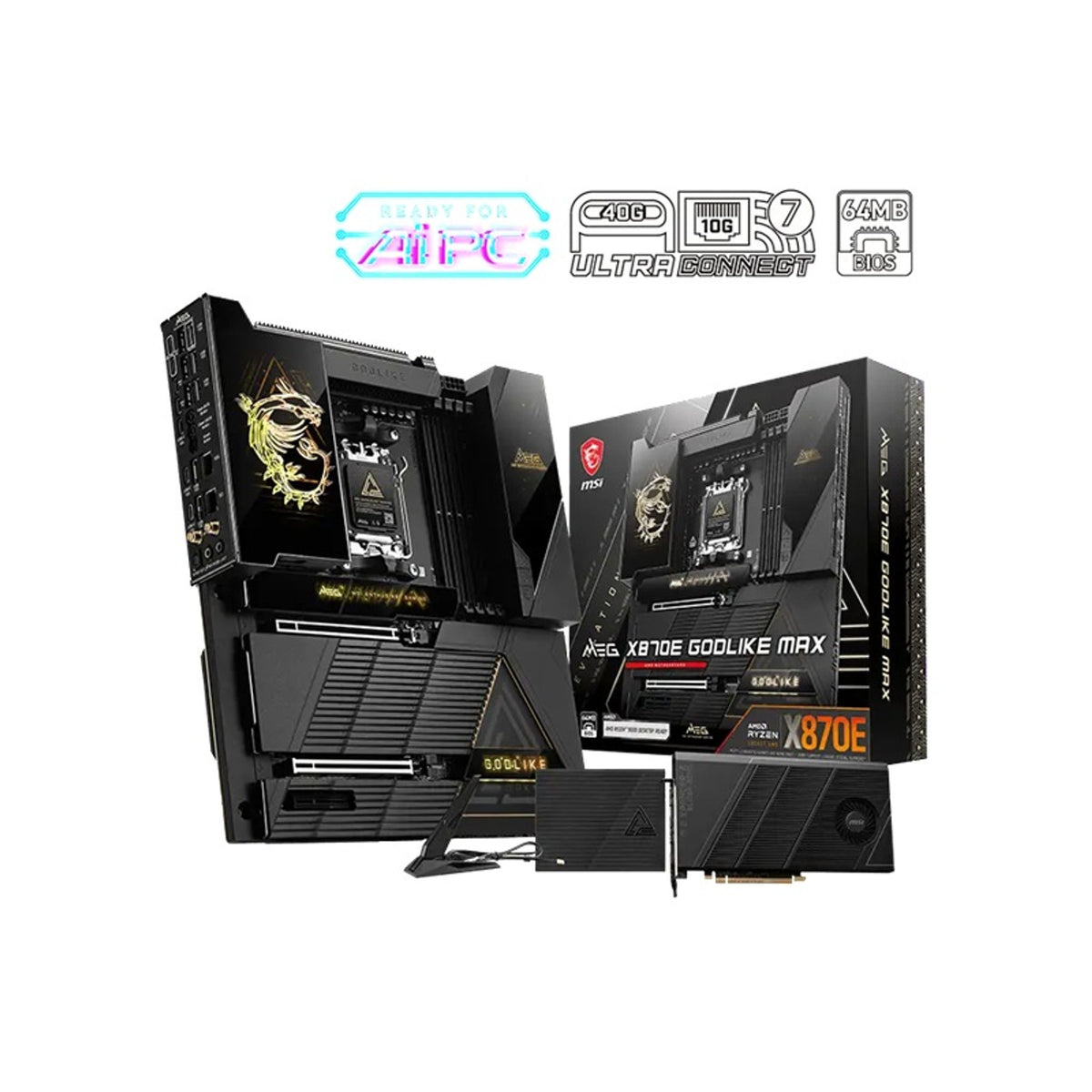

MSI MEG X870E GODLIKE MAX AM5 DDR5 PCIe 5.0 Wi-Fi 7 USB4 10G+5G LAN

The MSI MEG X870E GODLIKE MAX is a high-end motherboard designed for AMD Ryzen processors and equipped with advanced features to enhance performance and user experience.

Display Interface

• 2 x USB4 ports support USB Type-C display output (requires processor graphics)

Performance

• CPU Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
• Chipset: AMD X870E
• Expansion Slots: 1x PCIe 5.0 x16 slot, 1x PCIe 5.0 x8 slot, 1x PCIe 4.0 x4 slot
• Memory Support: 4 DIMMs, Dual Channel DDR5 - 9200+MT/s (OC)
• Storage:
  • 2 x M.2 Gen5 x4 128Gbps slots
  • 2 x M.2 Gen5 x4 128Gbps slots via M.2 card
  • 2 x M.2 Gen4 x4 64Gbps slots
  • 1 x M.2 Gen4 x2 32Gbps slot
  • 4 x SATA 6Gbps ports
• USB Ports:
  • 2 x USB 40Gbps (Type-C)
  • 1 x USB 20Gbps (Type-C)
  • 14 x USB 10Gbps (8 Type-A + 6 Type-C)
  • 4 x USB 5Gbps (Type-A)
  • 4 x USB 2.0
• Lan:
  • 1 x Marvell® AQC 10Gbps LAN
  • 1 x Realtek® 5Gbps LAN
• Wi-Fi / BT: Wi-Fi 7 Solution, Bluetooth 5.4
• Audio: 8-Channel (7.1) USB High Performance Audio with Audio Boost 5 HD

Features

• Dynamic Dashboard III: A 3.99-inch LCD for real-time hardware monitoring, troubleshooting, BIOS updates, and personalized display options.
• EZ Link: Simplifies cable management by consolidating front panel, fan, and ARGB headers into the EZ Bridge and EZ Control Hub.
• M.2 XPANDER-Z SLIDER GEN5: Dual high-speed Gen5 M.2 slots with an EZ Slide design for easy SSD upgrades.
• Ultra Power +: 24+2+1 DRPS, 110A SPS, and OC Engine technology to unleash maximum CPU performance.
• Frozr Design: Wavy Fin Design, Direct Touch Cross Heat-pipe, Aluminum Cover, Double-sided M.2 Shield Frozr, Metal Backplate and Frozr AI software for low temperature operation.
• 64MB BIOS: Larger BIOS ROM capacity for better compatibility with next-level CPU upgrades.
