Save 5%
MSI

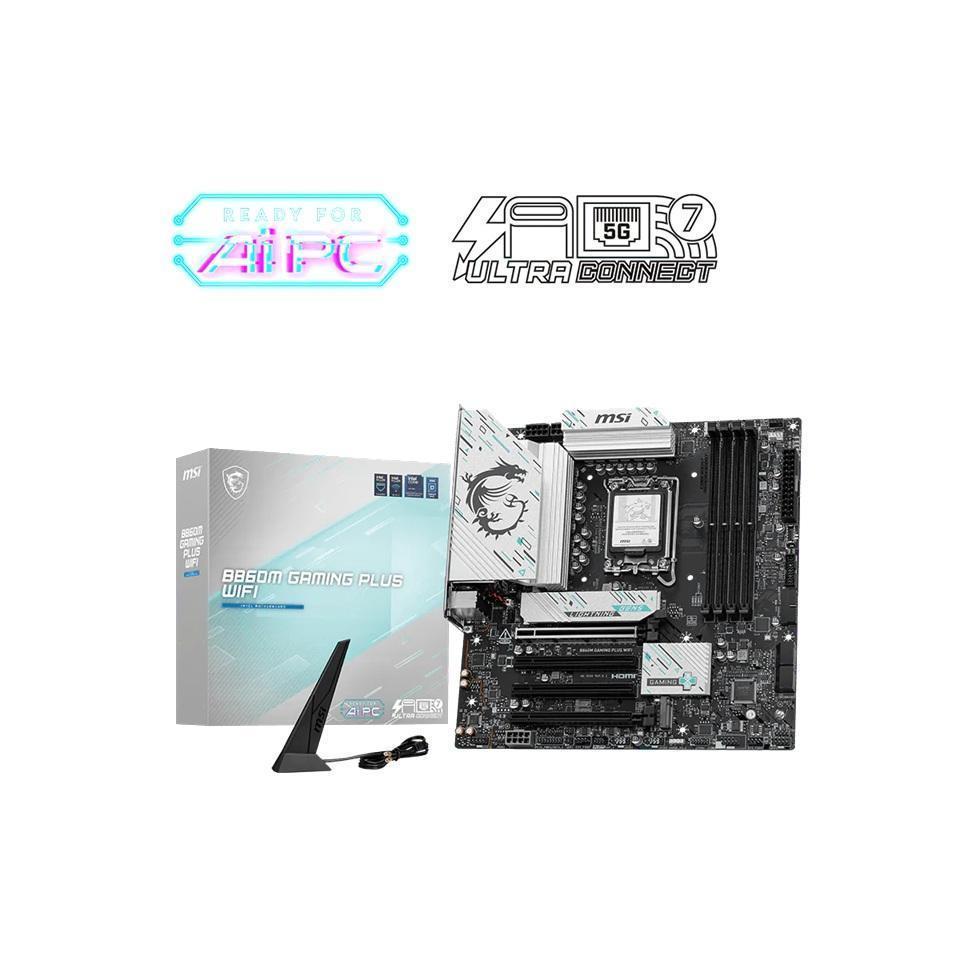

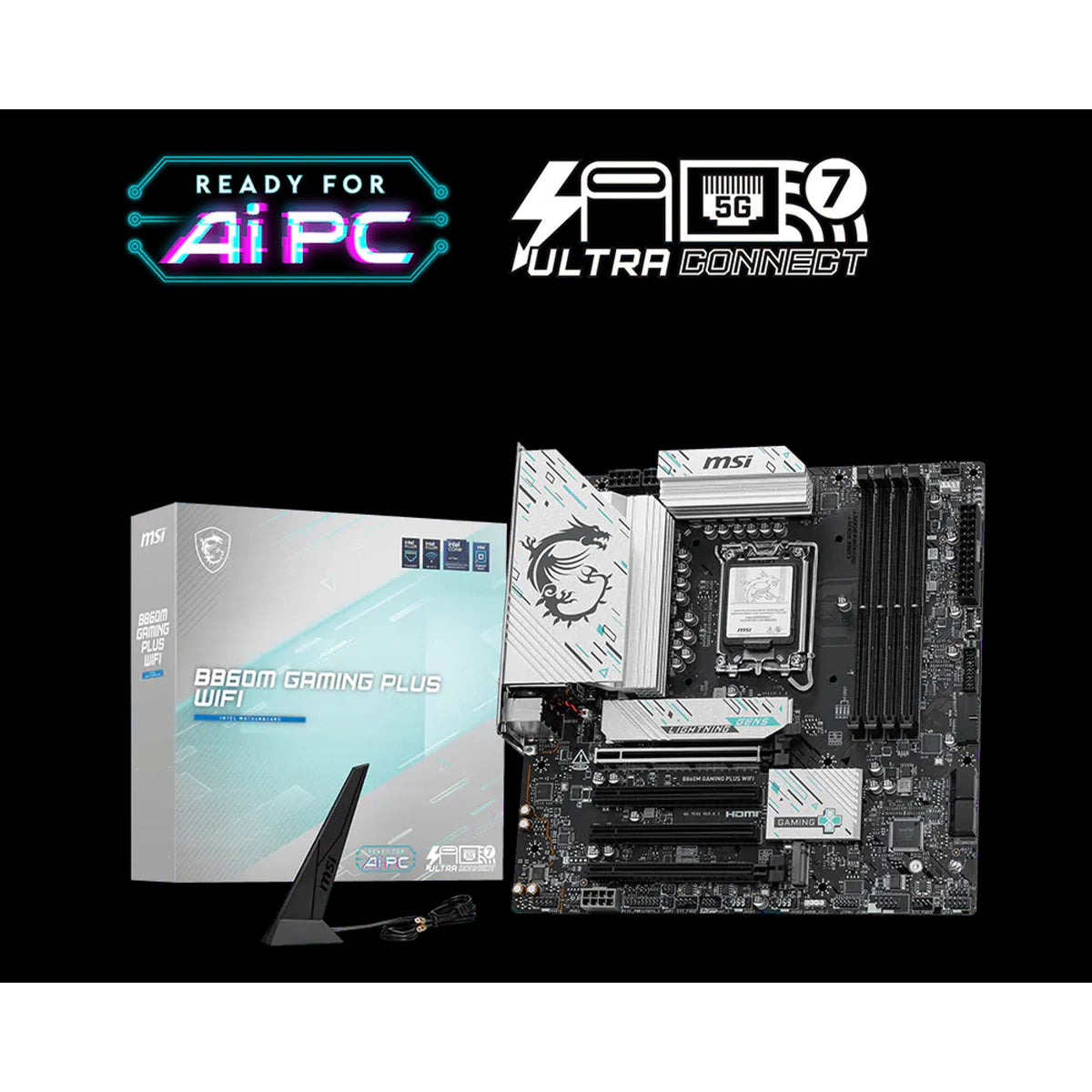

MSI B860M GAMING PLUS WIFI INTEL B860 4x DDR5 3x M.2 4x PCI-E x16 Motherboard WiFi 7
Regular price
Sale price
$292.29
Regular price
$309.00
Tax included.
Shipping calculated at checkout.
Available in stock (153)
Couldn't load pickup availability
Downloads
Downloads
- Product Brochure · Datasheet, PDF
- B860M GAMING PLUS WIFI · Datasheet, PDF
- User manual · PDF
Specifications
Specifications
Processor
| Processor Socket | LGA 1851 |
|---|
Memory
| Memory Technology | DDR5 |
|---|
Motherboard
| Motherboard Form Factor | Micro-ATX |
|---|---|
| Motherboard Chipset Family | Intel |
Expansion & Slots
| Expansion Slot Types | M.2, PCIe |
|---|
Ports & Connectivity
| Wi-Fi Standard | 802.11ax, 802.11ac, 802.11a, 802.11n, 802.11g, 802.11b |
|---|---|
| USB Standard | USB 2.0, USB4, USB 1.0, USB 3.2 gen 2x1 |
| USB Connector Type | USB Type-A, USB Type-C |
Dimensions
| Length | 284 mm |
|---|---|
| Width | 276 mm |
| Height | 74 mm |
Other
| Series | Gaming Plus |
|---|---|
| Colour | White |
Product Details
Product Details
The MSI B860M GAMING PLUS WIFI is a compact mATX motherboard designed for Intel Core Ultra processors with LGA 1851 socket support. It features:
Display
- 1x HDMI™ (Supports HDMI™ 2.1, maximum resolution of 4K 60Hz)
- 1x DisplayPort (Supports DisplayPort 1.4, maximum resolution of 4K 60Hz)
- 1x Type-C DisplayPort
Performance
- Intel® B860 chipset
- Support for up to 256GB DDR5 memory (4x UDIMM slots)
Connectivity
- 4x PCI-E x16 slots
- 3x M.2 slots
- 4x SATA ports
- USB: 6x USB 2.0, 5x USB 5Gbps Type A/C, 2x USB 10Gbps Type A/C
- Intel® Killer™ BE1750x Wi-Fi 7 chipset with Bluetooth support
Operating System
- Support for Windows® 11 64-bit
The motherboard measures 243.84mm x 243.84mm.
Warranty
Warranty
Manufacturer warranty 36 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
