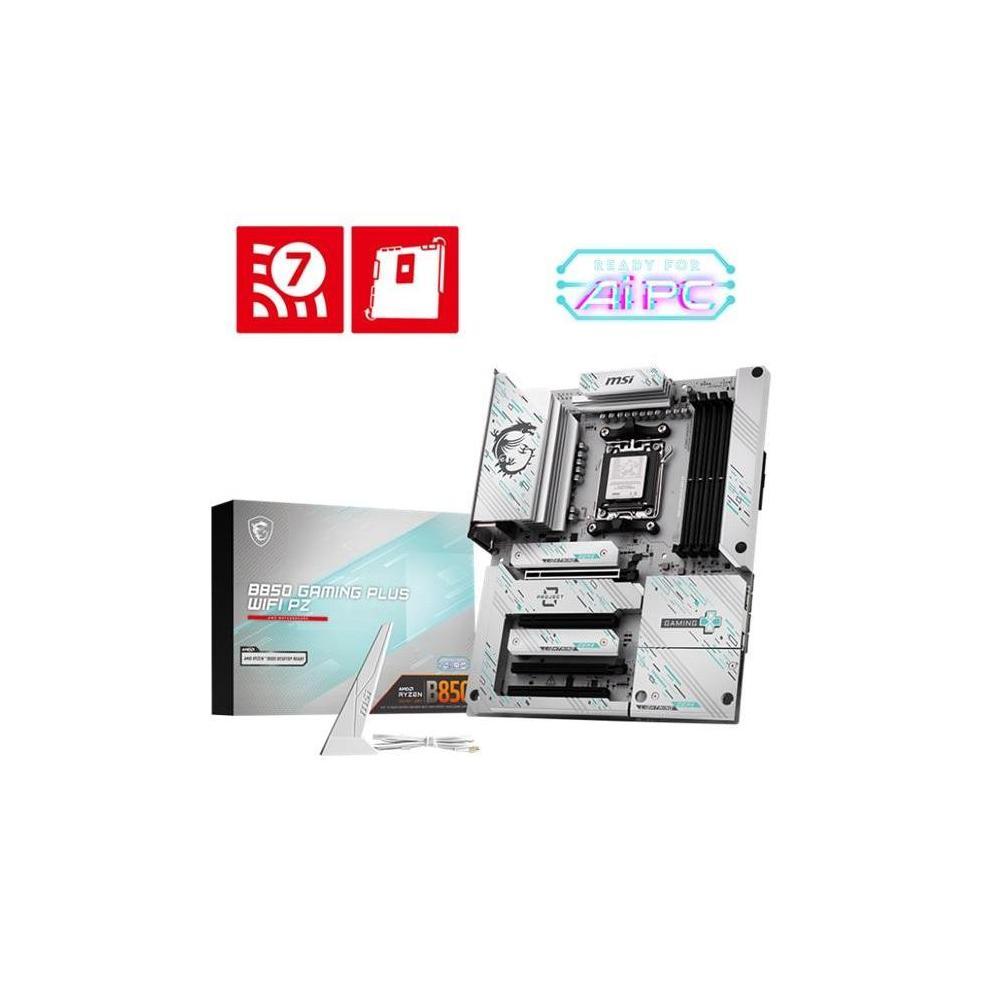

MSI B850 GAMING PLUS WIFI PZ 4x DDR5 3x M.2 4x PCIe x16 WiFi 7 Motherboard
Regular price
$380.16
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (48)
Couldn't load pickup availability
Specifications
Specifications
Processor
| Processor Socket | Socket AM5 |
|---|
Memory
| Memory Technology | DDR5 |
|---|
Motherboard
| Motherboard Form Factor | ATX |
|---|---|
| Motherboard Chipset Family | AMD |
Expansion & Slots
| Expansion Slot Types | SATA, M.2, PCIe |
|---|
Ports & Connectivity
| Wi-Fi Standard | 802.11a, 802.11ac, 802.11n, 802.11g, 802.11b, 802.11ax |
|---|---|
| USB Connector Type | USB Type-C, USB Type-A |
Dimensions
| Length | 344 mm |
|---|---|
| Width | 74 mm |
| Height | 268 mm |
Other
| Colour | Black |
|---|
Product Details
Product Details
The MSI B850 GAMING PLUS WIFI PZ is a high-performance motherboard designed for AMD Ryzen processors with support for DDR5 memory and advanced connectivity options.
Chipset
- AMD B850
CPU Support
- AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
- Socked AM5
Memory
- 4x DDR5 UDIMM, Maximum Memory Capacity: 256GB
- Supports Dual-Channel mode
- Non-ECC, Un-buffered memory
- CUDIMM, Clock Driver bypass mode only*
Graphics
- 1x DisplayPort Support: DisplayPort 1.2, maximum resolution of 4K 60Hz*
SLOTs
- 4x PCIe x16 slot
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.2 Slots
- 3x M.2: Supports various configurations depending on the CPU series
SATA Ports
- 4x SATA 6G
RAID Support
- RAID 0, RAID 1 and RAID 10 for SATA storage devices
- RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices (only supported by Ryzen™ 9000 Series Processors)
USB Ports
- 4x USB 2.0 (Rear/Front)
- 1x USB 5Gbps Type A (Rear), 4x USB 5Gbps Type A (Front), 1x USB 5Gbps Type C (Front)
- 1x USB 10Gbps Type A (Rear), 2x USB 10Gbps Type C (Rear)
Lan and Wireless
- Realtek® 8126VB 5G LAN
- Wi-Fi 7 Solution: MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
- Bluetooth® 5.4**, MLO, 4KQAM
Internal IO
- Variety of connectors for power, fans, audio, USB ports, and RGB LED control
Warranty
Warranty
Manufacturer warranty 36 Months
