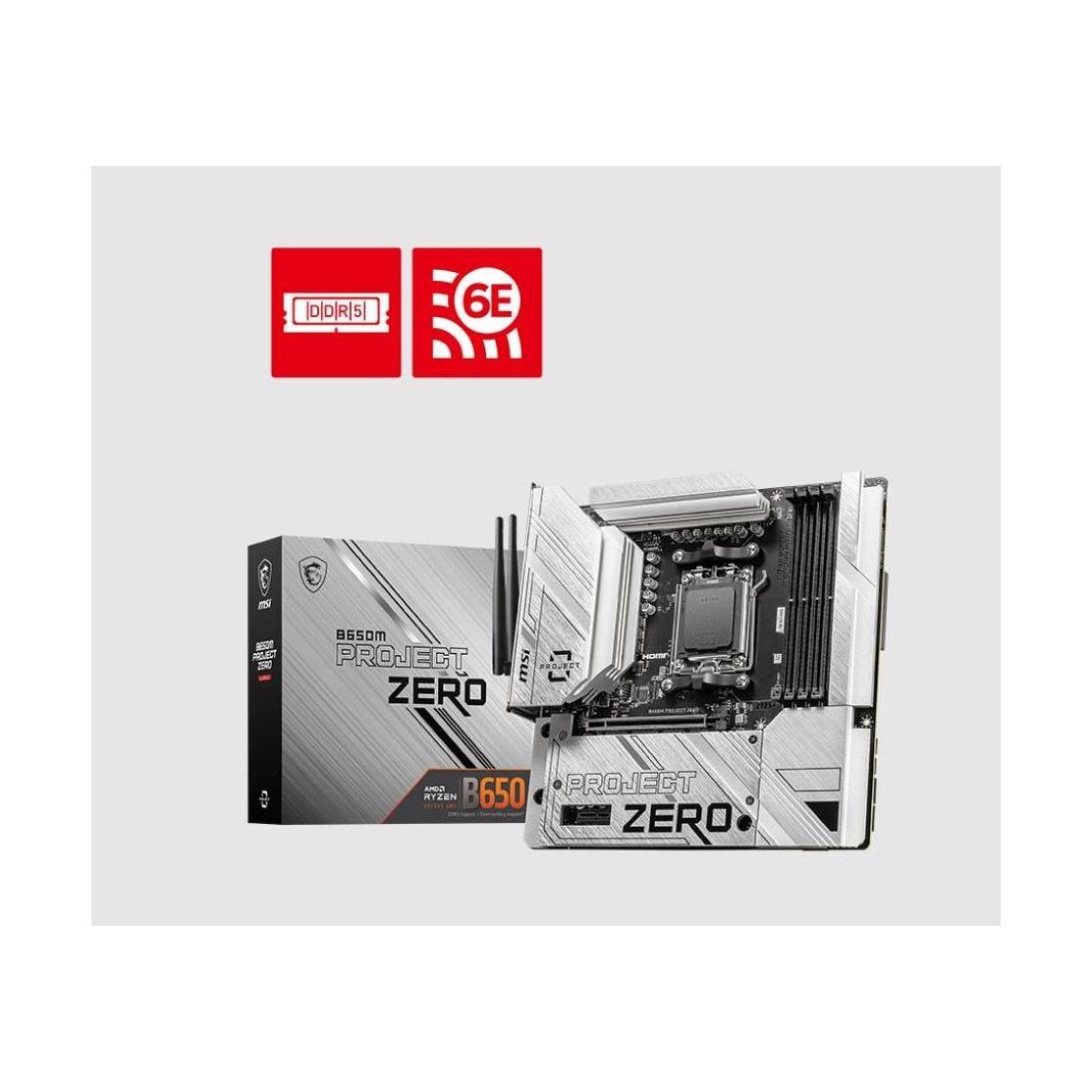

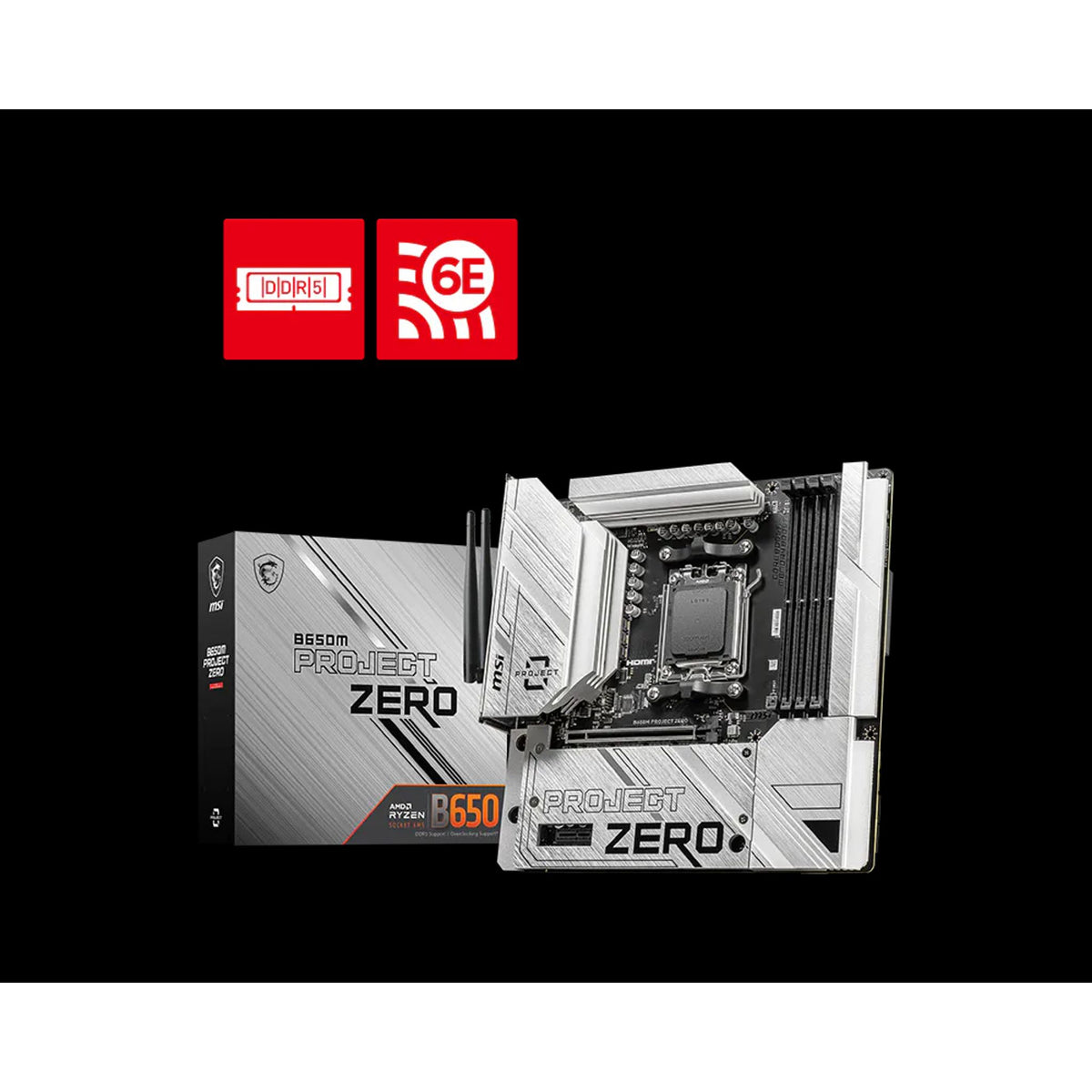

MSI B650M PROJECT ZERO Motherboard AMD B650 4x DDR5 128GB 2x M.2 HDMI USB 3.2
Out of stock
Couldn't load pickup availability
Specifications
Specifications
Processor
| Processor Socket | Socket AM5 |
|---|
Memory
| Memory Technology | DDR5 |
|---|
Motherboard
| Motherboard Form Factor | Micro-ATX |
|---|---|
| Motherboard Chipset Family | AMD |
Expansion & Slots
| Expansion Slot Types | PCIe, M.2 |
|---|
Ports & Connectivity
| Wi-Fi Standard | 802.11ax |
|---|---|
| USB Standard | USB 3.2 gen 2x1, USB4, USB 2.0, USB 1.0 |
| USB Connector Type | USB Type-A, USB Type-C |
Dimensions
| Length | 282 mm |
|---|---|
| Width | 276 mm |
| Height | 82 mm |
Other
| Series | Project Zero |
|---|---|
| Colour | Silver |
Product Details
Product Details
The MSI B650M PROJECT ZERO Motherboard is designed for AMD Ryzen™ 7000 Series Desktop Processors and supports up to 128GB of DDR5 memory at speeds up to 6400+(OC) MHz. It features a range of connectivity options, including HDMI and DisplayPort outputs supporting resolutions up to 4K 60Hz (HDMI) and 8K 60Hz (DisplayPort).
Performance
- CPU Support: AMD Ryzen™ 7000 Series Desktop Processors, Socket AM5
- MEMORY: 4x DDR5 slots with a maximum capacity of 128GB
Display
- HDMI: 1x HDMI™ supporting HDMITM 2.1 with HDR, up to 4K 60Hz resolution
- DisplayPort: 1x DisplayPort supporting DP 1.4, up to 8K 60Hz resolution
Expansion Slots
- PCI-E x16 slots: 2x PCI-E x16 slot (Supports x16/x4)
- PCI-E x1 slot: 1x PCI-E x1 slot
Storage
- M.2 slots: 2x M.2 slots supporting PCIe 4.0 x4, supports 2280/2260 devices
- SATA ports: 6x SATA 6G ports
Connectivity
-
USB:
- 4x USB 2.0 (Front)
- 4x USB 3.2 Gen1 Type A (Rear), 2x USB 3.2 Gen1 Type A (Front)
- 3x USB 3.2 Gen2 Type A (Rear), 1x USB 3.2 Gen2 Type C (Front)
- 1x USB 3.2 Gen2x2 Type C (Rear)
The motherboard is designed in a mATX form factor with dimensions of 243.84mm x 243.84mm.
