GIGABYTE
Gigabyte X870 AORUS ELITE WF7 AMD AM5 ATX Motherboard 4x DDR5 4x M.2 3x PCIe x16
Available in stock (34)
Couldn't load pickup availability
Specifications
Specifications
Processor
| Processor Socket | Socket AM5 |
|---|
Memory
| Memory Technology | DDR5 |
|---|
Motherboard
| Motherboard Form Factor | ATX |
|---|---|
| Motherboard Chipset Family | AMD |
Expansion & Slots
| Expansion Slot Types | M.2, PCIe |
|---|
Ports & Connectivity
| USB Standard | USB 2.0, USB 3.2 gen 2x2, USB 3.2 gen 2x1, USB 3.1 gen 1 |
|---|---|
| USB Connector Type | USB Type-C, USB Type-A |
Dimensions
| Length | 340 mm |
|---|---|
| Width | 274 mm |
| Height | 82 mm |
Other
| Series | AORUS ELITE WF7 |
|---|---|
| Colour | White, Black |
Product Details
Product Details

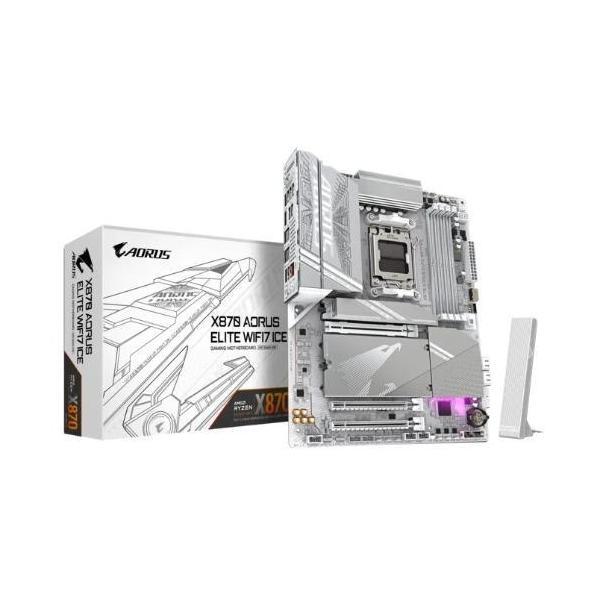

The Gigabyte X870 AORUS ELITE WF7 is an advanced AMD AM5 ATX motherboard designed for high-performance computing. It supports up to 256GB of DDR5 memory and features a robust set of connectivity options.
Performance
- CPU socket: AMD Socket AM5
- Supported processors: AMD Ryzen™ 9000 Series, Ryzen™ 8000 Series, Ryzen™ 7000 Series
- Chipset: AMD X870
Memory
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)
Connectivity
- LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- AUDIO: Realtek® ALC1220 CODEC
- SATA ports: 6
- M.2 slots: 4
- PCIe x16 slots: 3
- USB ports: 4x USB 3.2, 4x USB2.0, 2x USB-C
Bundled Software
- Norton® Internet Security (OEM version)
- LAN bandwidth management software
Unique Features
- Support for GIGABYTE Control Center (GCC) with available applications varying by motherboard model.
- Q-Flash and Q-Flash Plus support
- Smart Backup feature
The Gigabyte X870 AORUS ELITE WF7 is compatible with Windows 11 64-bit operating system. Form factor: ATX, dimensions: 30.5cm x 24.4cm.
