GIGABYTE

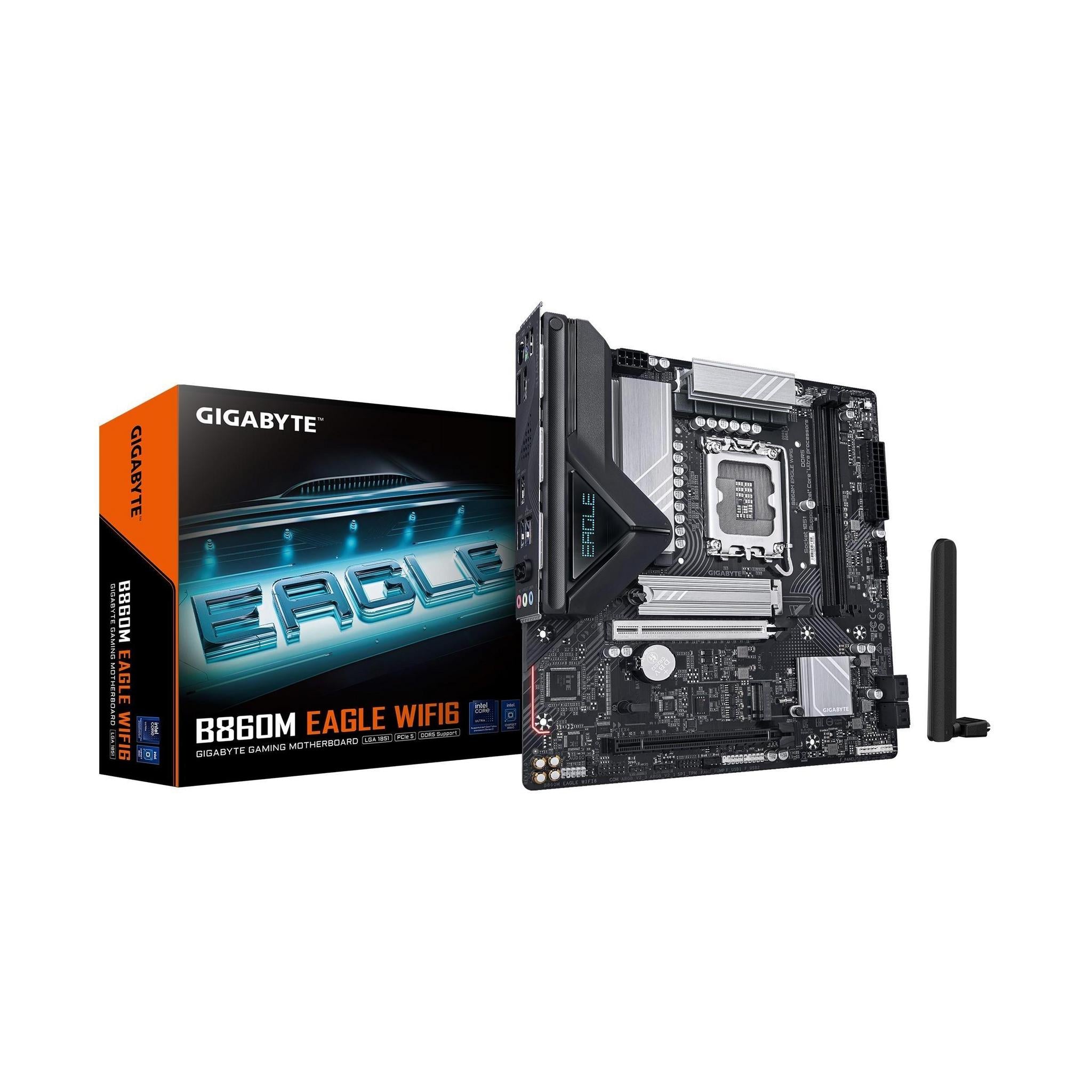

Gigabyte B860M EAGLE WIFI6 2x DDR5 2x M.2 microATX Motherboard
Regular price
Sale price
$208.99
Regular price
$261.36
Tax included.
Shipping calculated at checkout.
Out of stock
Couldn't load pickup availability
Specifications
Specifications
Memory
| Memory Technology | DDR5 |
|---|
Motherboard
| Motherboard Form Factor | Micro-ATX |
|---|---|
| Motherboard Chipset Family | Intel |
Expansion & Slots
| Expansion Slot Types | SATA, M.2, PCIe |
|---|
Ports & Connectivity
| Wi-Fi Standard | 802.11ax |
|---|---|
| USB Standard | USB 3.1 gen 1, USB 3.2 gen 1x1, USB 3.2 gen 2, USB 3.2 gen 2x1 |
| USB Connector Type | USB Type-A |
Case & Build
| Material | Metal |
|---|
Dimensions
| Length | 275 mm |
|---|---|
| Width | 275 mm |
| Height | 70 mm |
Other
| Series | EAGLE |
|---|---|
| Colour | Black, Gray |
Product Details
Product Details
The Gigabyte B860M EAGLE WIFI6 is a compact microATX motherboard designed for Intel Core Ultra processors featuring dual-channel DDR5 memory support and advanced connectivity options.
Display
- 1x HDMI port (HDCP 2.3, up to 4096x2160@60 Hz)
- 1x DisplayPort (up to 3840x2160@144 Hz)
Performance
- Intel B860 Express Chipset
- LGA1851 socket for Intel Core Ultra processors
- Dual-channel DDR5 memory support (up to 128 GB, 64 GB single DIMM capacity)
- PCIe 5.0 x16 slot (CPU) and PCIe 4.0 x4 slot (chipset)
- M.2 Socket 3 connectors for NVMe SSDs
Storage
- 2x M.2 slots: PCIe 5.0 x4/x2 (CPU) and PCIe 4.0 x4/x2 (chipset)
- 4x SATA 6Gb/s connectors supporting RAID 0, 1, 5, and 10
Connectivity
- Realtek 2.5GbE LAN chip
- Realtek Wi-Fi 6 RTL8851BE module
- USB ports: 1x USB Type-C (Gen 1), 5x USB 3.2 Gen 1, and 3x USB 2.0/1.1 on the back panel
Warranty
Warranty
Manufacturer warranty 36 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
