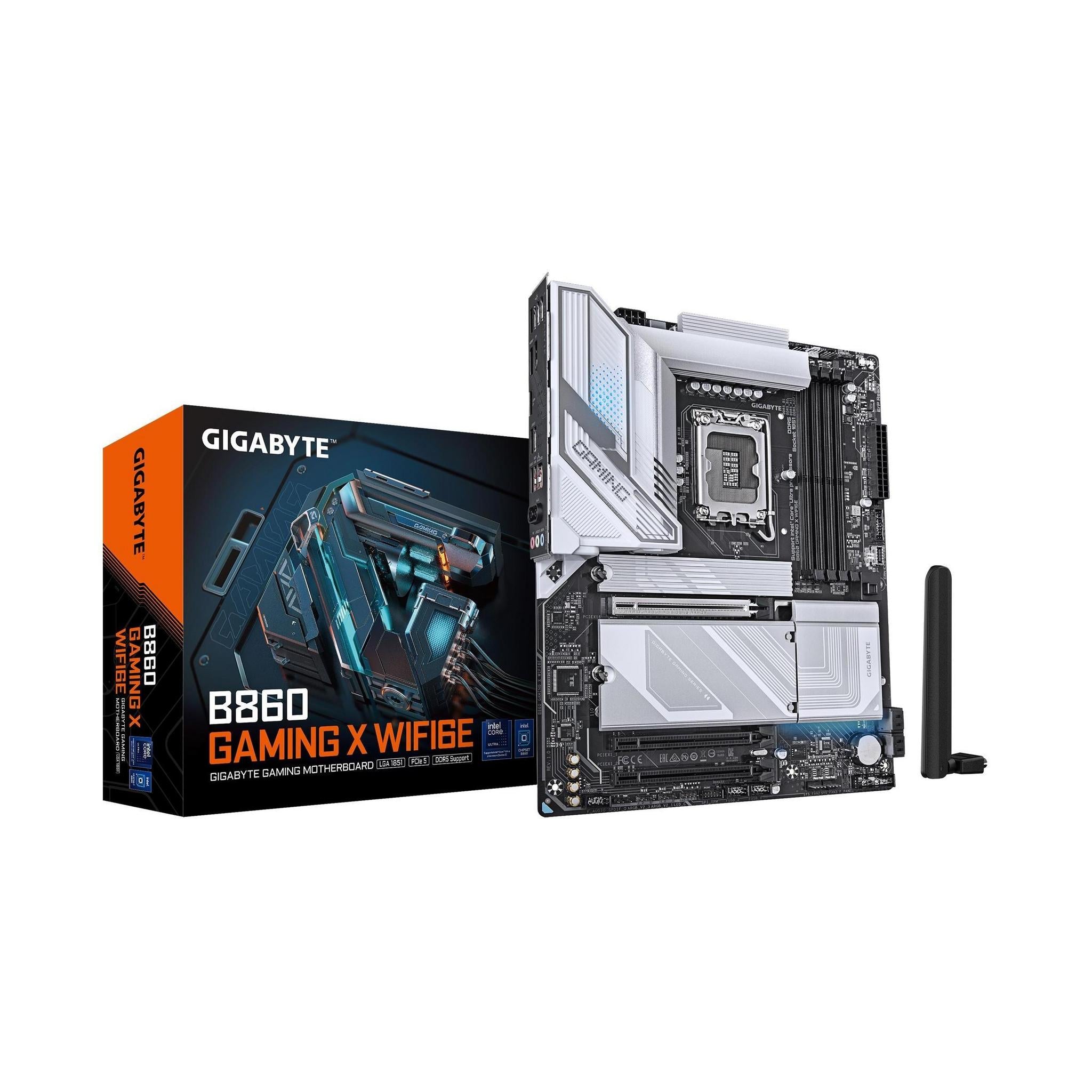

Gigabyte B860 GAMING X WiFi 6E 4x DDR5 3x M.2 ATX Motherboard

The Gigabyte B860 GAMING X WiFi 6E is an advanced ATX motherboard designed for high-performance computing and gaming. It supports Intel Core Ultra processors with LGA1851 socket compatibility.

Display

• 1 x USB4® USB Type-C® port supporting DisplayPort video outputs up to 3840x2160@144 Hz
• 1 x HDMI port supporting a maximum resolution of 4096x2160@60 Hz
• 1 x DisplayPort supporting a maximum resolution of 3840x2160@144 Hz
• Support for triple-display configuration simultaneously

Performance

• Intel B860 Express Chipset
• Supports DDR5 memory up to 9066 MT/s (overclocked)
• Dual channel memory architecture with ECC support for Un-buffered DIMM modules
• 1 x PCI Express x16 slot supporting PCIe 5.0 running at x16
• 2 x PCI Express x16 slots supporting PCIe 4.0 running at x1 each

Storage

• 1 x M.2 connector (Socket 3, M key) for PCIe 5.0 x4/x2 SSD support
• 2 x M.2 connectors (Socket 3, M key) for PCIe 4.0 x4/x2 SSD support
• 4 x SATA 6Gb/s connectors supporting RAID configurations

Connectivity

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Intel Wi-Fi 6E AX211 module
• USB4® USB Type-C® port on the back panel supporting DisplayPort video outputs
• 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• 4 x USB 3.2 Gen 1 ports, with 2 available through internal headers
• 9 x USB 2.0/1.1 ports, with 5 on the back panel and 4 available through internal headers
