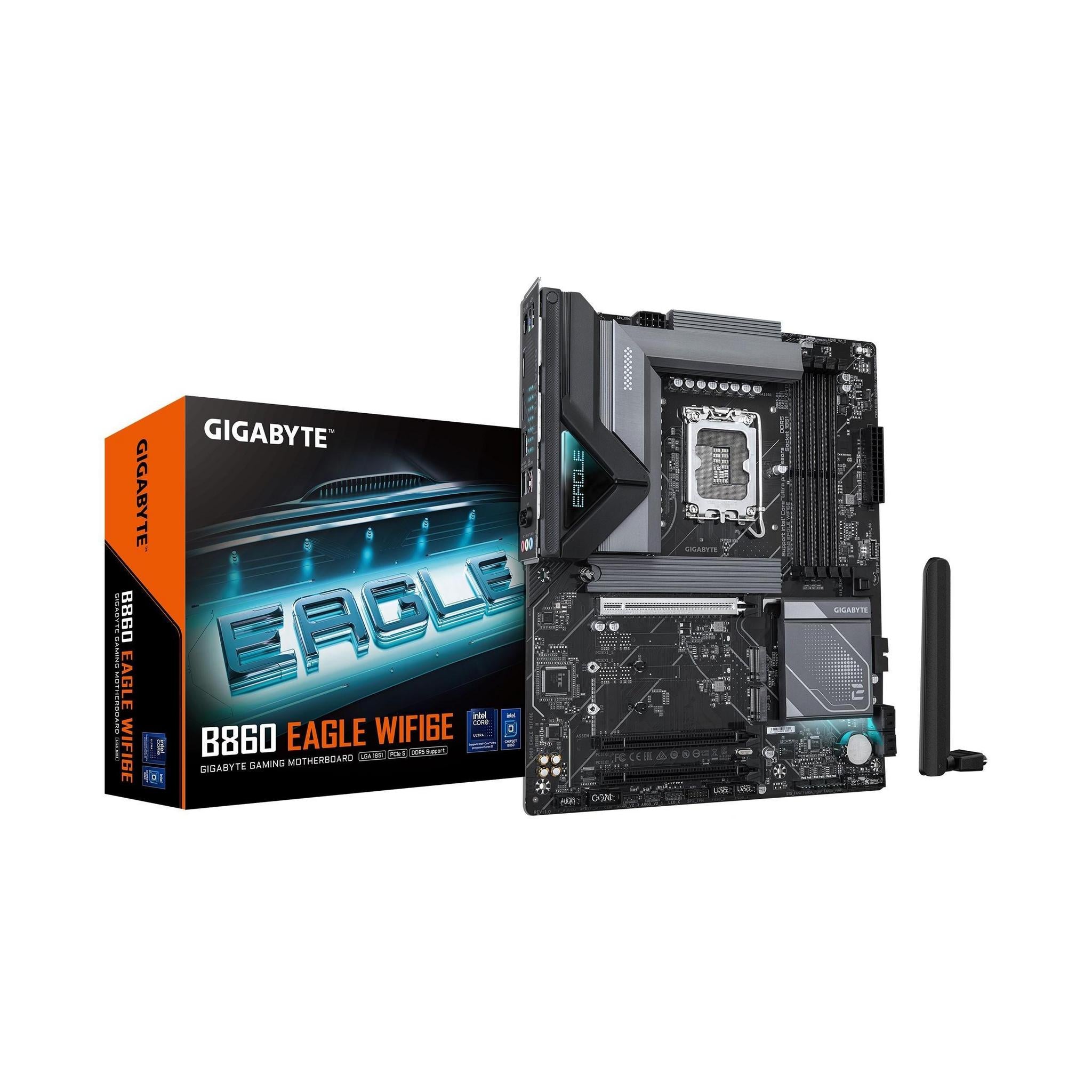

Gigabyte B860 EAGLE WIFI6E 4x DDR5 3x M.2 ATX Motherboard

The Gigabyte B860 EAGLE WIFI6E is an advanced ATX motherboard designed for high-performance computing with support for Intel Core Ultra processors and DDR5 memory technology. It features a robust set of connectivity options and expansion slots to accommodate various storage and graphics configurations.

Display

• HDMI port supporting up to 4096x2160@60 Hz (HDCP 2.3)
• DisplayPort supporting up to 3840x2160@144 Hz

Performance

• LGA1851 socket for Intel Core Ultra processors
• Intel B860 Express Chipset
• Dual channel memory architecture with ECC support
• Supports up to 256 GB of DDR5 RAM (64 GB single DIMM capacity)

Storage

• 1 x M.2 connector for PCIe 5.0x4/x2 SSDs (CPU socket)
• 2 x M.2 connectors for PCIe 4.0x4/x2 SSDs (Chipset sockets)
• 4 x SATA 6Gb/s connectors supporting RAID configurations

Connectivity

• Realtek 2.5GbE LAN chip
• Intel Wi-Fi 6E AX211 wireless module
• USB Type-C port with USB 3.2 Gen 2x2 support
• Multiple USB ports including USB 3.2 and USB 2.0/1.1 options

Expansion Slots

• 1 x PCI Express x16 slot for PCIe 5.0 (for graphics card or NVMe SSD)
• 2 x PCI Express x16 slots for PCIe 4.0 running at x1 speed

Note: For the latest CPU support and memory configuration details, visit Gigabyte's website.
