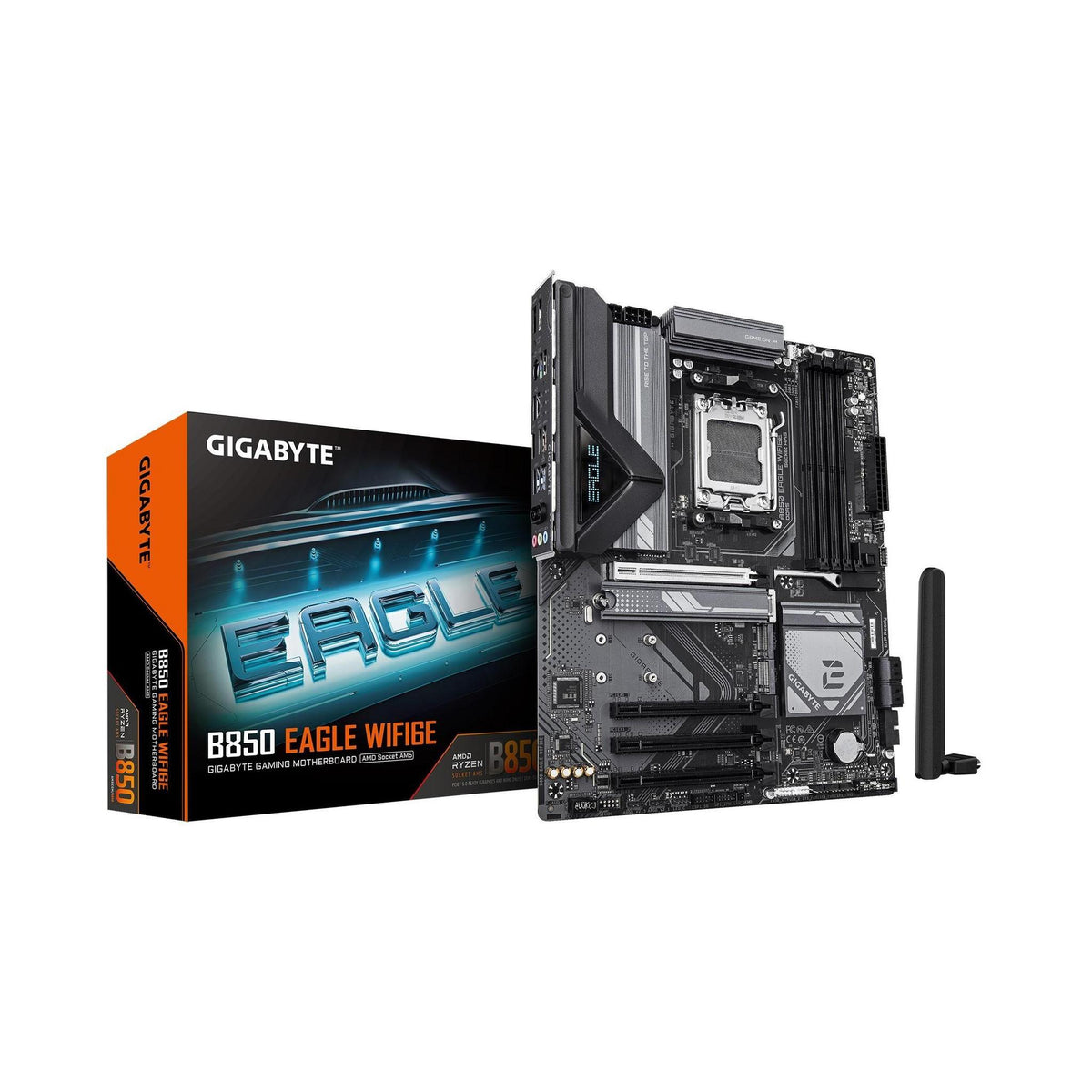

Gigabyte B850 EAGLE WIFI6E AMD AM5 4x DDR5 3x M.2 ATX Motherboard

The Gigabyte B850 EAGLE WIFI6E is an advanced motherboard designed for AMD AM5 sockets, supporting the latest Ryzen™ processors including the 9000, 8000, and 7000 series. It features:

Display

• 1 x DisplayPort supporting a maximum resolution of 3840x2160@144 Hz (DisplayPort 1.4)
• 1 x HDMI port supporting a maximum resolution of 4096x2160@60 Hz (HDMI 2.1 version, HDCP 2.3, HDR support)

Performance

• Supports up to 256 GB DDR5 memory in dual-channel configuration with speeds up to 8200 MT/s (OC)
• Integrated AMD Radeon™ Graphics supporting DisplayPort and HDMI outputs

Connectivity

• Realtek® GbE LAN chip for 1 Gbps/100 Mbps/10 Mbps connectivity
• Intel® Wi-Fi 6E AX210 wireless module (PCB rev. 1.0)

Expansion Slots

• 1 x PCI Express x16 slot supporting PCIe 5.0/x4/x8/x2 modes depending on the CPU model
• 3 x PCI Express x1 slots (PCIEX1_1, PCIEX1_2, PCIEX1_3) running at PCIe 3.0 x1 mode

Storage

• 3 x M.2 connectors supporting PCIe and SATA SSDs with varying speeds based on CPU model
• 4 x SATA 6Gb/s ports for RAID 0, 1, 5 (on Ryzen™ 9000 series), and 10 configurations

USB Ports

• CPU: 1 x USB Type-C® port with USB 3.2 Gen 1 support; 2 x USB 3.2 Gen 2 ports (red)
• Chipset: 4 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports
