GIGABYTE

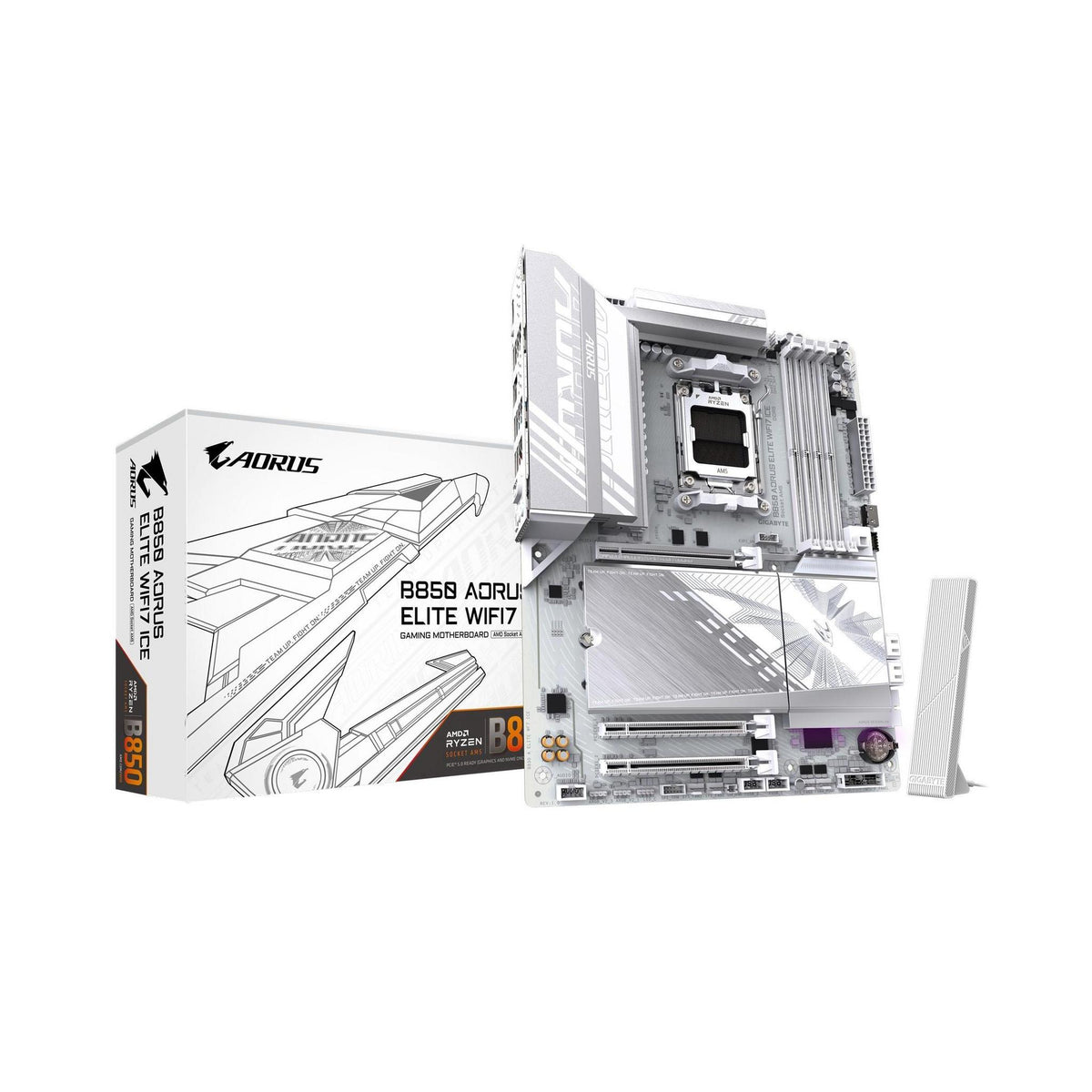

Gigabyte B850 A ELITE WF7 AMD AM5 3x M.2 1x HDMI Motherboard
Regular price
$493.02
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (50)
Couldn't load pickup availability
Specifications
Specifications
Motherboard
| Motherboard Chipset Family | AMD |
|---|
Expansion & Slots
| Expansion Slot Types | M.2, PCIe |
|---|
Dimensions
| Length | 340 mm |
|---|---|
| Width | 86 mm |
| Height | 276 mm |
Other
| Series | A ELITE WF7 |
|---|---|
| Colour | Black, White |
Product Details
Product Details
The Gigabyte B850 A ELITE WF7 is an advanced motherboard designed for AMD AM5 sockets, supporting a range of processors including the Ryzen™ 9000, 8000, and 7000 series. It features:
Display
- 1 x HDMI port (HDMI 1.4 version, maximum resolution 1920x1080@30 Hz)
- Integrated Graphics Processor with AMD Radeon™ Graphics supporting up to 3840x2160@144 Hz via DisplayPort
Performance
- Supports DDR5 memory modules with speeds ranging from 4400 MT/s to 8200 (O.C.) MT/s
- Up to 256 GB of system memory supported in dual channel architecture
- Pcie support varies based on CPU series: PCIe 5.0 x16 for Ryzen™ 9000/7000, PCIe 4.0 x8/x4 for Ryzen™ 8000 Phoenix 1/2
Storage
- 3 x M.2 connectors supporting PCIe and SATA SSDs
- 4 x SATA 6Gb/s connectors with RAID support (RAID 5 only available on Ryzen™ 9000 series)
Connectivity
- Realtek® 2.5GbE LAN chip supporting up to 2.5 Gbps speeds
- Realtek® Wi-Fi 7 RTL8922AE wireless module
- Multiplicity of USB ports including Type-C and various Gen 1/Gen 2 options for versatile connectivity
Note: For detailed compatibility information, refer to Gigabyte's website.
Warranty
Warranty
Manufacturer warranty 36 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
