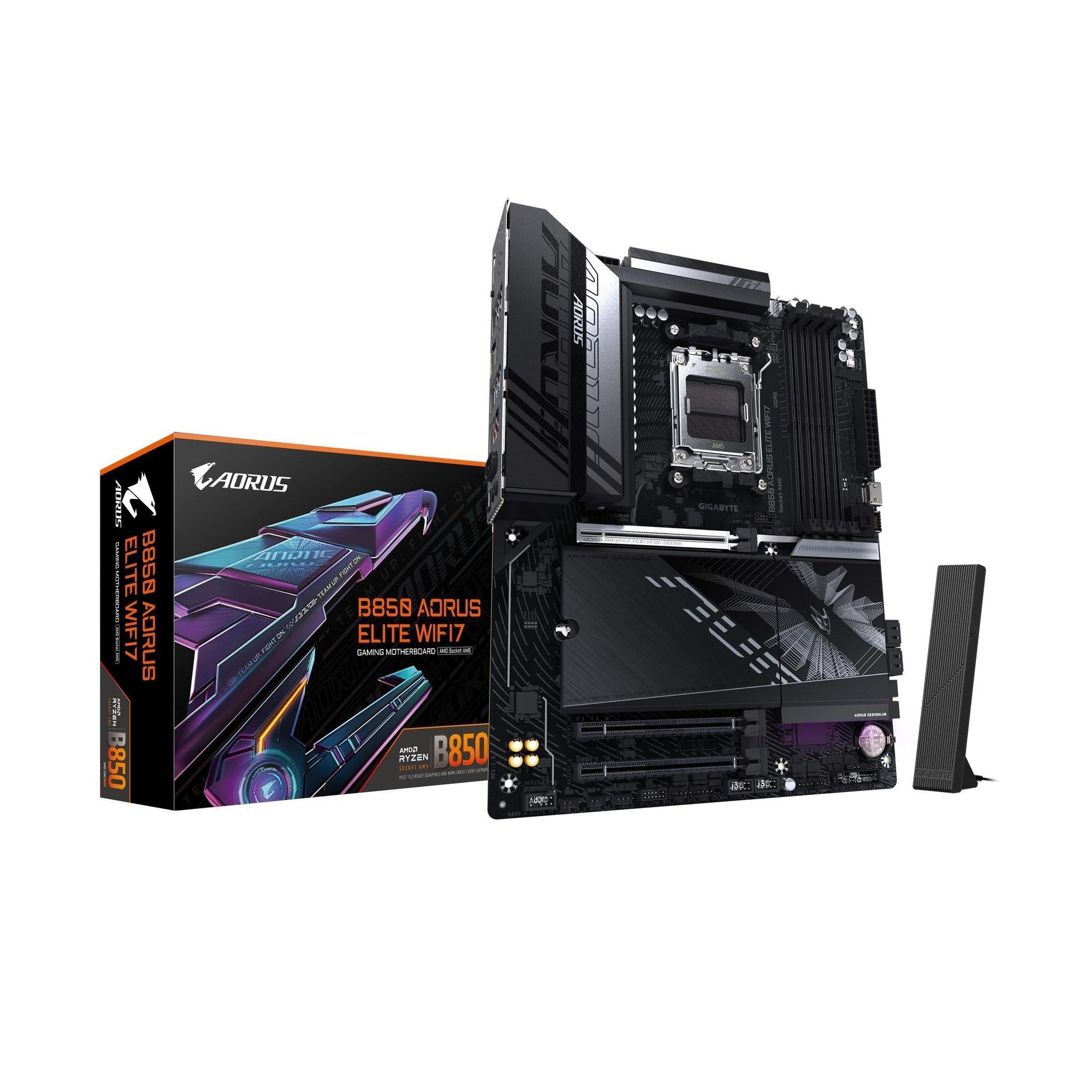

Gigabyte B850 A ELITE WF7 1.0 AMD AM5 4 x DDR5 up to 256 GB 1 x HDMI. 3x PCI ...

The Gigabyte B850 A ELITE WF7 1.0 is a high-performance motherboard designed for AMD AM5 sockets and supports up to four DDR5 DIMM slots with a maximum capacity of 256 GB. It features:

Display

• Integrated Graphics Processor with AMD Radeon™ Graphics supporting 1 x DisplayPort (up to 3840x2160@144 Hz)
• 1 x Front HDMI port (up to 1920x1080@30 Hz)

Performance

• Supports AMD Ryzen™ 9000, 8000, and 7000 Series Processors
• Dual channel memory architecture with support for non-ECC Un-buffered DIMM modules up to 64 GB per single DIMM capacity
• Chipset: Realtek® 2.5GbE LAN chip (up to 2.5 Gbps/1 Gbps/100 Mbps)
• Wireless Communication module: Realtek® Wi-Fi 7 RTL8922AE

Storage

• 4 x SATA 6Gb/s connectors supporting RAID 0, 1, 5 (Raid 5 only available on Ryzen™ 9000 Series Processors), and 10 for NVMe SSD storage devices
• 3 x M.2 sockets with PCIe support depending on the processor model (PCIe 4.0 or 5.0)

Connectivity

• 9 x USB ports including Type-C® and multiple Gen 1, Gen 2, and Gen 2x2 options
• 3 x PCI Express x16 slots supporting PCIe 3.0 or higher depending on the processor model

Note: For detailed specifications regarding supported memory types, data rates, and number of DRAM modules, please refer to GIGABYTE's website.
