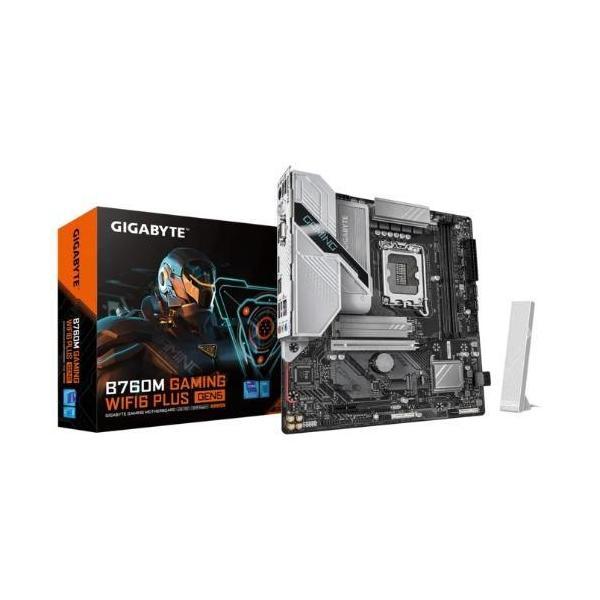

Gigabyte B760M GAMING WIFI PLUS Gen5 mATX Motherboard 2xDDR5 1xPCI-E x16 2xM.2

The Gigabyte B760M GAMING WIFI PLUS Gen5 is a compact mATX motherboard designed for modern computing needs with support for the latest Intel processors and cutting-edge connectivity options.

Display

• 1 x D-Sub port, supporting up to 1920x1200@60 Hz
• 1 x HDMI port, supporting up to 4096x2160@60 Hz (HDCP 2.3)
• 1 x DisplayPort, supporting up to 4096x2304@60 Hz (HDCP 2.3)

Performance

• LGA 1700 socket: Supports Intel 12th and 13th Generation Core™, Pentium® Gold, and Celeron® processors
• Chipset: Intel B760 Express Chipset
• Memory: Up to 128 GB (64 GB single DIMM capacity) with dual channel architecture supporting DDR5 up to 5600 MT/s
• Graphics: Integrated Intel HD Graphics support via HDMI and DisplayPort

Connectivity

• Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Realtek Wi-Fi 6 RTL8851BE: Supports WIFI a, b, g, n, ac, ax at 2.4/5 GHz
• Bluetooth 5.3
• Audio: Realtek Audio CODEC with support for S/PDIF Out and configurable audio settings via software

Expansion Slots & Storage

• 1 x PCI Express x16 slot (PCIe 5.0, x16)
• 1 x PCI Express x1 slot (PCIe 3.0, x1)
• 2 x M.2 connectors: PCIe 4.0 x4/x2 SSD support
• 4 x SATA 6Gb/s connectors with RAID 0/1/5/10 support

USB Ports

• Back Panel: 3 x USB 3.2 Gen 1, 1 x USB Type-C® (Gen 1), 2 x USB 2.0/1.1 ports
• Internal Headers: 5 x USB 3.2 Gen 1 and 4 x USB 2.0/1.1 ports available through headers

Form Factor & Dimensions

• mATX Form Factor; 24.4cm x 22.5cm
