ASUS

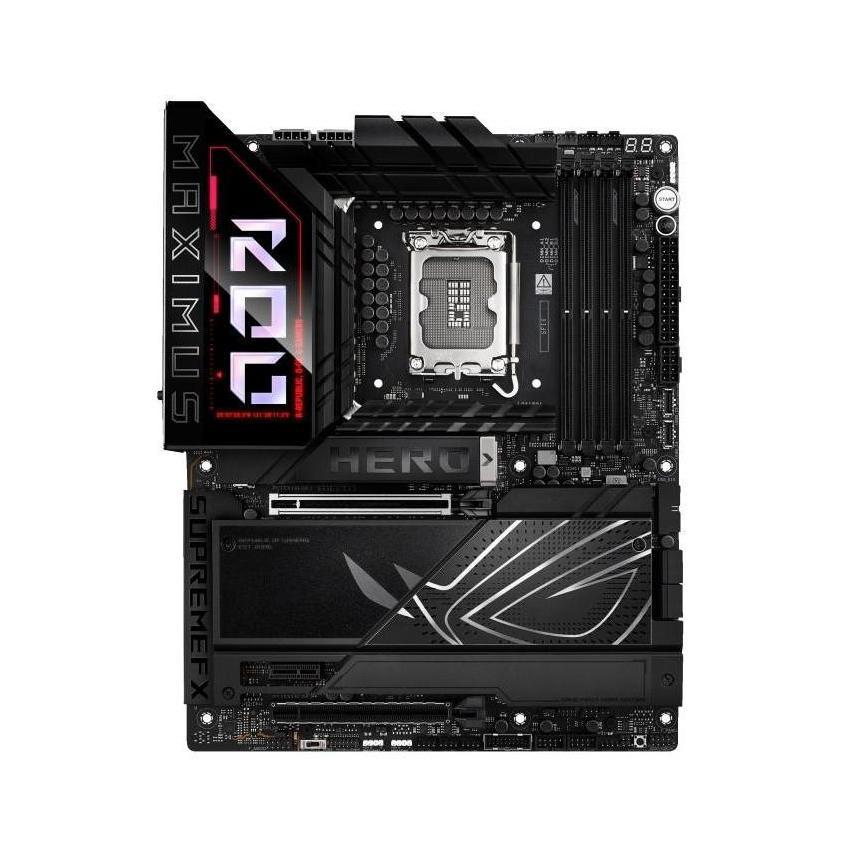

ASUS ROG MAXIMUS Z890 HERO LGA1851 ATX DDR5 Motherboard 6x M.2 1x PCIe 5.0 x16
Available in stock (52)
Couldn't load pickup availability
Specifications
Specifications
Processor
| Processor Socket | LGA 1851 |
|---|
Memory
| Memory Technology | DDR5 |
|---|
Motherboard
| Motherboard Form Factor | ATX |
|---|---|
| Motherboard Chipset Family | Intel |
Expansion & Slots
| Expansion Slot Types | M.2, PCIe, SATA |
|---|
Ports & Connectivity
| Wi-Fi Standard | 802.11ax |
|---|---|
| USB Standard | Other |
| USB Connector Type | USB Type-A, USB Type-C |
Case & Build
| Material | Metal, Graphite |
|---|
Dimensions
| Length | 370 mm |
|---|---|
| Width | 114 mm |
| Height | 246 mm |
Other
| Series | HERO |
|---|---|
| Colour | Black |
Product Details
Product Details
The ASUS ROG MAXIMUS Z890 HERO is a high-performance motherboard designed for Intel® Core™ Ultra processors (Series 2). It features robust power delivery and advanced thermal management to unleash peak performance. The board includes exclusive AI PC technologies and extensive PCIe® 5.0 support, along with four DDR5 memory slots that support up to 192GB of RAM at speeds of 9200+MT/s (OC).
Chipset
- Intel® Z890 Chipset
Memory
- 4 x DIMM slots, max. 192GB
- Supports up to 9200+MT/s (OC)
- Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
- Dual channel memory architecture
- Intel® Extreme Memory Profile (XMP) support
- NitroPath DRAM Technology
- AEMP III (ASUS Enhanced Memory Profile III)
Graphics
- 1 x HDMI™ port**
- 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort and Thunderbolt™ video outputs***
Connectivity
Rear USB Ports
- 2 x Thunderbolt™ 4 ports (2 x USB Type-C®)
- 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®)
- 4 x USB 5Gbps ports (4 x Type-A)
Front USB Ports
- 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)**
- 1 x USB 10Gbps connector (supports USB Type-C®)
- 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
The ASUS ROG MAXIMUS Z890 HERO also includes advanced connectivity options and a distinctive design with angular elements and Polymo II Lighting accents around the ROG logo.
Warranty
Warranty
Manufacturer warranty 36 Months
