ASUS

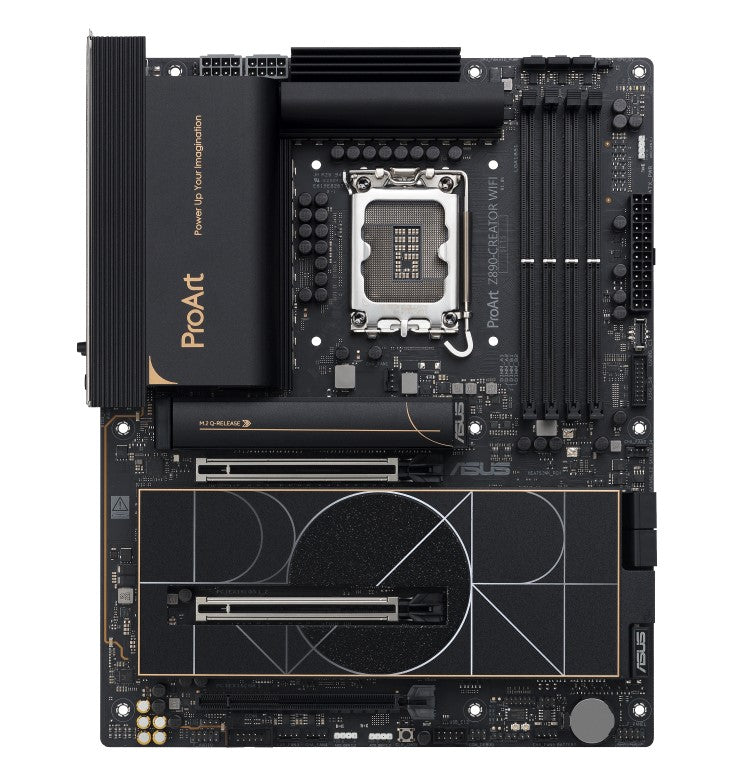

ASUS ProArt Z890-CREATOR WIFI LGA1851 DDR5 192GB 5x M.2 PCIe 5.0 Motherboard
Available in stock (17)
Couldn't load pickup availability
Specifications
Specifications
Motherboard
| Motherboard Form Factor | ATX |
|---|
Dimensions
| Length | 28.6 cm |
|---|---|
| Width | 35.8 cm |
| Height | 8.6 cm |
Product Details
Product Details
The ASUS ProArt Z890-CREATOR WIFI is designed to empower creators by offering top-tier performance with support for the latest Intel® Core™ Ultra Processors (Series 2). This motherboard features advanced power delivery systems and cutting-edge connectivity options, making it ideal for demanding workloads.
Display
- 1 x HDMI port
- 1 x DisplayPort (input only)
Performance
- Intel® Z890 chipset
- Supports up to 192GB DDR5 memory with dual channel architecture
- Up to 4 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
Storage
- 5 x M.2 slots (Key M)
- 4 x SATA 6Gb/s ports
Connectivity
- Dual Thunderbolt™ 5 USB Type-C® ports with DisplayPort and Thunderbolt™ video outputs
- 1 x Thunderbolt™ 4 USB Type-C® port with DisplayPort and Thunderbolt™ video outputs
- Marvell® AQtion 10Gb Ethernet
- Intel® 2.5Gb Ethernet
- Wi-Fi 7 module

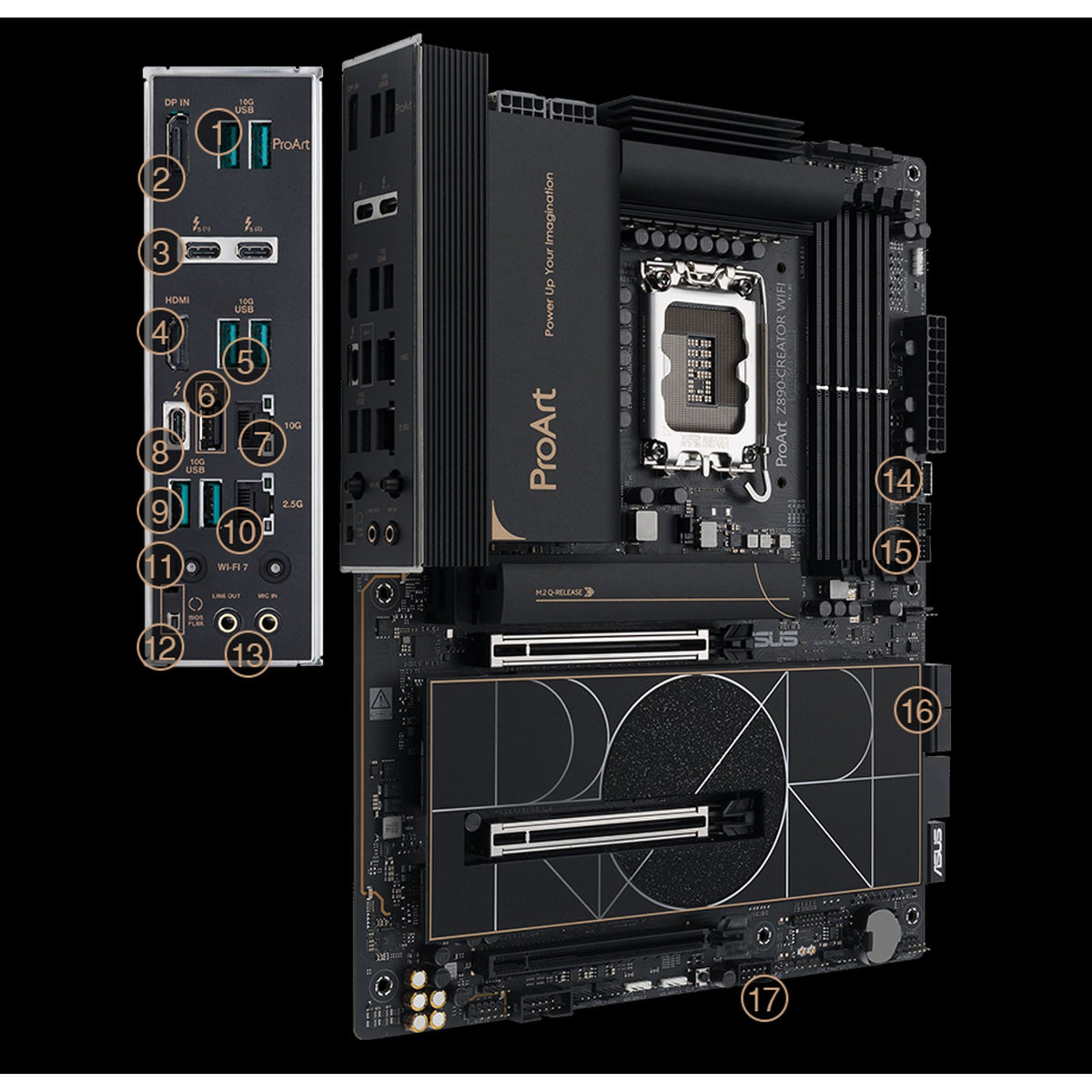

I/O Connectors
- 6 x USB 10Gbps ports (Type-A)
- 1 x USB 2.0 port (Type-A)
- Gold-plated audio jacks
- BIOs FlashBack™ button
Fan and Cooling Related
- 4-pin CPU Fan header
- 4-pin CPU OPT Fan header
- 4-pin AIO Pump header
- 5 x 4-pin Chassis Fan headers
Power Related
- 24-pin Main Power connector
- 2 x 8-pin +12V CPU Power connectors
Miscellaneous
- Addressable Gen2 headers (x3)
- Clear CMOS button
- COM Port header
- CPU Over voltage jumper
- Chassis Intrusion header
- Front Panel Audio header (F_AUDIO)
- SPI TPM header (14-1 pin)
- 10-1 pin Front System Panel header
- RTC Battery header
- Thermal Sensor header
The ProArt Z890-CREATOR WIFI combines professional-grade performance with sleek, elegant design elements, making it an excellent choice for content creators.
