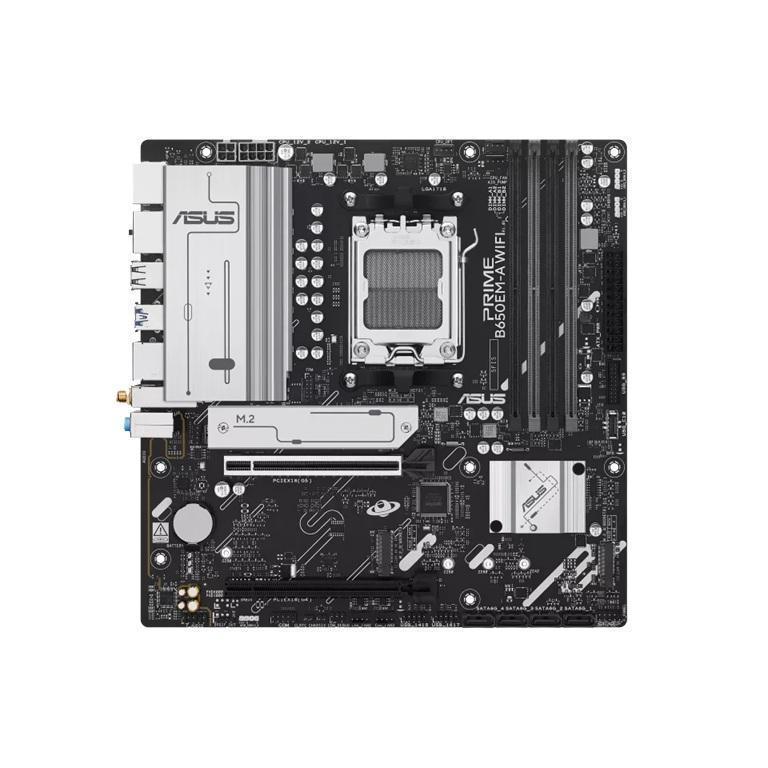

ASUS PRIME B650EM-A WIFI AM5 mATX Motherboard DDR5 256GB 3x M.2 4x SATA Wi-Fi 6

The ASUS PRIME B650EM-A WIFI is an AM5 mATX motherboard designed for advanced AI computing with robust power and connectivity features. It supports AMD Ryzen™ processors and offers comprehensive cooling solutions.

Display

• 2 x DisplayPort
• 1 x HDMI™ port

Performance

• 4 x DIMM slots, max. 256GB DDR5 memory
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)

Storage

• Total of 3 x M.2 slots and 4 x SATA 6Gb/s ports
• M.2_1 slot: PCIe 5.0 x4 mode, type 2280 (Ryzen™ 9000/7000 Series)
• M.2_2 slot: PCIe 4.0 x4/x2 mode, type 2280 (Ryzen™ 8000/7000 Series)
• M.2_3 slot: PCIe 4.0 x4 mode, type 2242/2260/2280
• RAID Support: AMD RAIDXpert2 Technology (varies by processor series)

Connectivity

• 1 x Realtek 2.5Gb Ethernet
• Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with Bluetooth® v5.4*
• Rear USB: 2 x Type-A 10Gbps, 2 x Type-A 5Gbps, 4 x Type-A 2.0
• Front USB: 1 x Type-C 5Gbps, 2 additional 5Gbps ports, 4 additional 2.0 ports

AUDIO

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Audio Features: Audio Shielding, Premium audio capacitors, Dedicated audio PCB layers

BIOs & Manageability

• 256 Mb Flash ROM, UEFI AMI BIOS
• WOL by PME, PXE

The PRIME B650EM-A WIFI is part of the ASUS Prime series and offers unmatched personalization with three Addressable RGB Gen 2 headers configurable via Aura Sync.
