ASUS

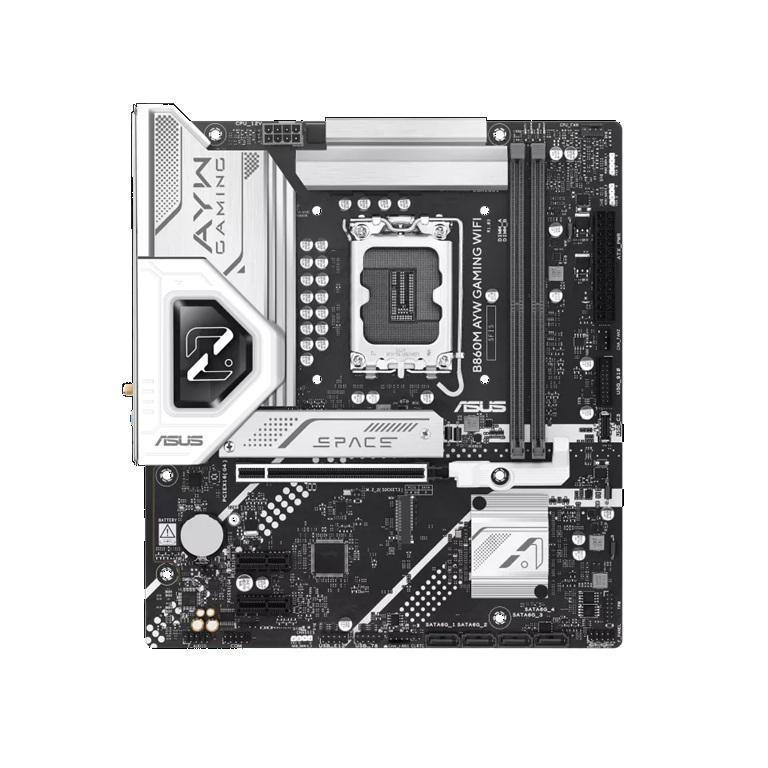

ASUS B860M AYW GAMING WIFI Micro-ATX Motherboard DDR5 128GB 2x Slots PCIe 4.0
Regular price
$229.00
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
Available in stock (70)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 280 mm |
|---|---|
| Width | 280 mm |
| Height | 70 mm |
Product Details
Product Details
The ASUS B860M AYW GAMING WIFI is a Micro-ATX motherboard designed for up to 128GB DDR5 memory with dual-channel support and PCIe 4.0 connectivity. It features advanced AI PC-ready capabilities, making it suitable for demanding applications.
Display
- 1 x HDMI port (supports 4K@60Hz)
Performance
- Supports Intel® Core™ Ultra Processors (Series 2) with LGA1851 socket
- Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0 support
- Up to 8800+MT/s memory speed (OC)
- ASUS Enhanced Memory Profile III (AEMPIII) for optimised performance
Storage
- 2 x M.2 slots: PCIe 5.0 x4 and PCIe 4.0 x4 modes supported
- 4 x SATA 6Gb/s ports
Connectivity
- 1 x Realtek 2.5Gb Ethernet port with ASUS LANGuard protection
- Wi-Fi 6 (802.11ax) and Bluetooth® v5.3 support
Audio
- Realtek 7.1 Surround Sound High Definition Audio Codec
- Supports jack detection, multi-streaming, front panel retasking, and up to 24-Bit/192 kHz playback
- Premium audio components for enhanced sound quality
Form Factor
- Micro-ATX form factor (9.6 inch x 8.75 inch or 24.4cm x 22.2cm)
The motherboard is compatible with Windows 11 and Windows 10 operating systems.
Warranty
Warranty
Manufacturer warranty 36 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
