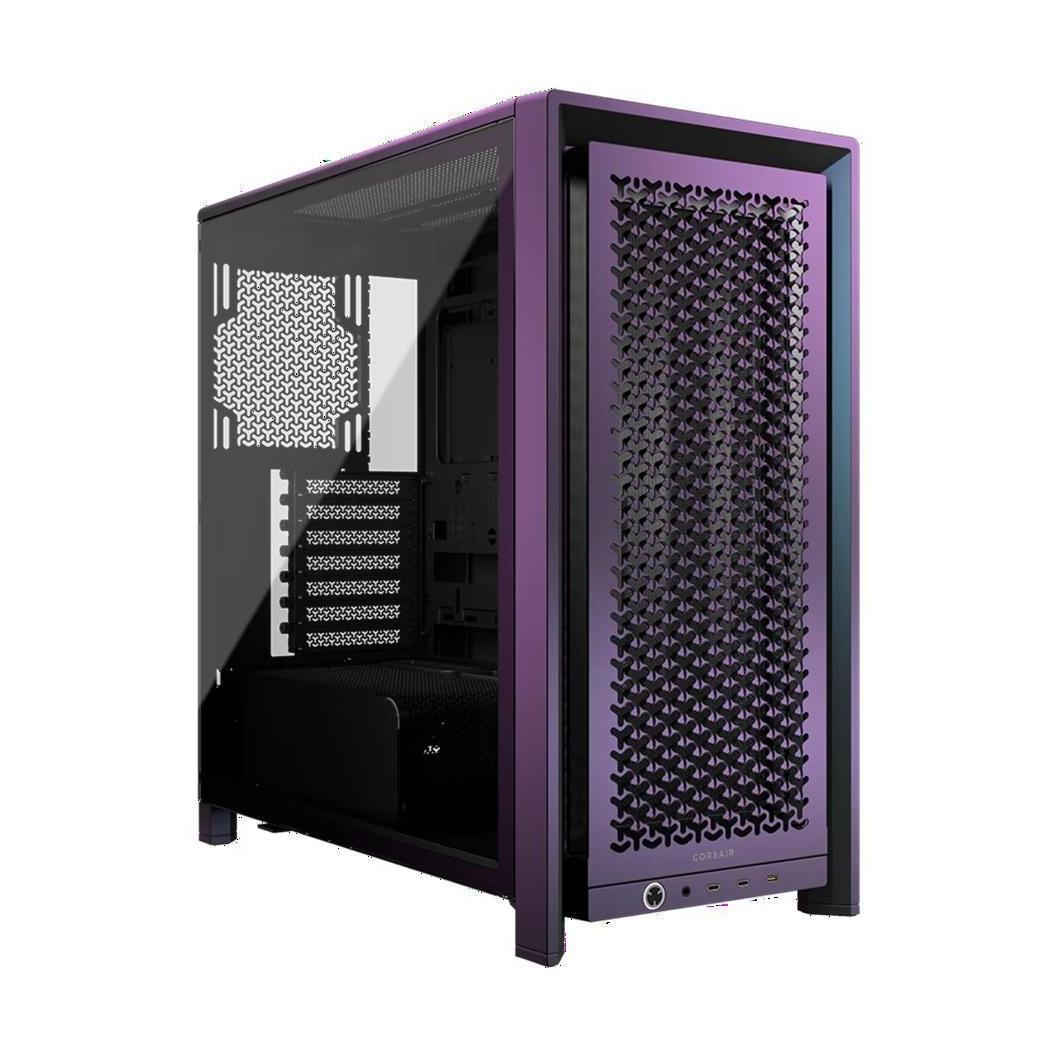

Corsair FRAME 4000D Vault Modular Mid-Tower Case Galaxy ATX/E-ATX 430mm GPU
Hurry up, only 5 items left in stock.
Couldn't load pickup availability
Specifications
Specifications
Graphics
| Max. GPU Length | 430 mm |
|---|
Cooling & Fans
| Max. CPU Cooler Height | 170 mm |
|---|---|
| Included Fan Count | 0 |
Case & Build
| Tempered Glass Panel | Yes |
|---|---|
| Chassis Type | Mid tower, Modular |
| Side Panel Style | Tempered glass window |
| Material | Steel, Plastic |
| Compatible Motherboard Form Factor | ATX, Extended ATX, Micro-ATX |
| Compatible Power Supply Form Factor | ATX |
Dimensions
| Length | 490 mm |
|---|---|
| Width | 239 mm |
| Height | 486 mm |
Other
| Series | FRAME 4000D |
|---|---|
| Colour Code | GALAXY |
| Colour | Purple |
Product Details
Product Details
The Corsair FRAME 4000D Vault Series is a modular mid-tower PC case designed for ATX and E-ATX motherboards, offering versatile build options with its chromatic paint finish that shifts colors based on viewing angle and lighting conditions. This limited edition model features an aluminum badge with unique etching, making it one of only 1337 units in this color.
Display
- Full-Tempered Glass Side Panel
Performance
- InfiniRail™ Fan Mounting System for easy installation and management
- Dual 360mm radiator support
- GPU Anti-sag Stabilization Arm
Compatibility
- Supported motherboards: Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305mm x 277mm)
- Maximum GPU length: 430mm
- Maximum CPU cooler height: 170mm
- PSU compatibility up to 220mm in length
- Reverse connector motherboard support (ASUS BTF, MSI PROJECT ZERO, GIGABYTE PROJECT STEALTH COLOR)
Connectivity
- Modern front I/O panel with 3x USB Type-C ports (1x USB 3.2 Gen 2x2, 2x USB 3.2 Gen 1), audio in/out
Radiators and Fans
- Radiator support: 120mm, 140mm, 240mm, 280mm, 360mm
- Fan support: Top - 3x 120mm or 2x 140mm; Front - 3x 120mm, 2x 140mm, 2x 200mm; Bottom - 3x 120mm; Side - 3x 120mm or 2x 140mm; Rear - 1x 120mm, 1x 140mm
Storage and Expansion
- Internal 3.5" drive bays: 1
- Internal 2.5" drive bays: 2
- Expansion slots: 7 (horizontal or vertical)
Warranty
2 Year Warranty
Warranty
Warranty
Manufacturer warranty 12 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
