Which wired networking switch do you actually need?

Most PC builders think of a switch as a dumb box that adds ports, and at the bottom end that's close to true. Under the hood, though, the tiers differ in ways that matter. Every decent switch is "non-blocking", meaning its switching fabric can carry every port at full speed in both directions at once. The differences are port speed, buffer memory, the MAC address table size, and what the management firmware can do. Browse the full Networking range and you'll see three broad tiers.

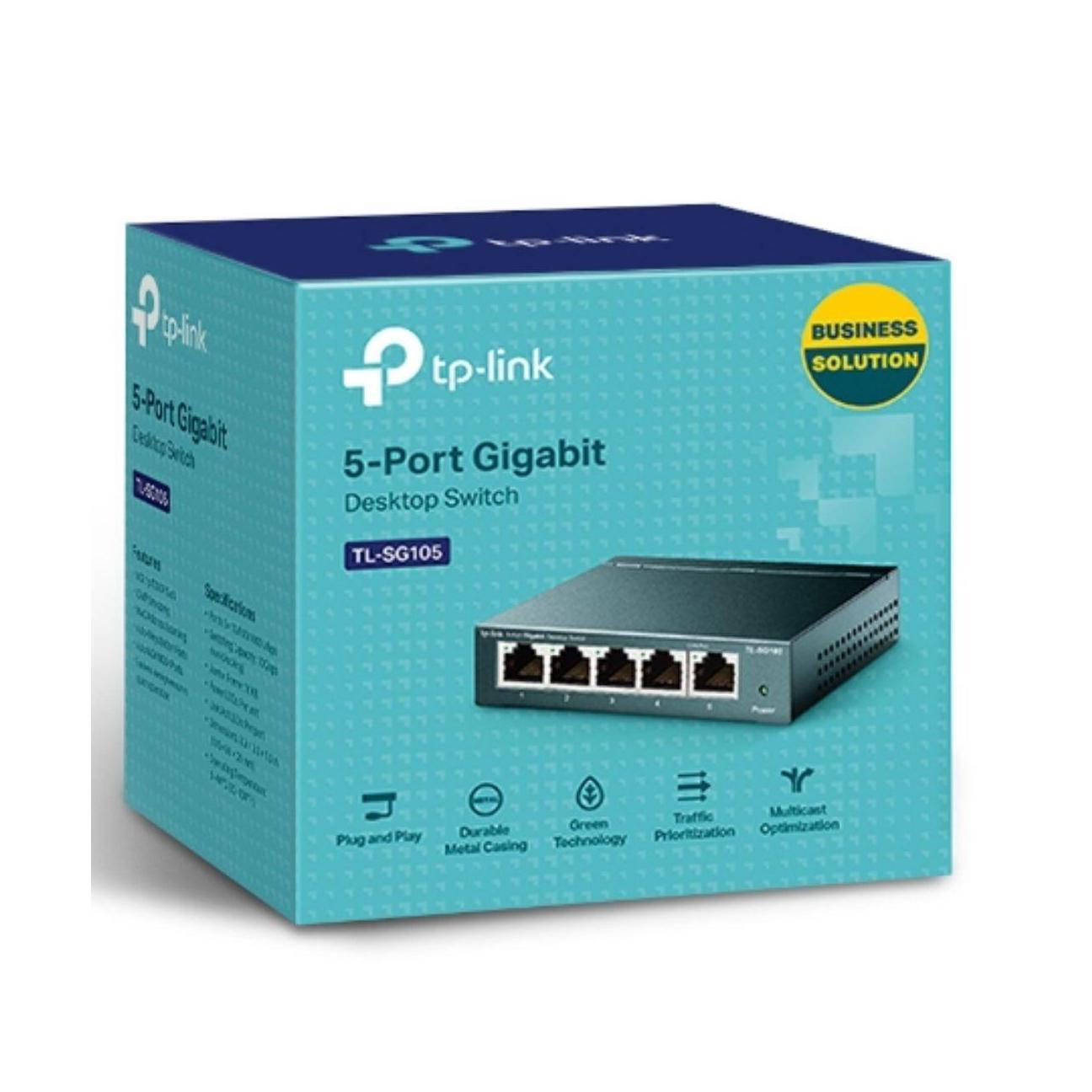

Entry-level unmanaged gigabit switches, like the TP-Link TL-SG105 and TL-SG108 or Netgear GS305 and GS308 families, use a small switching chip with a few hundred kilobytes of packet buffer. They're fine for a console, a PC, a NAS and a TV. Where they struggle is sustained many-to-one traffic, such as three devices backing up to one NAS. The small buffer fills, packets drop, and TCP throttles back.

The sweet spot for most home labs and enthusiast setups is a 2.5GbE switch, either unmanaged or "smart managed". This gives you VLANs, IGMP snooping, link aggregation and port mirroring, which are the features you want once you have IoT gear, a guest network or a Proxmox box. The enthusiast tier is 10GbE, usually with SFP+ cages, plus PoE+ or PoE++ on some ports. Diminishing returns hit hard here. A 10G switch only helps if your NAS, workstation and cabling can use it, and a single SATA-based NAS will rarely saturate 2.5GbE anyway.

Upgrading and technical nuances

Almost every current Motherboards pick on AM5 and LGA1851 ships with 2.5GbE onboard, and many upper-tier boards add 5GbE or 10GbE. So an old gigabit switch is now the bottleneck for most new builds. If you're moving a big Steam library, video project or backup between machines, 2.5GbE is roughly 280MB/s real-world, versus about 110MB/s on gigabit. That's a night-and-day difference for large files.

Check speed negotiation closely. Multi-gig switches, such as the TP-Link TL-SG105-M2 and TL-SG108-M2 or the TL-SX105 for 10G, will auto-negotiate down to 1G, but a mixed network only gets the speed of the slowest link on each path. A 2.5G switch with a gigabit uplink to your router means internet-bound traffic stays at gigabit, which is fine for most NBN plans. Local traffic between your own devices is what benefits.

For managed needs, TP-Link Omada (SG2008P, SG3210XHP-M2), Ubiquiti UniFi (Flex Mini, Pro Max lines) and MikroTik CRS series cover the range. UniFi and Omada are controller-driven and polished. MikroTik's RouterOS gives you huge flexibility at a lower price, but the learning curve is steep. If you only need a few extra ports behind your desk, a managed switch is overkill.

PoE trips people up. 802.3af gives about 15W per port, 802.3at (PoE+) about 30W, and 802.3bt up to 60W or 90W. A switch's "PoE budget" is the total across all ports, so an 8-port switch with a 65W budget cannot run several access points and cameras at once.

Practical things to check before buying

Start with cabling. Gigabit and 2.5G run happily on decent Cat5e, but 10GBASE-T wants Cat6 for short runs and Cat6a for longer ones. Grab proper terminated leads from our Cables & Connectors range rather than mystery cables from a drawer. If you use SFP+, make sure the DAC cable or transceiver is compatible. Some switches are fussy about third-party optics.

Thermals matter more than people think. Fanless switches rely on a thick aluminium shell and passive airflow, so don't stack them under a router or stuff them in a sealed cupboard. 10GBASE-T copper ports run hot, and a switch with a tiny fan can be annoyingly loud in a quiet room. If your switch lives near your rig, think about airflow the same way you would with Fans, Heatsinks & Cooling for a case. A rack-style switch is also a poor fit for a bedroom desk.

Check physical mounting. Many 5 and 8-port switches are desktop or wall-mount only, while 16 and 24-port units are 19-inch rack. If you want to hide a small switch inside a Computer Cases build, such as a home server, make sure you've got a spare plug socket and don't block the vents. Many switches use an external power adapter, and a cheap one can be the first thing to fail, so use the supplied unit.

Finally, count your ports and add at least 30% spare. Between PCs, consoles, NAS, printers, smart TVs, access points and a future Computers addition, an eight-port switch fills quicker than you'd expect.

Brands and local warranty

For wired networking switches in Australia, the names worth trusting are TP-Link, Netgear, Ubiquiti, D-Link, Zyxel, MikroTik and Cisco's business lines. TP-Link has the widest spread from cheap unmanaged boxes to Omada managed gear, and it's what I'd point most first-time buyers at. Netgear's Plus and Pro lines are solid, and Ubiquiti suits anyone going all-in on a UniFi ecosystem.

Whether you're searching for "wired networking switche" or a specific model number, make sure it's sold locally with genuine Australian stock. Local units carry the correct RCM compliance, an Australian-spec power adapter, and warranty coverage under Australian Consumer Law. Grey imports can mean a dodgy plug pack, no manufacturer support and a painful RMA. A switch is a set-and-forget device that can sit in a wall for years, so proper warranty backing matters when it eventually dies and takes your whole LAN with it.

Frequently asked questions

Do I need a managed switch for a home network?

Usually not. If all you need is more ports, an unmanaged switch is simpler and cheaper. Go managed only if you want VLANs, traffic prioritisation, link aggregation or detailed monitoring. A smart-managed model is a good middle ground.

Will a 2.5GbE switch make my games download faster?

Only if your internet plan is faster than gigabit. For local transfers between a PC and NAS, it can make a big difference. For regular NBN speeds, gigabit is usually enough.

Can I plug a switch into another switch?

Yes, and it's common. Keep it to one or two layers, and use a decent uplink port or cable between them. Avoid creating loops unless your managed switches support spanning tree.

Is 10GbE worth it?

Only if the rest of the chain supports it. You need 10G network cards in both machines, suitable cabling and storage that can actually deliver those speeds. For many builders, 2.5GbE gives the best value today.

Do I need to match brands between router, switch and access points?

No. Standard Ethernet works across brands. Matching brands only helps if you want unified controller management, such as Omada or UniFi.
