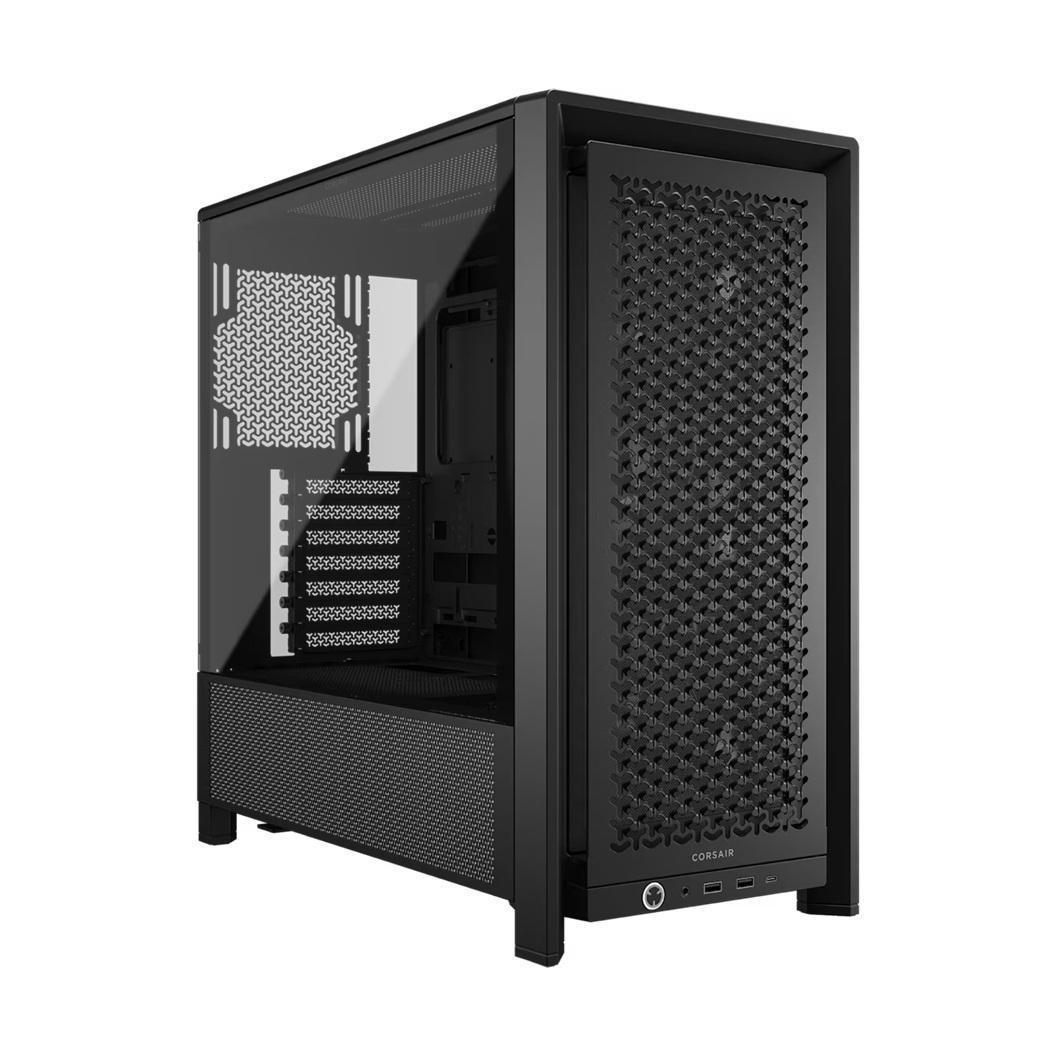

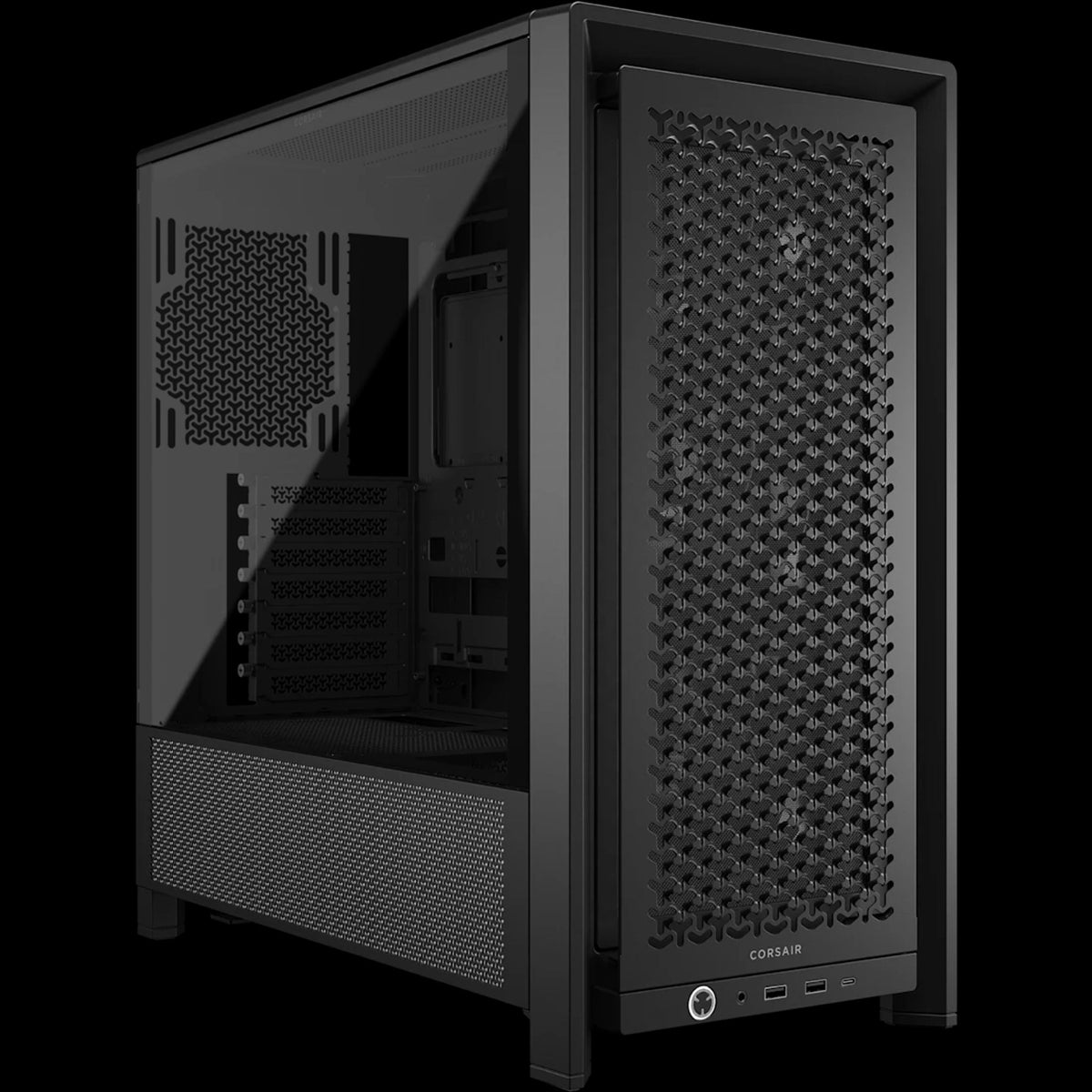

Corsair FRAME 4000D RS Black Modular Mid-Tower ATX Case 430MM GPU 170MM CPU Cooler 360MM RAD USB-C

The Corsair FRAME 4000D RS is a fully-modular mid-tower PC case designed for flexibility and performance. It features the InfiniRail™ Fan Mounting System and supports reverse connector motherboards such as ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH.

Display

• Tempered glass side panel

Performance

• InfiniRail™ Fan Mounting System for easy building
• Dual 360mm radiator support
• GPU anti-sag stabilization arm

Storage

• 2 x internal 3.5" drive bays
• 4 x internal 2.5" drive bays

Connectivity

• Front IO: 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 1x audio in/out

Dimensions and Compatibility

• Supported motherboard sizes: Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)
• Case dimensions: Height 486mm, Length 490mm, Width 239mm
• Maximum GPU length: 430mm
• Maximum CPU cooler height: 170mm
• Weight: 10.38kg

Radiators and Fans

• Radiator compatibility: 120mm, 140mm, 240mm, 280mm, 360mm
• Fan support: Top - 3x 120mm, 2x 140mm; Front - 3x 120mm, 2x 140mm, 2x 200mm; Bottom - 2x 120mm; Side - 3x 120mm, 2x 140mm; Rear - 1x 120mm, 1x 140mm
• Includes three RS120 performance fans

Warranty and Additional Features

• Case warranty: 2 years
• Dust filtration included
• Cable routing space: 37mm
• Vertical mount support (riser card sold separately)
