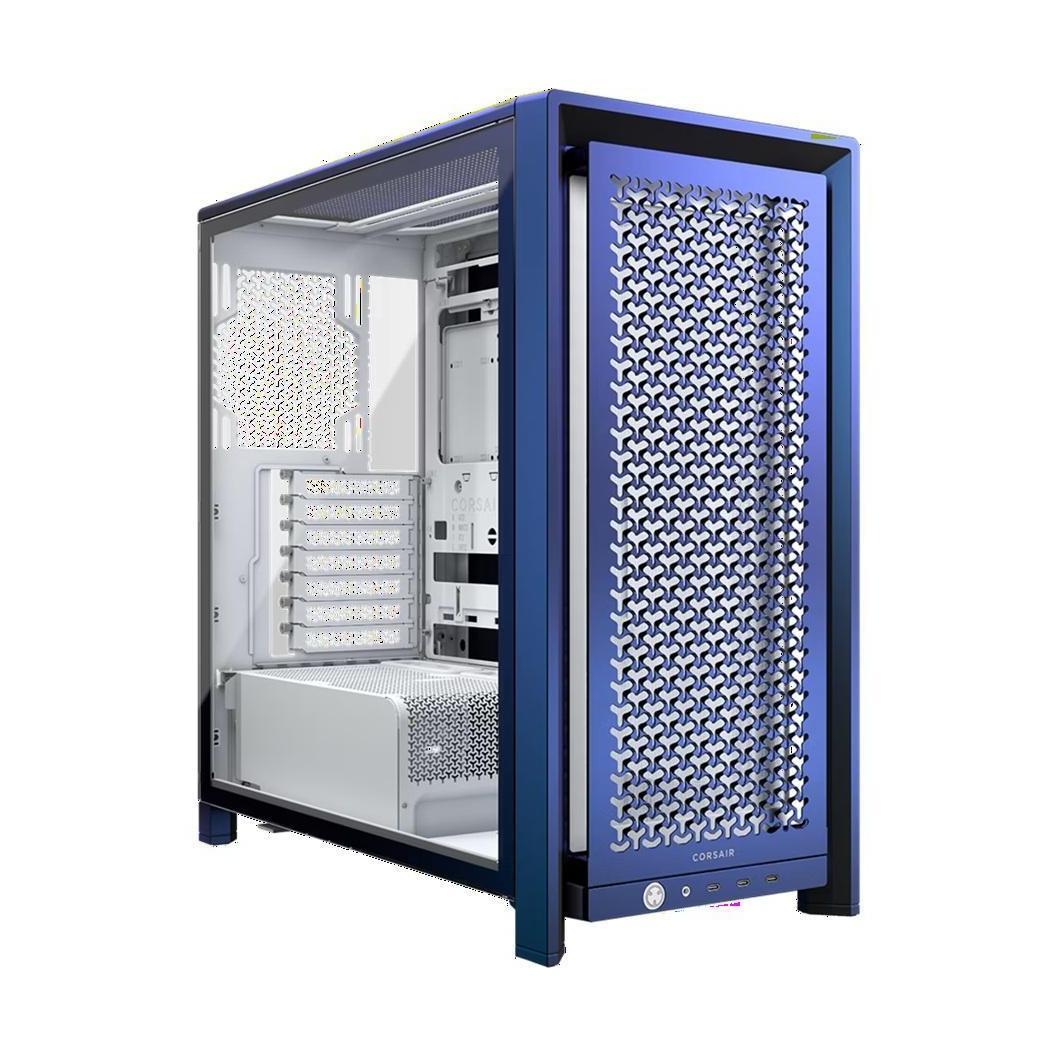

Corsair FRAME 4000D Vault Nova ATX/E-ATX TG Modular Case 430MM GPU 170MM CPU CLR 360MM RAD

The Corsair FRAME 4000D Vault Nova is a modular mid-tower PC case designed for ATX and E-ATX motherboards with chromatic paint that shifts colour with viewing angle and lighting. It features a full-tempered glass side panel, compact PSU shroud, and modern front I/O panel with three USB Type-C ports.

Display

• Full-Tempered Glass Side Panel
• Steel Right Side Panel

Performance

• InfiniRail™ Fan Mounting System for easier building
• Dual 360mm radiator support
• GPU Anti-sag Stabilization Arm

Compatibility

• Supported motherboards: Mini-ITX, Micro-ATX, ATX, E-ATX (up to 305mm x 277mm)
• Maximum GPU length: 430mm
• Maximum CPU cooler height: 170mm
• Compatible with reverse connector motherboards including ASUS BTF, MSI PROJECT ZERO, and GIGABYTE PROJECT STEALTH

Connectivity

• Front I/O: 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 1 Type-C, 1x Audio in/out

Storage and Expansion

• Internal drive bays: 1 x 3.5", 2 x 2.5"
• Expansion slots: 7 horizontal or 3 vertical
• Radiator support: Top - 360mm, 280mm, 240mm; Front - 360mm, 280mm, 240mm; Side - 360mm, 280mm, 240mm
• Fan support: Top - 3x 120mm, 2x 140mm; Front - 3x 120mm, 2x 140mm, 2x 200mm; Bottom - 3x 120mm; Side - 3x 120mm; Rear - 1x 120mm, 1x 140mm
• Weight: 12.54kg

Warranty and Support

• Case warranty: 2 years
