GIGABYTE

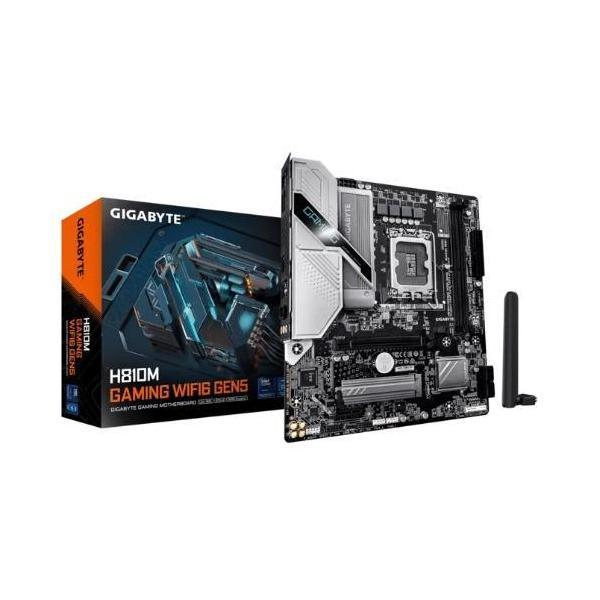

Gigabyte H810M G WIFI6 GEN5 2x DDR5 ATX Motherboard 1x PCI-E x16 1x M.2 4x SATA
Regular price
Sale price
$338.99
Regular price
$339.00
Tax included.
Shipping calculated at checkout.
Available in stock (103)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 300 mm |
|---|---|
| Width | 250 mm |
| Height | 80 mm |
Product Details
Product Details
The Gigabyte H810M G WIFI6 GEN5 is a Micro ATX motherboard designed for Intel® Core™ Ultra processors with an LGA 1851 socket and Intel® H810 Express chipset. It supports up to 128GB of DDR5 memory (64GB per DIMM) at speeds of 6400/5600 MT/s, offering dual-channel architecture.
Display
- HDMI port supporting resolutions up to 4096x2160@60 Hz with HDCP 2.3 and HDMI 2.1 support
- DisplayPort supporting resolutions up to 3840x2160@60 Hz with DisplayPort 2.1 version
Expansion Slots
- 1 x PCI Express x16 slot (PCIe 5.0, running at x16)
- 1 x PCI Express x1 slot (PCIe 3.0, running at x1)
Storage Interface
- 1 x M.2 connector
- 4 x SATA 6Gb/s connectors
Connectivity
- USB Type-C® port with USB 3.2 Gen 1 support (internal header)
- 3 x USB 3.2 Gen 1 ports (1 on back panel, 2 internal headers)
- 7 x USB 2.0/1.1 ports (3 on back panel, 4 internal headers)
Form Factor
Micro ATX; dimensions: 24.4cm x 22.5cm
Warranty
Warranty
Manufacturer warranty 36 Months
