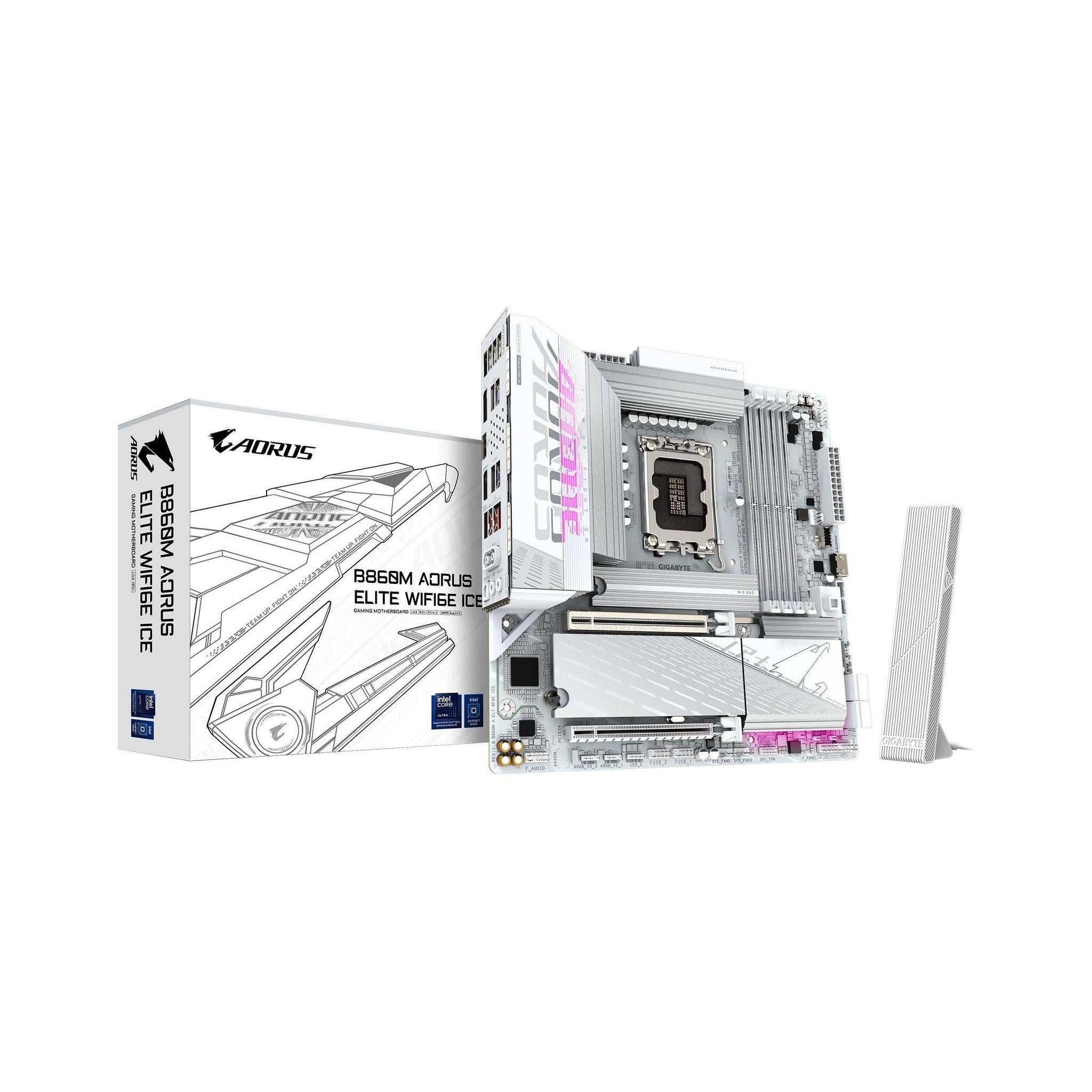

Gigabyte B860M A ELT WF6E ICE 1.0 4x DDR5 3x M.2 Motherboard

The Gigabyte B860M A ELT WF6E ICE 1.0 is a compact motherboard designed for Intel Core Ultra processors with LGA1851 socket support. It features:

Display

• 2 x HDMI ports (HDMI 2.1 and HDMI 1.4)
• 1 x DisplayPort (supporting up to 3840x2160@144 Hz)
• 1 x USB4® Type-C port with DisplayPort video output

Performance

• Intel B860 Express chipset
• Support for up to 256 GB DDR5 memory (upgradable from 64 GB single DIMM capacity)
• Dual channel memory architecture with ECC support
• Onboard Intel HD Graphics

Connectivity

• Realtek® 2.5GbE LAN chip
• Intel Wi-Fi 6E AX211 (PCB rev. 1.0)

Expansion Slots

• 1 x PCI Express x16 slot supporting PCIe 5.0 at x16 speed for graphics cards or NVMe SSDs
• 1 x PCI Express x16 slot supporting PCIe 4.0 at x4 speed

Storage

• 3 x M.2 slots (PCIe 5.0 and 4.0 support)
• 4 x SATA 6Gb/s connectors for RAID configurations (RAID 0, 1, 5, 10)

USB Ports

• 1 x USB4® Type-C port on the back panel
• 2 x USB 3.2 Gen 2 Type-A ports on the back panel (red)
• 6 x additional USB 3.2 and 2.0 ports available through internal headers

The Gigabyte B860M A ELT WF6E ICE 1.0 supports up to quad-display configurations simultaneously, making it suitable for both gaming and professional workloads.
