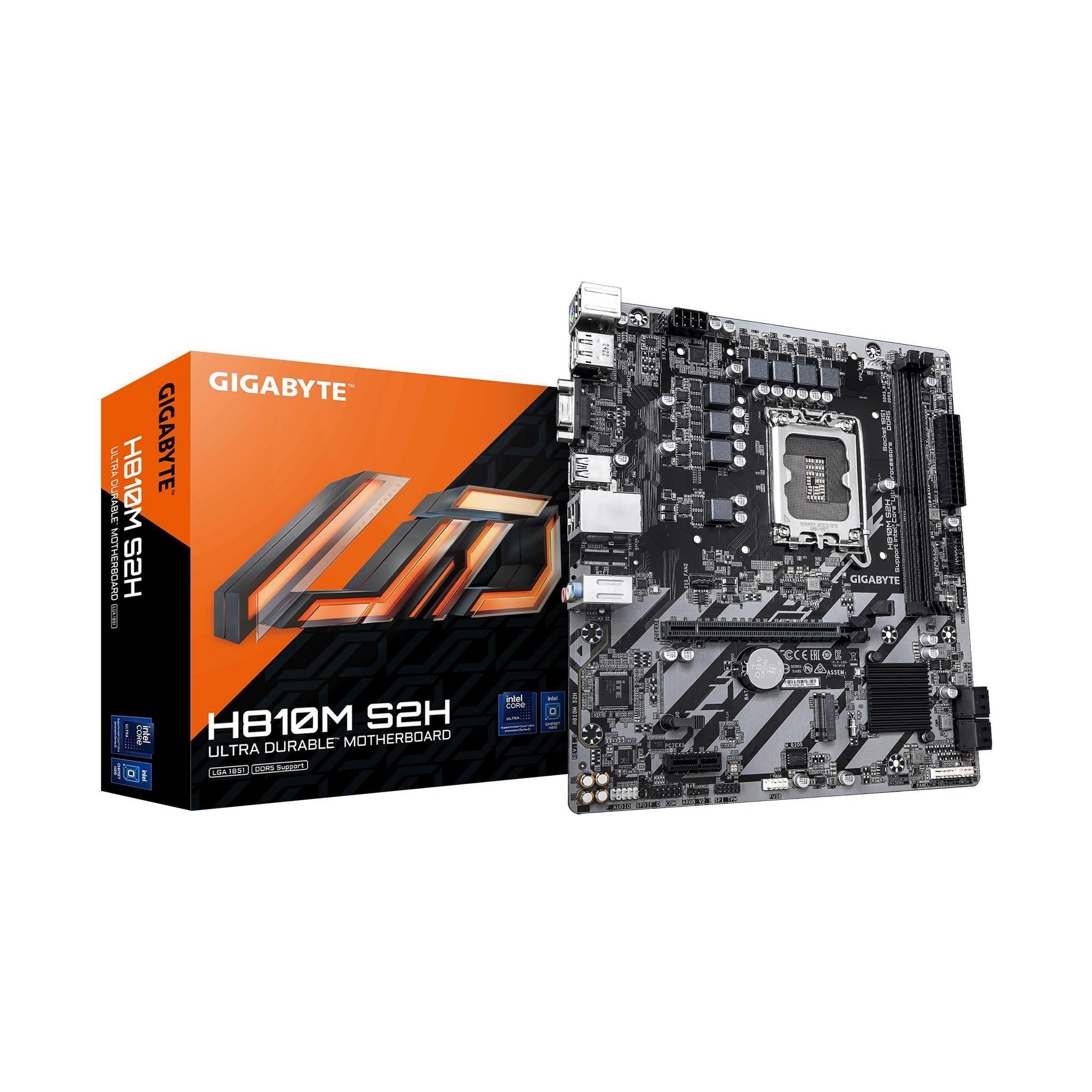

Gigabyte H810M S2H LGA 1851 ATX Motherboard 2x DDR5 1x PCI-E x16 1x M.2 4x SATA

The Gigabyte H810M S2H is an LGA 1851 ATX motherboard designed for Intel Core Ultra processors and featuring a robust set of connectivity options.

Display

• HDMI port supporting up to 4096x2160@60 Hz (HDCP 2.3, HDMI 2.1)
• DisplayPort supporting up to 3840x2160@60 Hz (DisplayPort 2.1)
• D-Sub port supporting up to 1920x1200@60 Hz

Performance

• CPU socket: LGA 1851
• Chipset: Intel H810 Express
• Dual-channel DDR5 memory architecture with support for up to 128 GB (64 GB single DIMM capacity)
• Memory speed: Up to 6400/5600 MT/s

Connectivity

• Expansion slots: 1 x PCI-E x16, 1 x PCI-E x1 (PCIe 3.0)
• Storage interfaces: 1 x M.2 connector, 4 x SATA 6Gb/s connectors
• USB ports: 1 x USB Type-C® with USB 3.2 Gen 1 support, 5 x USB 3.2 Gen 1 (3 on back panel, 2 via internal header), 2 x USB 2.0/1.1 (on back panel)

Internal I/O Connectors

• Main power: 1 x 24-pin ATX connector, 1 x 8-pin ATX 12V connector
• Fan headers: 1 x CPU fan header, 3 x system fan headers
• LED strip headers: 2 x addressable LED strip headers, 1 x RGB LED strip header
• M.2 Socket 3 connectors: 2
• SATA connectors: 4
• Other headers: front panel, front panel audio, S/PDIF Out, USB 3.2 Gen 1, USB 2.0/1.1 (x2), Trusted Platform Module, serial port
• Additional features: Q-Flash Plus button, reset jumper, Clear CMOS jumper

Form Factor

Micro ATX; dimensions: 24.4cm x 22.5cm
