GIGABYTE

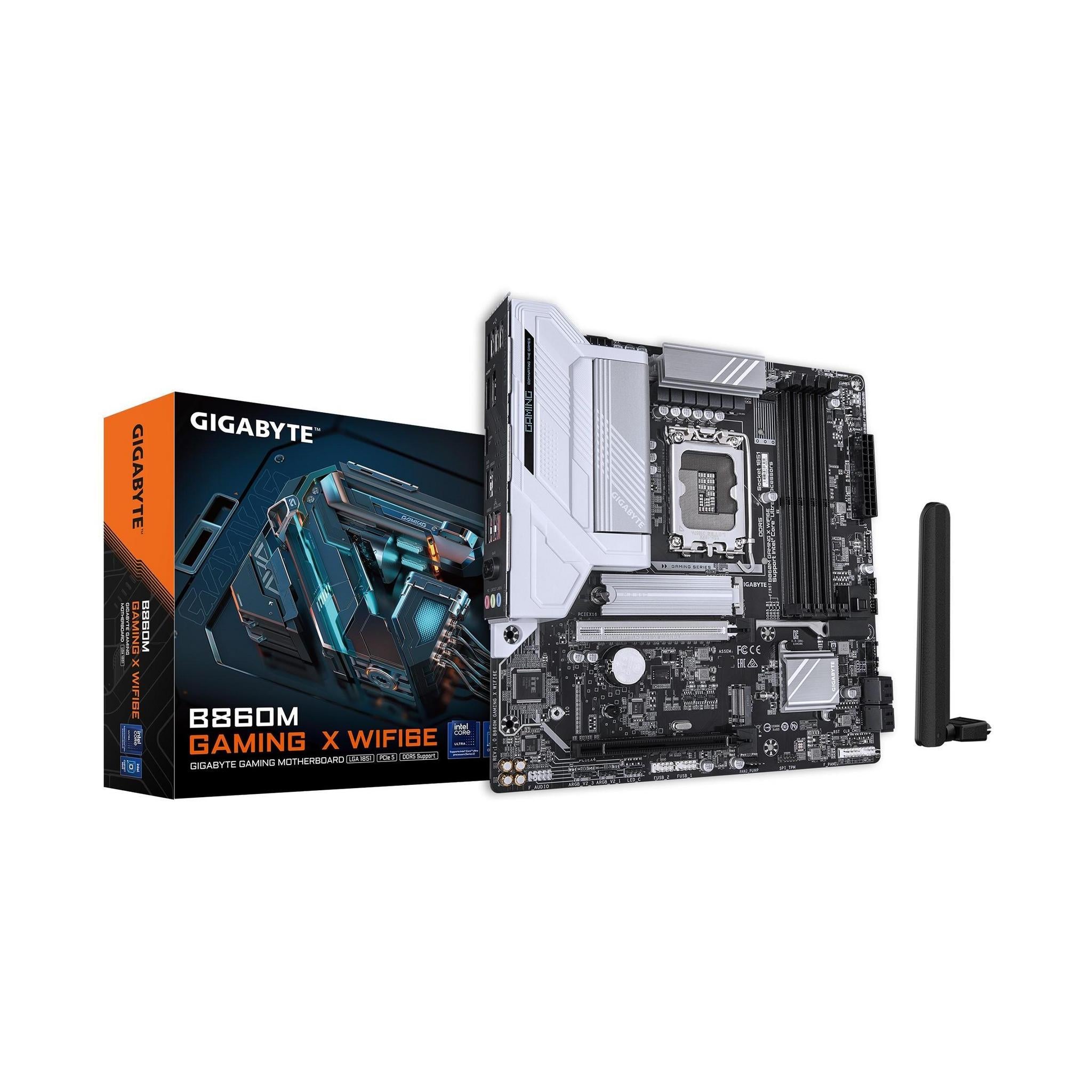

Gigabyte B860M GAMING X WiFi 6E 4x DDR5 2x M.2 Motherboard
Regular price
Sale price
$284.50
Regular price
$326.70
Tax included.
Shipping calculated at checkout.
Available in stock (72)
Couldn't load pickup availability
Specifications
Specifications
Dimensions
| Length | 276 mm |
|---|---|
| Width | 74 mm |
| Height | 270 mm |
Product Details
Product Details
The Gigabyte B860M GAMING X WiFi 6E is a compact motherboard designed for Intel Core Ultra processors with support for up to 256 GB of DDR5 memory in dual-channel architecture. It features:
Display
- 1x HDMI port supporting resolutions up to 4096x2160@60 Hz (HDCP 2.3)
- 1x USB4® Type-C® port with DisplayPort video output supporting resolutions up to 3840x2160@144 Hz
- 1x DisplayPort supporting resolutions up to 3840x2160@144 Hz
Performance
- Intel® B860 Express Chipset
- LGA1851 socket for Intel Core Ultra processors
- Dual-channel memory architecture supporting DDR5 up to 256 GB (64 GB single DIMM capacity)
Storage
- 2 x M.2 connectors: PCIe 5.0 x4/x2 and PCIe 4.0 x4/x2 SSD support
- 4 x SATA 6Gb/s connectors supporting RAID 0, 1, 5, and 10 configurations
Connectivity
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
- Intel® Wi-Fi 6E AX211 module
- Expansion slots: 1x PCIe x16 slot for graphics cards or NVMe SSDs, and 1x PCIe x16 slot supporting PCIe 4.0 at x4 speed
- USB ports: 1x USB4® Type-C®, 5x USB 3.2 Gen 1, and 9x USB 2.0/1.1 ports (including internal headers)
Warranty
Warranty
Manufacturer warranty 36 Months
This product is covered by the manufacturer's warranty. For claims, faults or returns, see our warranty & returns policy.
