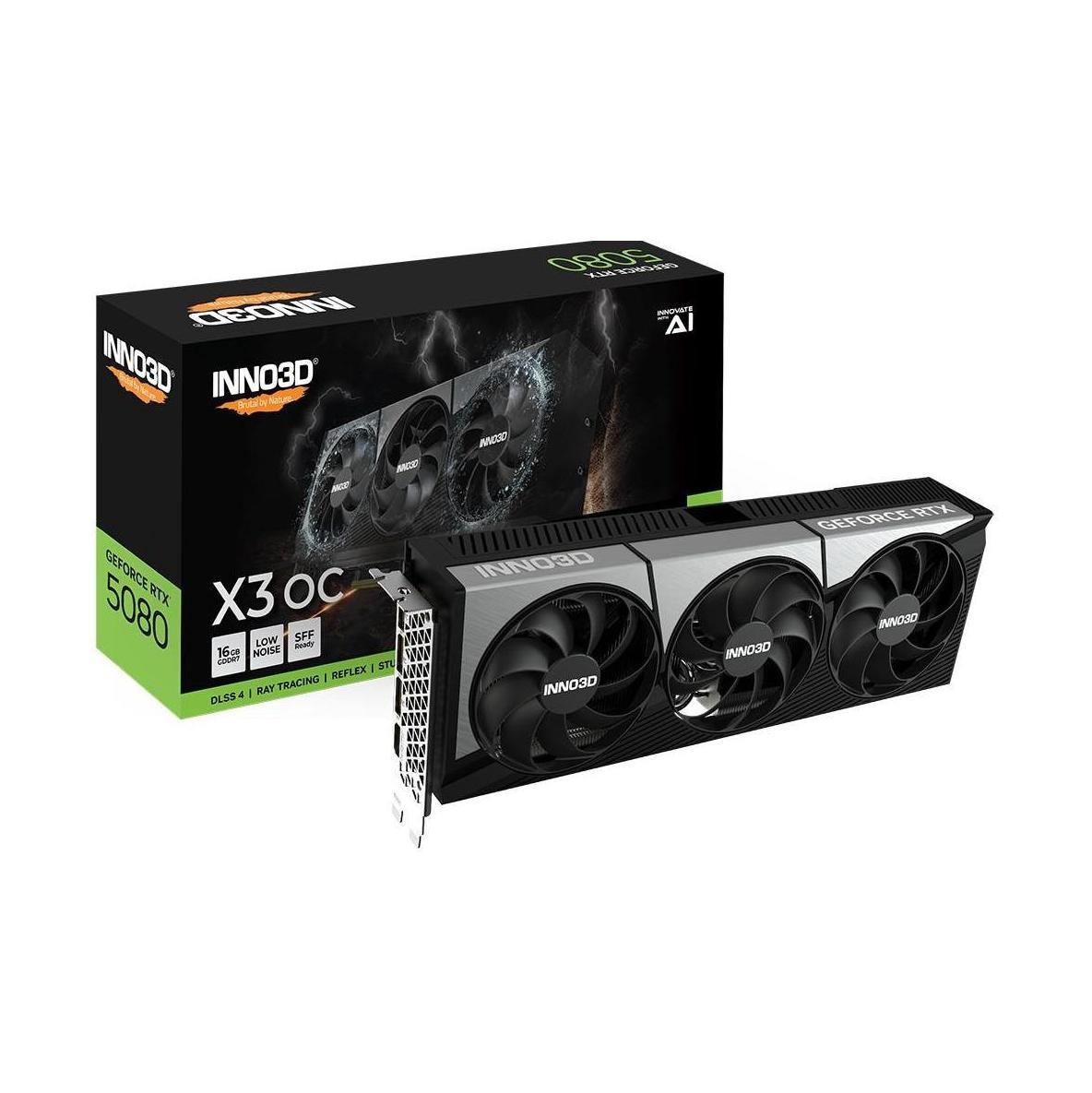

INNO3D GeForce RTX 5080 X3 OC 16GB GDDR7 2640MHz Graphics Card

The INNO3D nVidia GeForce RTX 5080 X3 OC is a high-performance graphics card designed for advanced gaming and professional workloads. It features 16GB of GDDR7 memory with a clock speed of 30Gbps, offering a bandwidth of 960 GB/sec.

Display

• Connectors: 3x DisplayPort 2.1b, 1x HDMI 2.1b
• Maximum Digital Resolution: 4K at 480Hz or 8K at 165Hz with DSC
• HDCP 2.3 Support

Performance

• CUDA Cores: 10752
• Boost Clock (MHz): 2640 MHz
• Base Clock (MHz): 2295 MHz
• Ray Tracing Cores: 4th Generation, 171 TFLOPS
• Tensor Cores: 5th Generation, 1801 AI TOPS

Memory

• Type: GDDR7
• Size: 16GB
• Memory Clock: 30Gbps
• Interface Width: 256-bit

Connectivity and Support

• NVIDIA Architecture: Blackwell
• Microsoft DirectX: 12 Ultimate
• Vulkan API: 1.4
• OpenGL: 4.6
• OS Certification: Windows 11 / 10, Linux, FreeBSD x86
• NVIDIA Highlights: Yes
• NVIDIA G-SYNC™-Ready: Yes
• Game Ready Drivers: Yes
• NVIDIA Studio Drivers: Yes
• NVIDIA GPU Boost™: Yes
• NVIDIA Encoder: 2x Ninth Generation
• NVIDIA Decoder: 2x Sixth Generation
• NVIDIA DLSS 4: Yes
• NVIDIA Ansel: Yes
• NVIDIA FreeStyle: Yes
• Microsoft ShadowPlay: Yes

Power and Thermal

• Minimum System Power Requirement (W): 850W
• Supplementary Power Connectors: 3x PCIe 8-pin cables (adapter in box) OR 1x 450 W or greater PCIe Gen 5 cable

Physical Dimensions

• Length: 300mm
• Height: 120mm
• Width: 50mm
