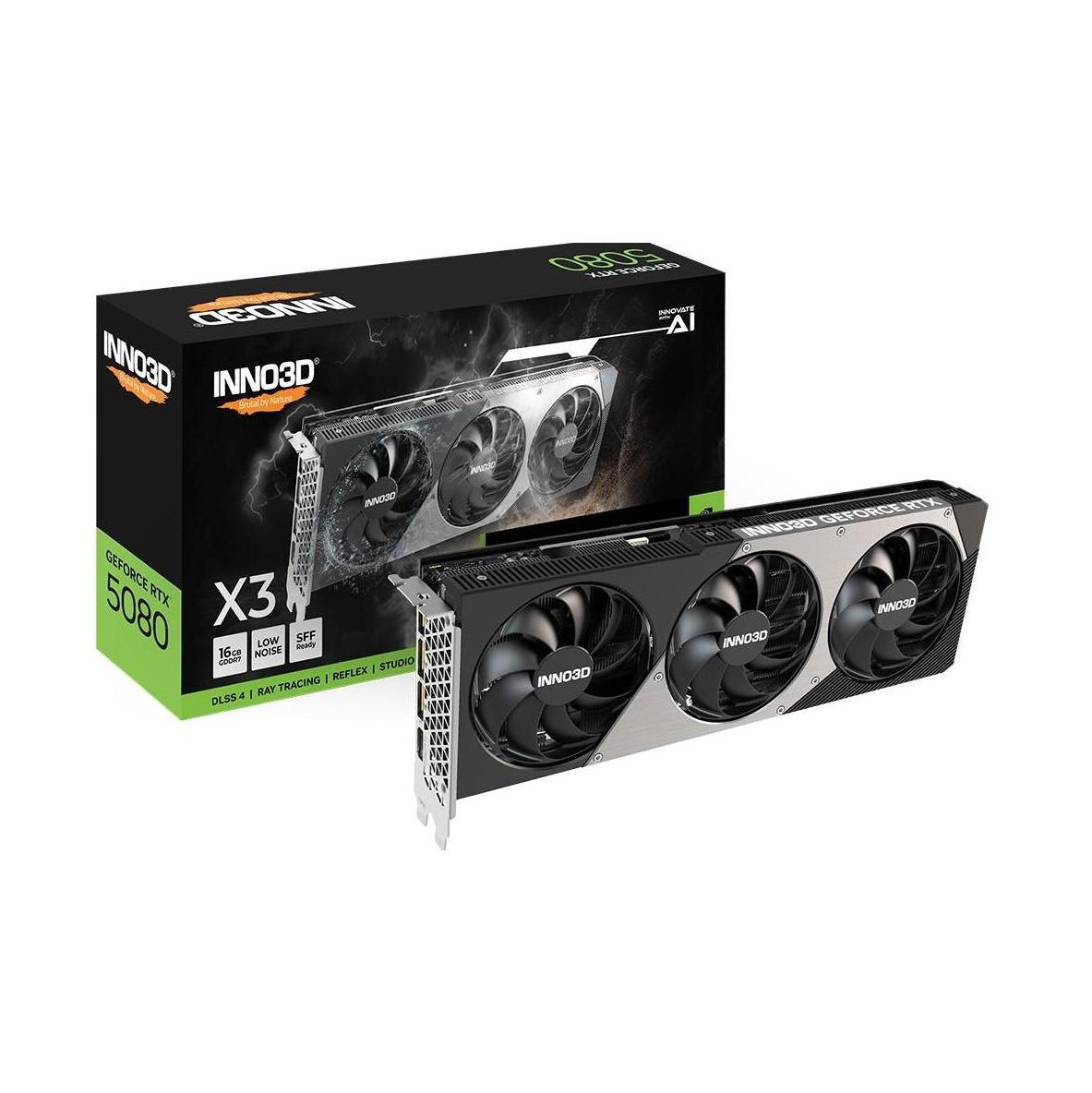

INNO3D GeForce RTX 5080 X3 OC 16GB GDDR7 2617MHz Graphics Card

The INNO3D nVidia GeForce RTX 5080 X3 OC is a high-performance graphics card featuring 16GB of GDDR7 memory with a boost clock speed of 2617MHz and a base clock speed of 2295MHz. It supports real-time ray tracing, offering exceptional visual fidelity for gaming and professional applications.

Display

• Maximum Digital Resolution: 4K at 480Hz or 8K at 165Hz with DSC
• HDCP 2.3 Support
• Connectors: 3x DisplayPort 2.1b, 1x HDMI 2.1b

Performance

• CUDA Cores: 10752
• Ray Tracing Cores: 4th Generation, 171 TFLOPS
• Tensor Cores: 5th Generation, 1801 AI TOPS
• Boost Clock (MHz): 2617MHz
• Base Clock (MHz): 2295MHz

Memory

• Memory Clock: 30Gbps
• Standard Memory Config: 16GB
• Memory Interface: GDDR7, 256-bit interface width
• Memory Bandwidth (GB/sec): 960 GB/sec

Connectivity and Support

• Thermal and Power Spec: Minimum System Power Requirement (W) - 850W, Supplementary Power Connectors - 3x PCIe 8-pin cables or 1x 450 W or greater PCIe Gen 5 cable
• NVIDIA Architecture: Blackwell
• Microsoft DirectX Support: 12 Ultimate
• Vulkan API: 1.4, OpenGL: 4.6
• OS Certification: Windows 11 / 10, Linux, FreeBSD x86

Features and Drivers

• NVIDIA DLSS 4 Support
• NVIDIA Ansel, NVIDIA FreeStyle, NVIDIA G-SYNC™-Ready, Game Ready Drivers, NVIDIA Studio Drivers, NVIDIA GPU Boost™
• Versions: Vulkan API 1.4, OpenGL 4.6, NVIDIA Encoder (2x Ninth Generation), NVIDIA Decoder (2x Sixth Generation)

Dimensions

• Length: 300mm
• Height: 116mm
• Width: 41mm
