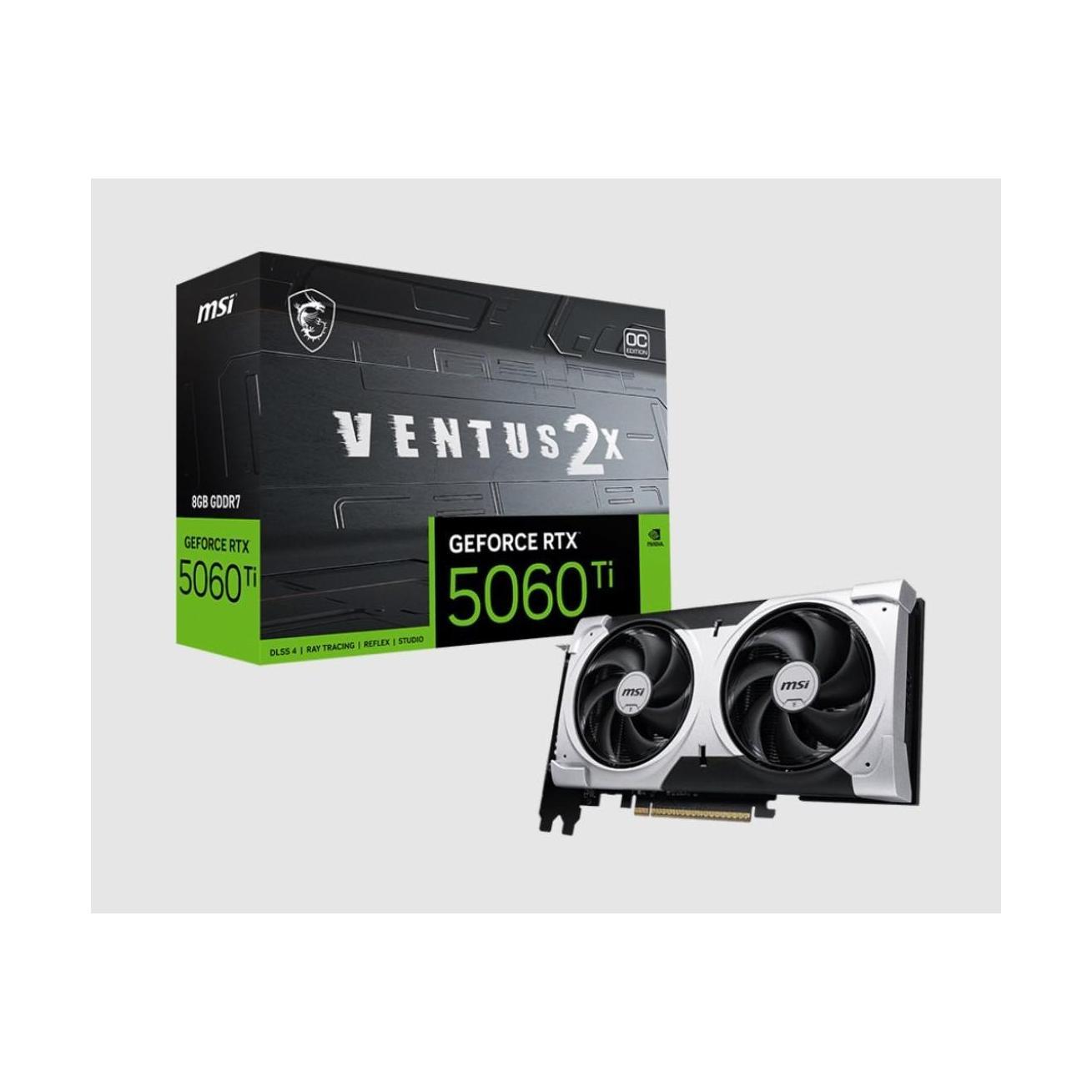

MSI GeForce RTX 5060 Ti 8G VENTUS 2X OC PLUS 8GB GDDR7 2602MHz Graphics Card

The MSI nVidia GeForce RTX™ 5060 Ti 8G VENTUS 2X OC PLUS is a high-performance graphics card designed for gaming and multimedia applications. It features an NVIDIA® GeForce RTX™ 5060 Ti GPU with 4608 CUDA cores, running at a boost clock of 2602 MHz.

Display

• DisplayPort x 3 (v2.1b)
• HDMI™ x 1 (As specified in HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR)

Performance

• Core Clocks: Extreme Performance - 2617 MHz (MSI Center), Boost - 2602 MHz
• CUDA® CORES: 4608 Units
• Memory Speed: 28 Gbps

Storage

• Memory: 8GB GDDR7
• Memory Bus: 128-bit

Connectivity

• Interface: PCI Express® Gen 5 x16 (uses x8)
• HDCP Support: Y
• G-SYNC® technology: Y
• Digital Maximum Resolution: 7680 x 4320

Features

• Dual Fan: Two fans and a huge heatsink ensure a cool and quiet experience.
• StormForce FAN: Seven fan blades, claw texturing, and a circular arc for optimal airflow with minimal noise.
• Reinforcing Backplate: Features a flow-through design that provides additional ventilation.
• Zero Frozr: Fans completely stop when temperatures are relatively low to eliminate all noise.
• DrMOS: Power stage solutions provide great efficiency with low power loss and enhanced voltage controls.
• Fuse: Additional fuses built into the custom PCB for additional safeguards against electrical damage.
• MSI Center: Exclusive software for monitoring, tweaking, and optimizing MSI products in real-time.
• Afterburner: Widely used graphics card overclocking software.

Power Consumption & Dimensions

• Power consumption: 180 W
• Power connectors: 8-pin x1
• Recommended PSU: 600 W
• Card Dimension (mm): 227 x 126 x 41 mm
• Weight (Card / Package): 573 g / 834 g

Compatibility & Support

• DirectX Version Support: 12 Ultimate
• OpenGL Version Support: 4.6
• Maximum Displays: 4
