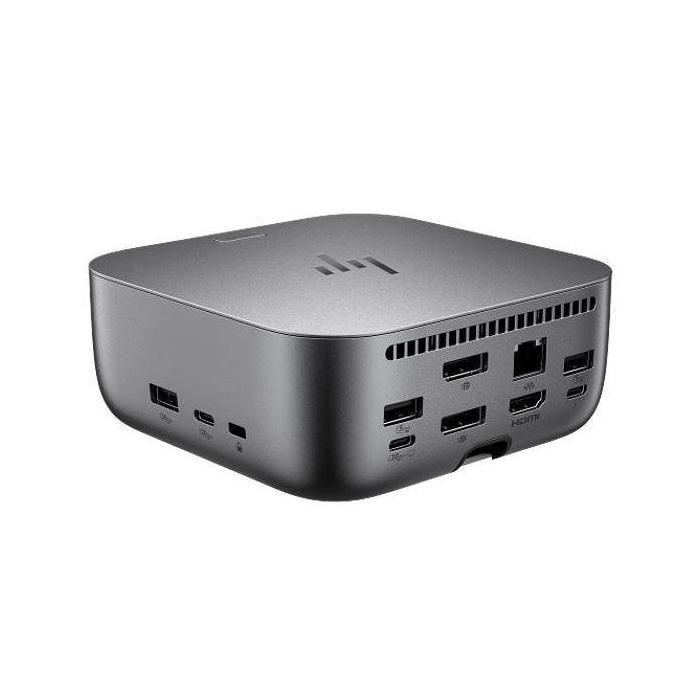

HP Dock G6 Thunderbolt 4 Ultra Docking Station 280W 4xDisplays 4xUSB-A 2xUSB-C 1xTB4 2.5GbE RJ45

The HP Dock G6 Thunderbolt 4 Ultra Docking Station is designed to enhance productivity with its versatile connectivity options and robust performance capabilities.

Display

• Supports up to four external displays or three external displays plus one PC display
• Displays supported: Quad monitor setup
• Maximum resolution: Up to 8K
• Refresh rate (maximum): 360 Hz

Performance and Connectivity

• Connection type: Thunderbolt™ 4 and 4.5 mm power barrel
• Ports:
  • 1x Thunderbolt™ 4 with USB Type-C® (40Gbps signaling rate)
  • 1x USB Type-C® (10Gbps signaling rate, USB Power Delivery, DisplayPort™ 1.4)
  • 2x USB Type-A (5Gbps signaling rate for charging)
  • 1x HDMI 2.1
  • 2x DisplayPort™ 1.4
  • 1x RJ-45 (2.5 GbE)
• Power delivery profiles: 12V/5A, 15V/5A, 20V/5A, 5V/3A, 9V/3A
• Maximum power to host: Up to 280 W via 4.5 mm power barrel or up to 180 W via Thunderbolt™ 4 cable (both HP and non-HP host devices that support Power Delivery 3.1)
• Certified collaboration software: Intel® Thunderbolt™ 4 Compatibility

Compatibility

• Compatible operating systems: Windows 10, Windows 11, macOS, Linux, ThinPro, ChromeOS
• Tested and supported on select HP commercial PCs. For notebook compatibility, visit HP's website.
• Compatibility with select third-party systems like Dell, Lenovo, and Apple.

Management Features

• HP CMSL; Disconnected Firmware updates; eTag; PXE Boot; Wake on LAN (from Off, Sleep or Hibernation states); MAC address pass-through (from On, Off, Sleep or Hibernation states); LAN/WLAN switching; Disable LAN; Event messaging
• Intel® vPro® Technology (wired)

Physical Specifications

• Dimensions: 12.1 x 12.1 x 4.95 cm
• Weight: Not specified
• Cable length: 1 m Thunderbolt™ 4 cable and a 4.5 mm power barrel to connect to host system

Environmental Specifications

• Operating temperature range: 32 to 95°F (0 to 35°C)
• Non-operating temperature range: -20 to 60°C
• Operating humidity range: 10 to 90% non-condensing
• Non-operating humidity range: 5 to 95% non-condensing
• Operating altitude: -15 to 3,048 m

Packaging and Shipping Information

• Package dimensions (W x D x H): 39.6 x 17.1 x 9.5 cm
• Package weight: 1.14 kg
• Certified collaboration software: Intel® Thunderbolt™ 4 Compatibility
• Pallet information:
  • Air: 6 pallets (layers), 28 products per layer, total of 168 products per pallet
  • Ocean: 14 pallets (layers), 28 products per layer, total of 392 products per pallet
