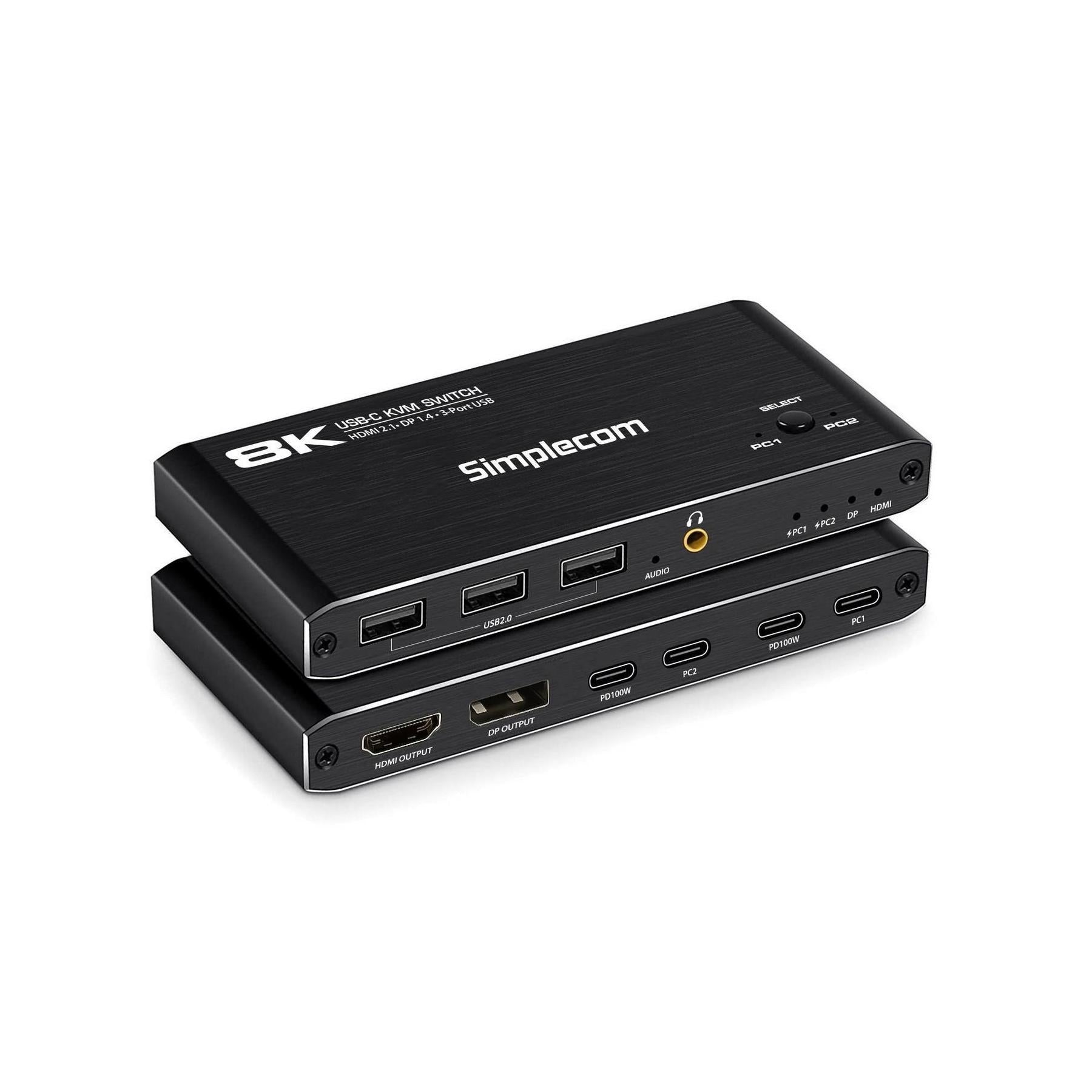

Simplecom KM470 2-Port USB-C KVM Switch HDMI 2.1 DP Docking Station

The Simplecom KM470 is a versatile 2-port USB-C KVM switch and docking station designed for seamless connectivity between two laptops or tablets. It supports HDMI 2.1 and DisplayPort 1.4, enabling video resolutions up to 8K.

Display

• HDMI 2.1 output port (up to 48Gbps)
• DP 1.4 output port (up to 32.4Gbps)
• Supports video resolutions up to 8K@60Hz and 4K@144Hz
• Backward compatible with HDMI 2.0 and HDMI 1.4

Performance

• USB-C KVM switch for sharing external displays and USB devices between two laptops or tablets
• Self-powered via connected laptop, no external power required
• Plug and play with hot swappable functionality
• Durable aluminium alloy casing for efficient heat dissipation

Storage

N/A

Connectivity

• USB-C upstream ports x2 (connect to PC1 and PC2)
• USB 2.0 downstream ports x3 for connecting peripherals
• PD charging ports x2, each up to 100W
• 3.5mm audio jack for headphones or speakers

Compatibility

• Operating systems: Windows, macOS, Chrome OS
• Laptops with full functional USB-C port supporting DP Alt Mode (DisplayPort Alternate Mode)
• Laptops with Thunderbolt 3, Thunderbolt 4, or USB4 ports

Dimensions and Weight

• Dimension: 13 x 6.3 x 1.6 cm
• Weight: 109g

Note: Package includes 1x USB-C KVM Switch and 2x USB-C to USB-C cables.
