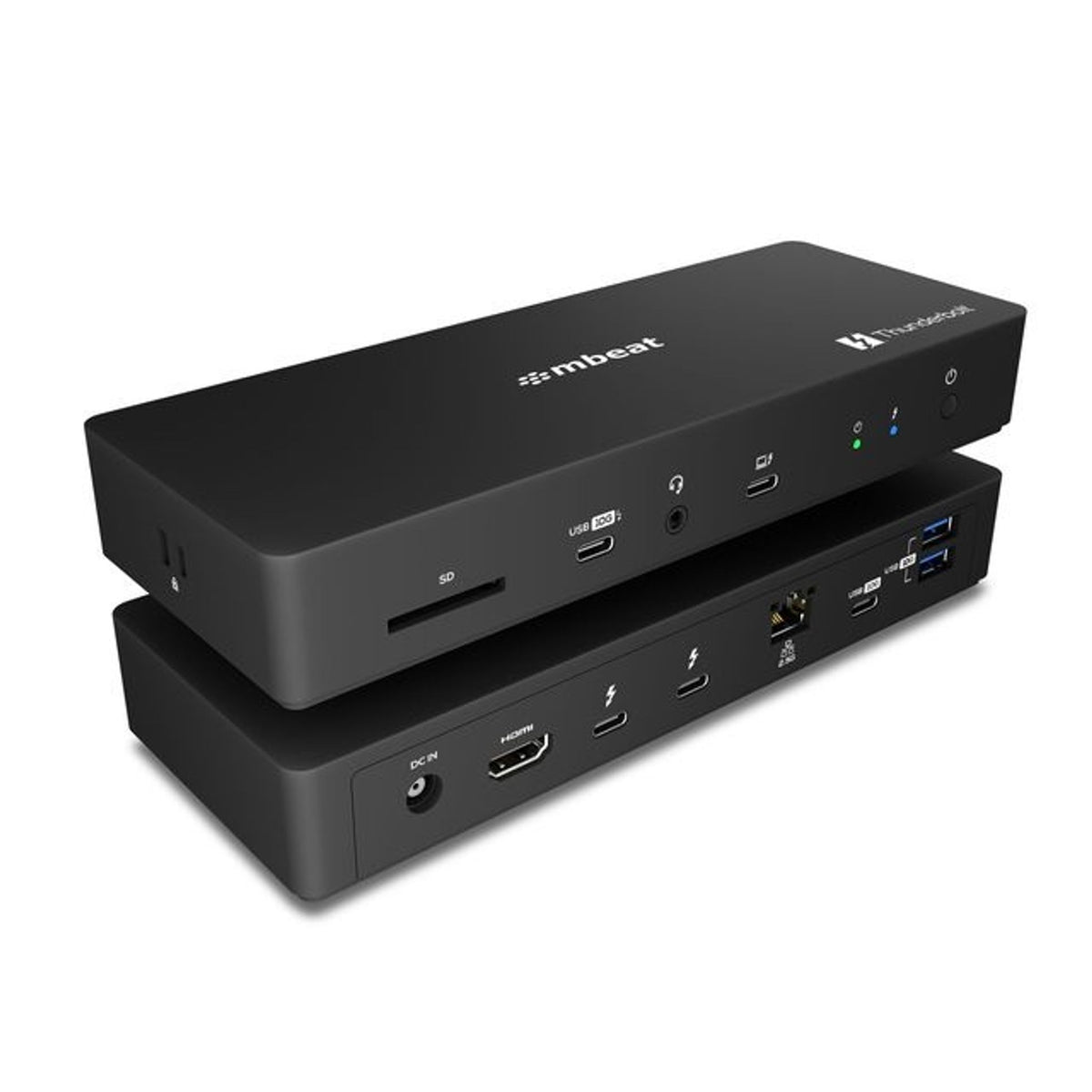

MBEAT Thunderbolt 4 Docking Station 40Gbps Dual 4K 96W PD 2.5GbE HDMI 12Ports

The mbeat TB48 is a high-performance Thunderbolt™ 4 docking station designed for modern professional workflows. It delivers 40Gbps bandwidth and supports dual 4K displays or single 8K display via HDMI 2.1. The dock also includes up to 96W USB-C PD 3.0 laptop charging, 2.5GbE networking, and a total of 12 essential ports for plug-and-play connectivity without the need for drivers.

Display

• Dual 4K@60Hz extended desktop or single 8K@30Hz via HDMI 2.1

Performance and Connectivity

• Thunderbolt™ 4 USB4 certified — full 40Gbps bandwidth
• Up to 96W USB-C PD 3.0 laptop charging
• 2.5GbE LAN
• Hi-Res 3.5mm audio

Ports and Interfaces

• 1 × Thunderbolt™ 4 / USB-C port (upstream, front, supports up to 96W PD, 40Gbps)
• 2 × Thunderbolt™ 4 / USB4 ports (downstream, rear, data or video output)
• 2 × USB-A 10Gbps (rear, 5V/0.9A)
• 1 × USB-C 10Gbps (rear, 5V/1.5A)
• 1 × USB-C 10Gbps (front, 5V/3A)
• 1 × HDMI 2.1
• 1 × RJ45 Ethernet port (rear, 10/100/1000/2500Mbps)
• 1 × SD 4.0 card reader (front, up to 985MB/s)
• Hi-Res 3.5mm headset jack (front, 24bit / 96Hz)

Power and Security

• K-Lock slot for physical anti-theft security
• LED indicators: Power LED (green), Thunderbolt™ 4 LED (blue)
• DC power input: 150W (20V/7.5A)
• Included components: 150W DC power adapter, USB-C / Thunderbolt™ cable (100cm)

Compatibility and Requirements

• Supported operating systems: Windows® 10, macOS Big Sur 11.2 or later
• Dual extended display compatibility depends on the MacBook’s processor

Product Dimensions and Weight

• Dimensions: 19.9cm × 7.5cm × 3.1cm
• Weight: 0.26kg

Package Dimensions and Weight

• Dimensions: 29.5cm × 14.5cm × 9cm
• Weight: 1.11kg

Package Contents

• MBeat Thunderbolt™ 4 Docking Station
• 150W DC Power Adapter (included)
• USB-C / Thunderbolt™ Cable (100cm)
