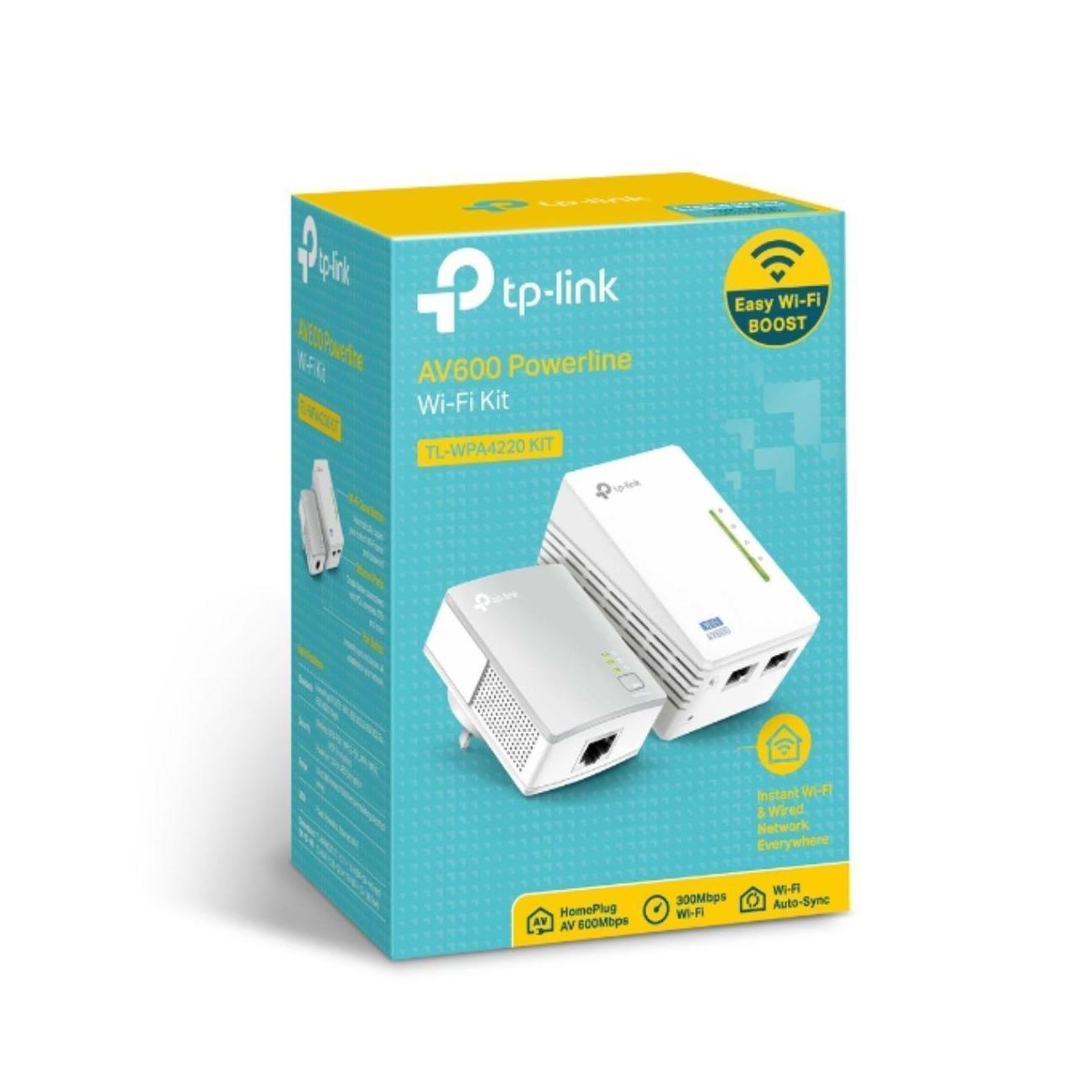

TP-Link TL-WPA4220 KIT AV600 Wi-Fi Powerline Extender 300Mbps Wireless 2x100Mbps LAN 300m Range

The TP-Link TL-WPA4220 KIT AV600 Wi-Fi Powerline Extender is designed to extend your home network coverage with a high-speed connection of up to 300Mbps over electrical wiring and wireless transmission. It features two 10/100Mbps Ethernet ports for wired connections, making it ideal for streaming HD video and online gaming without lag.

Performance

• Data Transmission Speed: Up to 600Mbps (HomePlug AV standard)
• Wi-Fi Signal Rate: Up to 300Mbps (11n), up to 54Mbps (11g), and up to 11Mbps (11b)

Connectivity

• Frequency Band: 2.4-2.4835GHz
• Wireless Security: WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Powerline Security: 128-bit AES encryption

HARDWARE FEATURES

• Plug Type: AU Standards and Protocols (HomePlug AV, IEEE802.3, IEEE802.3u, IEEE802.11b/g/n)
• Interface: 2 x 10/100Mbps Ethernet Port
• Buttons: Pair, Reset, Wi-Fi/Wi-Fi Clone
• Power Consumption: Maximum 7.608W (220V/50Hz), Typical 7.216W (220V/50Hz), Standby 4.610W (220V/50Hz)
• LED Indicators: PWR, PLC, ETH, Wi-Fi/Wi-Fi Clone
• Dimensions: TL-WPA4220 - 2.1 x 1.6 x 3.7 in. (54 × 40 × 94 mm), TL-PA411 - 2.0 × 1.1 × 2.6 in. (52 × 28.5 × 65 mm)
• Range: Up to 300 meters over electrical circuit

WIRELESS FEATURES

• Reception Sensitivity: Varies by distance, from -90dBm@8% PER at 1M range to -68dBm@10% PER at 270M range
• Wireless Security: WEP (64/128-bit), WPA/WPA2, WPA-PSK/WPA2-PSK
• Advanced Functions: Enable/disable wireless radio, WMM, Wireless Statistics
• Transmission Power: CE:<20dBm (2.4GHz)

Certification and Compatibility

• Certifications: CE, RoHS
• System Requirements: Windows 2000/XP/2003/Vista, Windows 7/8, Mac, Linux
• Package Contents: AV600 Powerline Wi-Fi Kit (TL-WPA4220 TL-PA411), Ethernet Cable × 2, Quick Installation Guide
